Dormakaba® Model BTS75VBF Adjustable Spring Power Size 1 to 4, 90º Hold Open Floor Mounted Door Closer Body in Cement Case
Dormakaba® Model BTS75VBF Adjustable Spring Power Size 1 to 4, 90º Hold Open Floor Mounted Door Closer Body in Cement Case
Regular price
$1,229.34 CAD
Regular price
Sale price
$1,229.34 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BTS75VBF90H0
Shipping Weight: 12.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 12.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Americans with | Disabilities Act Yes |

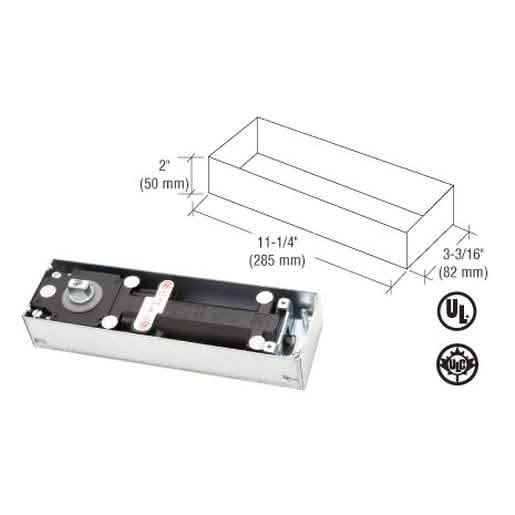

| Body Height | 2 |
| Body Length | 11-1/4 |
| Body Width | 3-3/16 |
| Brand | Dormakaba |
| Closer | Body With Box Yes |
| Closer | Type Floor Closer |
| Handing | Double Acting |
| Hold Open | 90° |
| Independent | Closing and Latching Valves Yes |
| Interchangeable | Spindles Yes |
| Interior | Or Exterior Doors Yes |
| Maximum Door Width - Exterior | 42 Inches |
| Maximum Door Width - Interior | 42 Inches |
| Maximum Weight Center Hung | 260 Pounds |
| Non | Stocked Parts and Acessories Special Order Yes |
| Recommended | Door Type Aluminum, Hollow Metal |
| Series BTS | 75V |
| Similar BTS | 802, J993HOD, J990NHOD, J904HOD |
| Spring Size | 8-1/2 |
| U | L Listed Yes |
Overview
The Dormakaba® BT75V Series Floor Mounted Door Closers are designed for versatile installation, providing a compact solution for spaces where larger closers are not feasible.
These door closers accommodate doors up to 42 inches wide and support weights up to 260 lbs.
With a 25-year limited warranty, they are ANSI A156.4 Grade 1, UL, and CUL listed, offering reliability and compliance with industry standards.
Available in both 90º or 105º hold open options and no hold open models, they are adaptable for single or double acting, center-hung, or offset applications.
Note: Closer body only; spindles are sold separately and must be chosen based on door height and type.
These door closers accommodate doors up to 42 inches wide and support weights up to 260 lbs.
With a 25-year limited warranty, they are ANSI A156.4 Grade 1, UL, and CUL listed, offering reliability and compliance with industry standards.
Available in both 90º or 105º hold open options and no hold open models, they are adaptable for single or double acting, center-hung, or offset applications.
Note: Closer body only; spindles are sold separately and must be chosen based on door height and type.
