Dormakaba® Model BTS80 Size 3 (EN6) Floor Mounted Door Closer Body in Cement Case
Dormakaba® Model BTS80 Size 3 (EN6) Floor Mounted Door Closer Body in Cement Case
Regular price
$1,272.85 CAD
Regular price
Sale price
$1,272.85 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BTS803
Shipping Weight: 14.3 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 14.3 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description

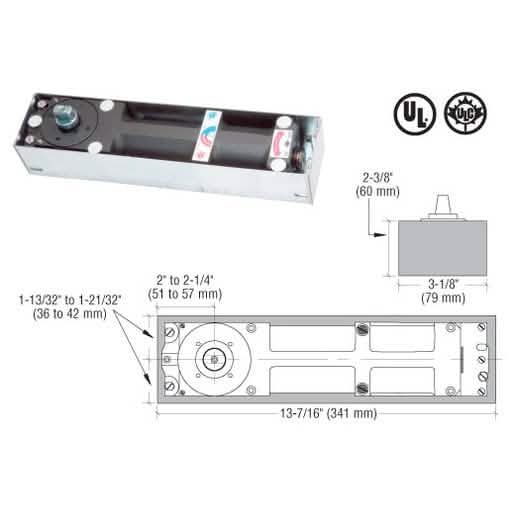

| Body Height | 2-3/8 |
| Body Length | 13-7/16 |
| Body Width | 3-1/8 |
| Brand | Dormakaba |
| Closer | Body With Box Yes |
| Closer | Type Floor Closer |
| Door Opening | 180 |
| Handing | Double Acting |
| Independent | Closing and Latching Valves Yes |
| Interchangeable | Spindles Yes |
| Interior | Or Exterior Doors Yes |
| Maximum Door Width - Exterior | 48 Inches |
| Maximum Door Width - Interior | 54 Inches |
| Maximum Weight Center Hung | 660 Pounds |
| Non | Stocked Parts and Acessories Special Order Yes |
| Recommended | Door Type Aluminum, Hollow Metal |
| Selective | Hold Open Yes |
| Selective | Multi-Point Hold Open Positions Yes |
| Series BTS | 80 |
| Similar J | 990NHOD, J993HOD, J994HOD, J995BCD, |
| Spring Size | 3 |
| U | L Listed Yes |
Overview
The Dormakaba® BTS80 Series Floor Mounted Door Closers are designed for versatility and adaptability, making them ideal for a wide range of installations.
With a 660 lb.
(299 kg) capacity and 54" (1.37 m) doors, these door closers feature interchangeable spindle heights and a selective multi-point hold open position, ensuring compatibility with various applications.
The compact design is perfect for spaces where larger door closers are not feasible, and the variable delayed action enhances functionality.
Covered by a 25-year limited warranty and UL listed, the Dormakaba® BTS80 Series is a reliable choice for your door-closing needs.
Accessories such as cover plates, pivots, and arms are available to tailor the closer to your specific requirements.
Note: This door closer has a maximum opening of 180 degrees, and an auxiliary stop is needed for angles less than 180 degrees.
With a 660 lb.
(299 kg) capacity and 54" (1.37 m) doors, these door closers feature interchangeable spindle heights and a selective multi-point hold open position, ensuring compatibility with various applications.
The compact design is perfect for spaces where larger door closers are not feasible, and the variable delayed action enhances functionality.
Covered by a 25-year limited warranty and UL listed, the Dormakaba® BTS80 Series is a reliable choice for your door-closing needs.
Accessories such as cover plates, pivots, and arms are available to tailor the closer to your specific requirements.
Note: This door closer has a maximum opening of 180 degrees, and an auxiliary stop is needed for angles less than 180 degrees.
Specifications
Installation Instructions
