Dormakaba Overhead Concealed Door Closer 105° No Hold Open ADA 8.5 lb
Dormakaba Overhead Concealed Door Closer 105° No Hold Open ADA 8.5 lb
Regular price
$533.97 CAD
Regular price
Sale price
$533.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RTS88105XNHBFE
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-1/2
Body Length
11-1/2
Body Width
3-9/16
Brand
Dormakaba®
Closer Type
Overhead Concealed
Door Height
96
Door Opening
105
Handing
Double Acting
Maximum Door Weight
250
Maximum Door Width - Exterior
36 Inches
Maximum Door Width - Interior
36 Inches
No Hold Open
Yes
Recommended Door Type
Aluminum, Hollow Metal
Spindle
3/4
Spring Size
8.5
UL Listed
Yes
Overview
- Extended spindle for use with patch fittings
- Standard mounting clips included
- Recommended for doors up to 36" wide x 96" high
- Maximum door weight: 250 lbs
- ADA barrier-free: 8.5 lbs for exterior doors

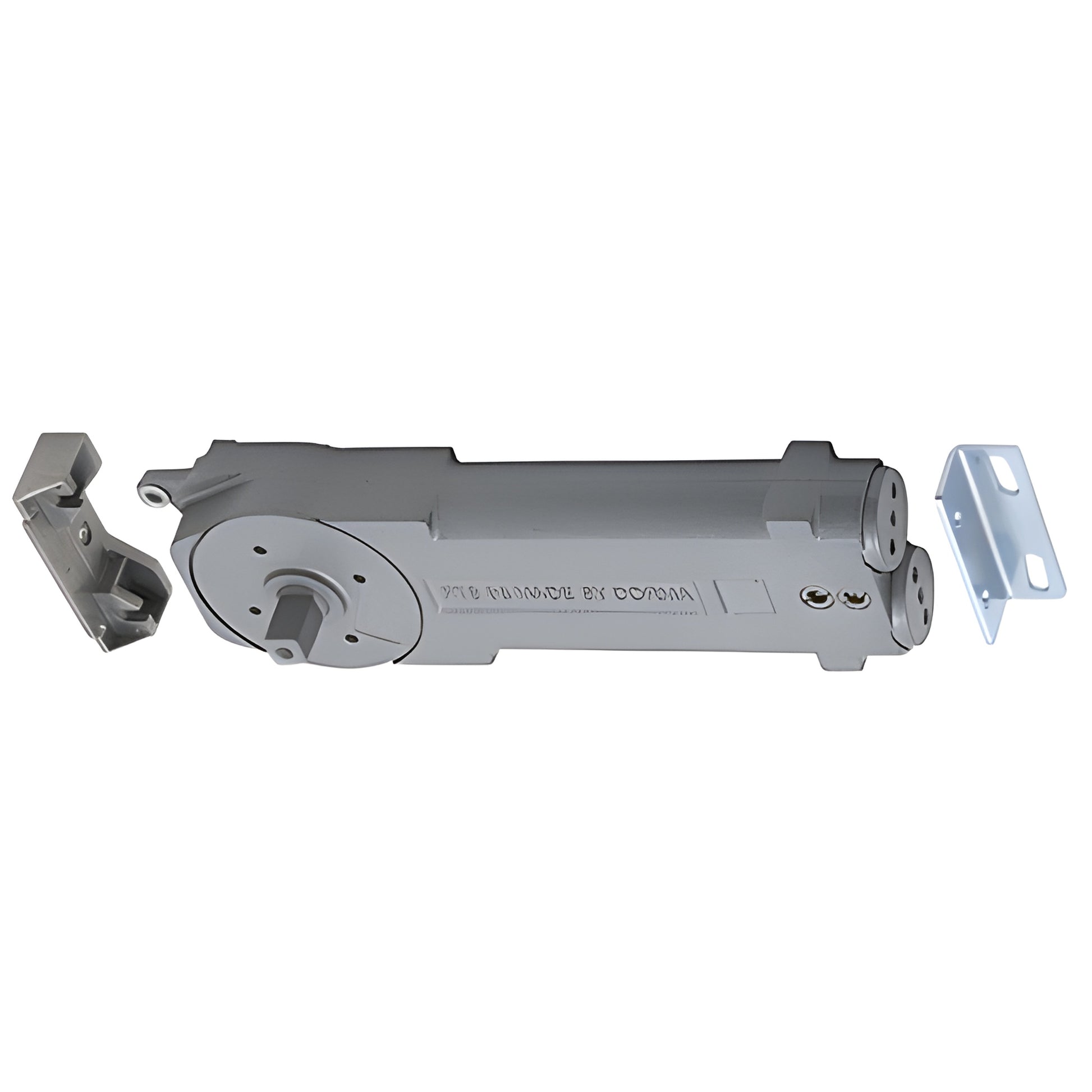

The Dormakaba® Overhead Concealed Closer 105 Degree No Hold Open (SKU: RTS88105XNHBFE) is an overhead concealed closer engineered for exterior glass and metal doors requiring an ADA barrier-free 8.5 lb opening force. Key differentiators include an extended spindle for patch fitting installations, dual-action capability, and independent non-critical valves that let you adjust closing and latching speed separately. Each closer body ships with mounting clips, templates, and installation instructions for faster fitting.
Product Warning:
Although Dorma® RTS BFI/BFE Series closers comply with ADA specified opening forces, they may not provide adequate spring power to control and close the door under all site conditions or with larger/heavier door configurations. Verify suitability for your door size and installation before ordering.
Ready to specify RTS88105XNHBFE for your exterior ADA-compliant door? Contact CRL Customer Service or add to cart to order.
