Dormakaba BTS75V Floor-Mount Door Closer, Adj 1-4 175° Cement Case
Dormakaba BTS75V Floor-Mount Door Closer, Adj 1-4 175° Cement Case
Regular price
$1,299.41 CAD
Regular price
Sale price
$1,299.41 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# BTS75VNH0
Shipping Weight: 12.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

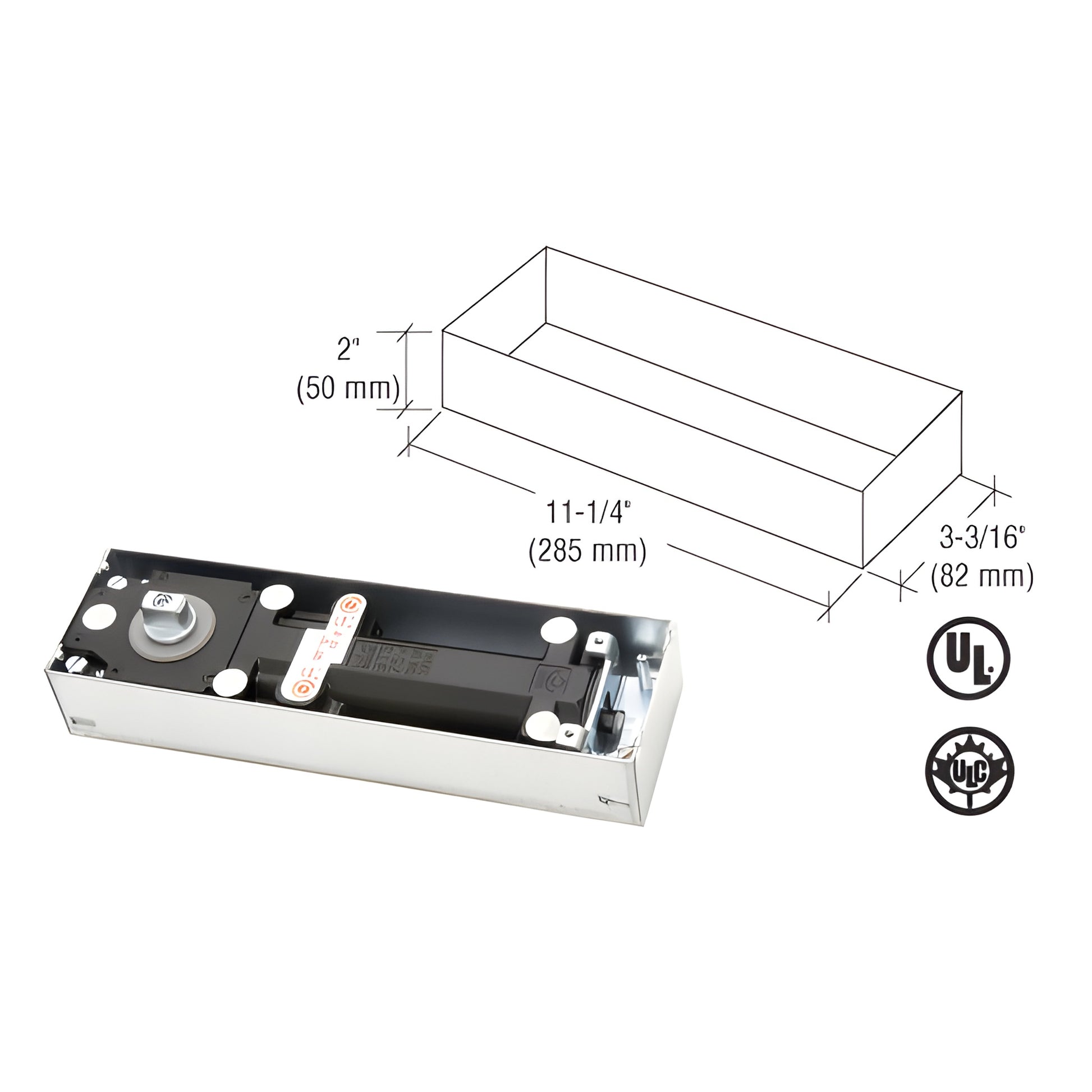

Body Height
2
Body Length
11-1/4
Body Width
3-1/6
Brand
Dormakaba
Closer Body With Box
Yes
Closer Type
Floor Closer
Handing
Double Acting
Independent Closing and Latching Valves
Yes
Interchangeable Spindles
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
42 Inches
Maximum Door Width - Interior
42 Inches
Maximum Weight Center Hung
260
No Hold Open
175°
Non Stocked Parts and Acessories Special Order
Yes
Recommended Door Type
Aluminum, Hollow Metal
Series
BTS75V
Similar
J990NHOD, J993HOD, J994HOD, J995BCD,
Spring Size
1.2.3.4
UL Listed
Yes
Overview
- Adjustable spring power: Size 1 to 4
- Fits doors up to 42" (1067 mm) wide; supports up to 260 lb door weight
- 25‑year limited warranty
- ANSI A156.4 Grade 1 — UL and CUL listed for commercial applications
The Dormakaba® BT75V Series Floor Mounted Door Closers (SKU: BTS75VNH0) are compact, floor-mounted door closers engineered for commercial and heavy-duty residential openings. Designed to install where larger closers won't fit, the universal non-handed body uses interchangeable spindles so a single mechanism serves single- or double-acting doors, center-hung or offset applications, and various threshold heights and floor coverings. Available options: 90° or 105° hold-open, or no hold-open full swing to 175°. Accessories available: cover plates, pivots, center-hung and offset arms.
Product Warning:
Closer body only — spindle not included. Compatible spindles: CRL9040S or CRL9050S.
Order BTS75VNH0 today — contact CRL for spindle selection and shipping details.
