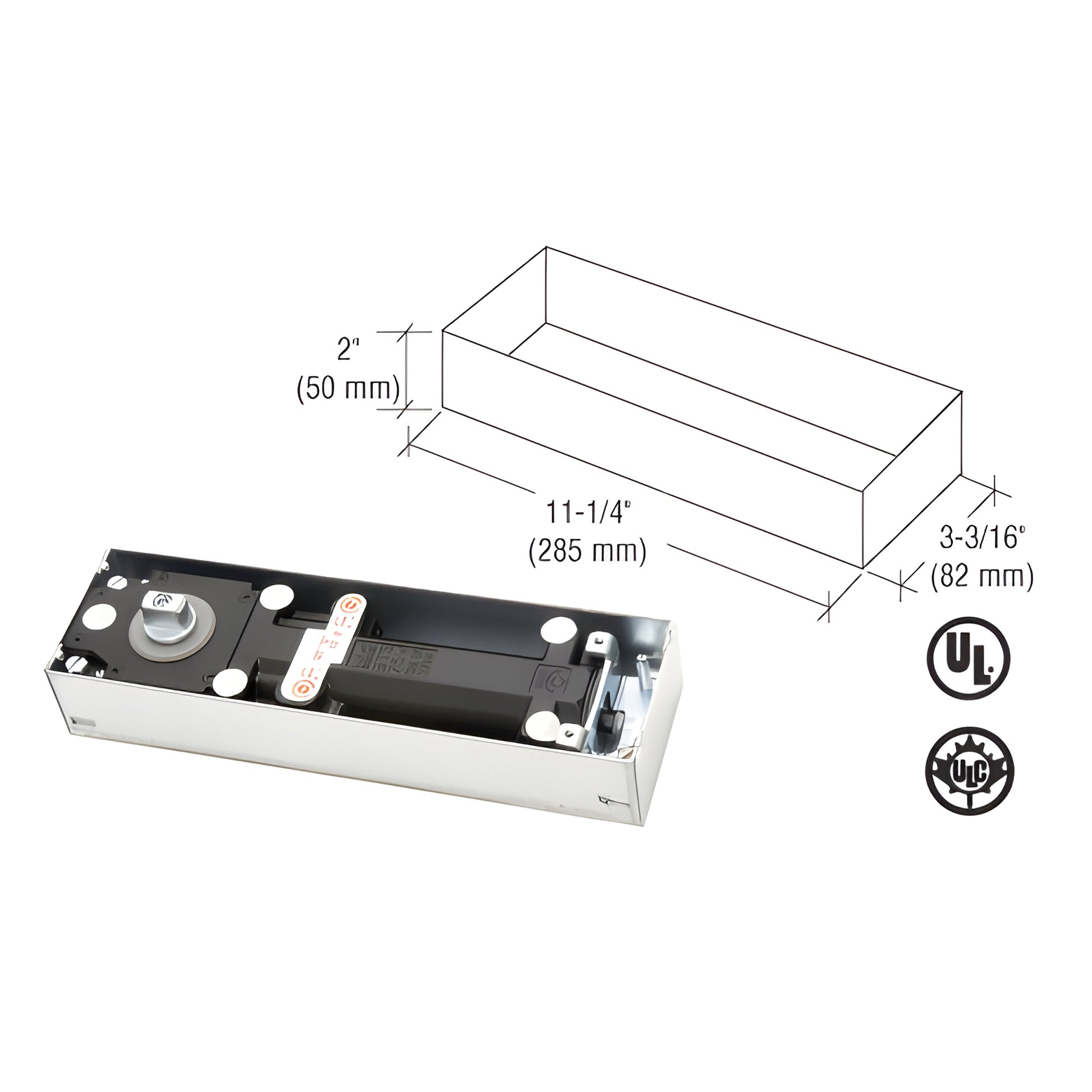

Dormakaba® Model BTS75VBF Adjustable Spring Power Size 1 to 4, 175º No Hold Open Floor Mounted Door Closer Body in Cement Case
Item # BTS75VBFNH0
$1,185.08
CAD
Overview
| SKU | BTS75VBFNH0 |
|---|---|
| Sold As | 1 Each |
| Americans with Disabilities Act | Yes |
| Body Height | 2 |
| Body Length | 11-1/4 |
| Body Width | 3-3/16 |
| Brand | Dormakaba |
| Closer Body With Box | Yes |
| Closer Type | Floor Closer |
| Handing | Double Acting |
| Independent Closing and Latching Valves | Yes |
| Interchangeable Spindles | Yes |
| Interior Or Exterior Doors | Yes |
| Maximum Door Width - Exterior | 42 Inches |
| Maximum Door Width - Interior | 42 Inches |
| Maximum Weight Center Hung | 260 Pounds |
| No Hold Open | 175° |
| Non Stocked Parts and Acessories Special Order | Yes |
| Recommended Door Type | Aluminum, Hollow Metal |
| Series | BTS75V |
| Similar | BTS80BF, J994HOD, J990NHOD |
| Spring Size | 1.2.3.4 |
| UL Listed | Yes |
Description
- ADA BF Barrier Free, Adjustable Spring Power Size 1 to 4
- Accommodates Doors Up to 42" (1067 mm) Wide and Weight up to 260 Lbs.
- 25 Year Limited Warranty
- ANSI A156.4 Grade 1, UL and CUL Listed
The Dormakaba® BT75V Series Floor Mounted Door Closers offer adaptability to almost any installation. The Dormakaba® Closer's compact body permits its use where a larger door closer would be prohibitive. The universal, non-handed design uses a system of interchangeable spindles, and will allow one basic door closer mechanism to be used for either single or double acting, center-hung or offset applications while accommodating virtually any floor covering or threshold height. Available in 90º or 105º hold open and no hold open full swing to 175º models. Accessories such as cover plates, pivots, center-hung and offset arms are also available.
Product Warning:
Closer Body Only. Spindle is not included. Spindles are available to accommodate different heights and types: CRL9040S, or CRL9050S.
Although Dorma® BTS BF Series Closers comply with ADA specified opening forces where door without closer attached is 1 lb. opening force, they may not provide adequate spring power to control and close the door due to varying site conditions and door size.
