Dormakaba® Model BTS80 8.5 Lb. Floor Mounted Door Closer Body in Cement Case
Item # BTS80BF
$1,271.79
CAD
Overview
| SKU | BTS80BF |
|---|---|
| Sold As | 1 Each |
| Americans with Disabilities Act | Yes |

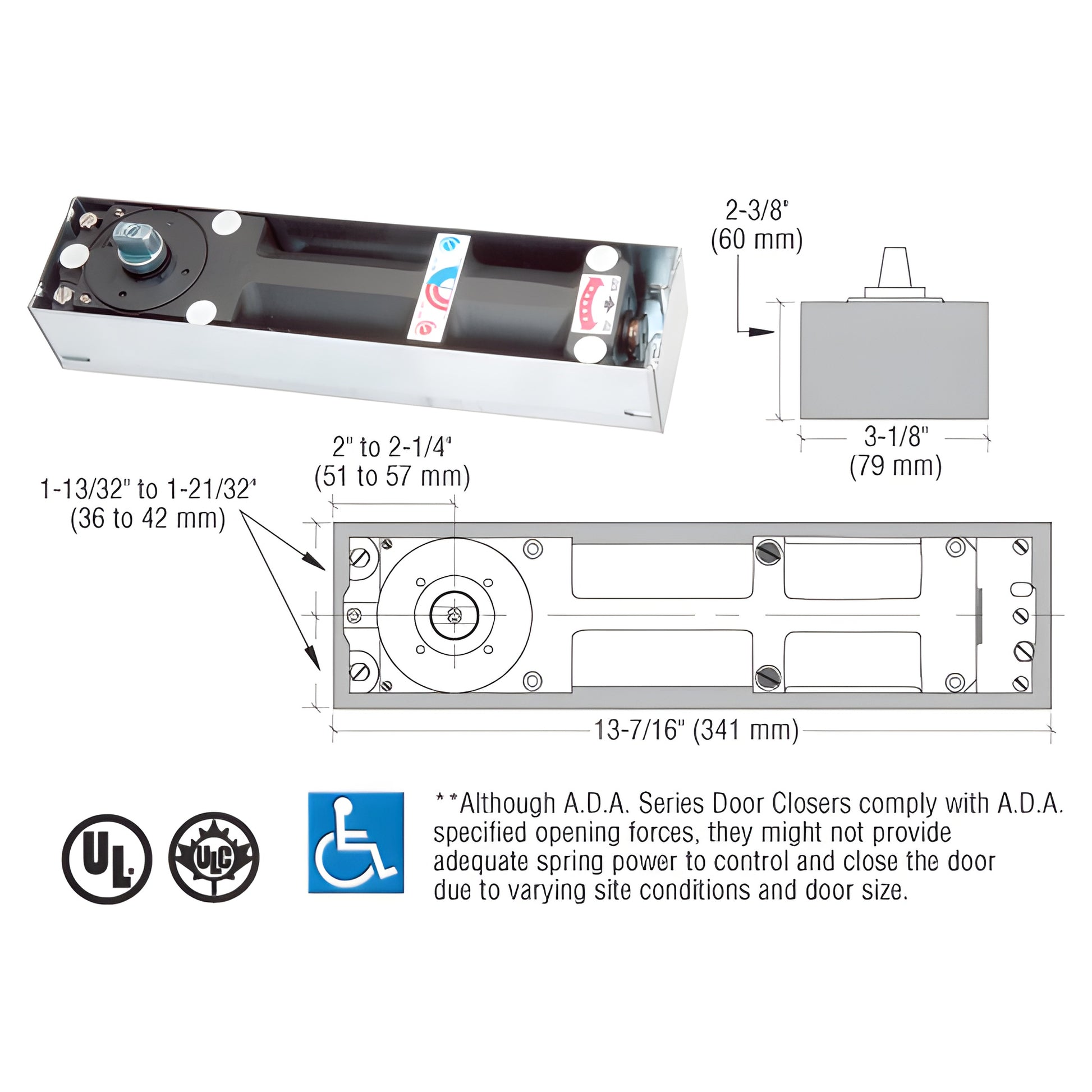

| Body Height | 2-3/8 |
| Body Length | 13-7/16 |
| Body Width | 3-1/8 |
| Brand | Dormakaba |
| Closer Body With Box | Yes |
| Closer Type | Floor Closer |
| Door Opening | 180 |
| Handing | Double Acting |
| Independent Closing and Latching Valves | Yes |
| Interchangeable Spindles | Yes |
| Interior Or Exterior Doors | Yes |
| Maximum Door Width - Exterior | 36 Inches |
| Maximum Door Width - Interior | 36 Inches |
| Maximum Weight Center Hung | 660 |
| Non Stocked Parts and Acessories Special Order | Yes |
| Recommended Door Type | Aluminum, Hollow Metal |
| Selective Hold Open | Yes |
| Selective Multi-Point Hold Open Positions | Yes |
| Series | BTS80 |
| Similar | J990NHOD, J993HOD, J994HOD, J995BCD, |
| Spring Size | 8-1/2 |
| UL Listed | Yes |
Description
- 660 Lb. (299 kg) Capacity, 54" (1.37 m) Doors
- Interchangeable Spindle Heights
- Selective Multi-Point Hold Open Position
- Variable Delayed Action
- 25 Year Limited Warranty
- UL Listed
The Dormakaba® BTS80 Series Floor Mounted Door Closers offer adaptability to almost any installation. The Dormakaba® Closer's compact body permits its use where a larger door closer would be prohibitive. The universal, non-handed design uses a system of interchangeable spindles, and will allow one basic door closer mechanism to be used for either single or double acting, center-hung or offset applications while accommodating virtually any floor covering or threshold height. The selective, multi-point hold open or variable delayed action feature makes this one of the most versatile door closers available. Accessories such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
NOTE: This Door Closer is designed to open to a maximum of 180 degrees. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees.
SPECIFICATIONS:
Maximum Door Weight: 660 Lbs. (299 kg)
Maximum Interior Door Width: 54" (1.37 m)
Maximum Exterior Door Width: 48" (1.22 m)
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. Closer Body Only. Spindle is not included. Spindles are available to accommodate different heights and types: CRL9040S, or CRL9050S.
Specifications
Installation Instructions
CAD Drawings - pdf
