Dormakaba® Model BTS80 Size 3 (EN6) Floor Mounted Door Closer Body in Cement Case
Item # BTS803
$1,271.79
CAD
Overview
| SKU | BTS803 |
|---|---|
| Sold As | 1 Each |

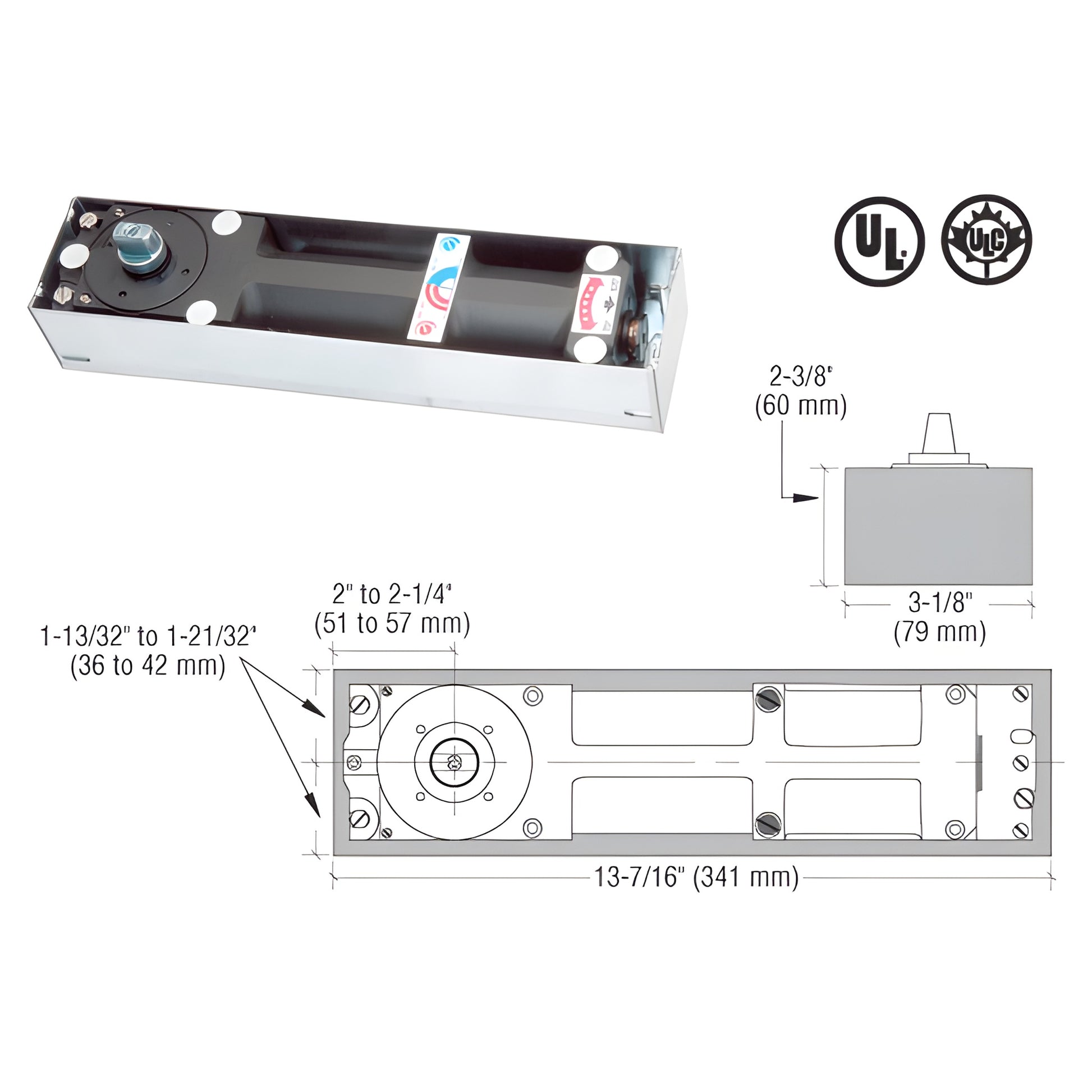

| Body Height | 2-3/8 |
| Body Length | 13-7/16 |
| Body Width | 3-1/8 |
| Brand | Dormakaba |
| Closer Body With Box | Yes |
| Closer Type | Floor Closer |
| Door Opening | 180 |
| Handing | Double Acting |
| Independent Closing and Latching Valves | Yes |
| Interchangeable Spindles | Yes |
| Interior Or Exterior Doors | Yes |
| Maximum Door Width - Exterior | 48 Inches |
| Maximum Door Width - Interior | 54 Inches |
| Maximum Weight Center Hung | 660 Pounds |
| Non Stocked Parts and Acessories Special Order | Yes |
| Recommended Door Type | Aluminum, Hollow Metal |
| Selective Hold Open | Yes |
| Selective Multi-Point Hold Open Positions | Yes |
| Series | BTS80 |
| Similar | J990NHOD, J993HOD, J994HOD, J995BCD, |
| Spring Size | 3 |
| UL Listed | Yes |
Description
- 660 Lb. (299 kg) Capacity, 54" (1.37 m) Doors
- Interchangeable Spindle Heights
- Selective Multi-Point Hold Open Position
- Variable Delayed Action
- 25 Year Limited Warranty
- UL Listed
The Dormakaba® BTS80 Series Floor Mounted Door Closers offer adaptability to almost any installation. The Dormakaba® Closer's compact body permits its use where a larger door closer would be prohibitive. The universal, non-handed design uses a system of interchangeable spindles, and will allow one basic door closer mechanism to be used for either single or double acting, center-hung or offset applications while accommodating virtually any floor covering or threshold height. The selective, multi-point hold open or variable delayed action feature makes this one of the most versatile door closers available. Accessories such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
NOTE: This Door Closer is designed to open to a maximum of 180 degrees. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees.
SPECIFICATIONS:
Maximum Door Weight: 660 Lbs. (299 kg)
Maximum Interior Door Width: 54" (1.37 m)
Maximum Exterior Door Width: 48" (1.2 m)
Product Warning:
Closer Body Only. Spindle is not included. Spindles are available to accommodate different heights and types: CRL9040S, or CRL9050S.
Specifications
Installation Instructions
CAD Drawings - pdf
