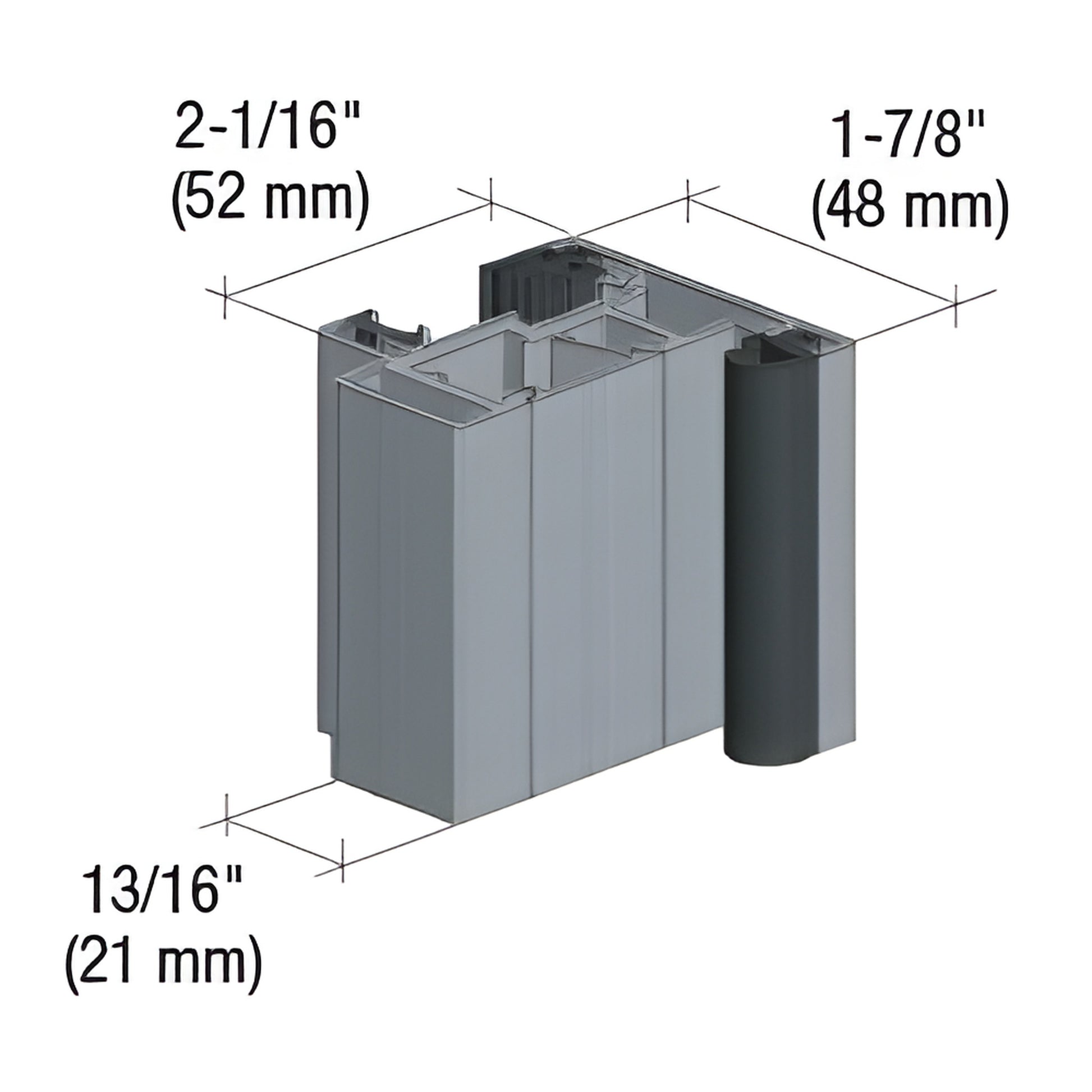

Fallbrook XL 118 in Matte Black Door Header & Jamb Set for Panels
Item# FXG2GD3MBL
Shipping Weight: 11.023 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.023 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Matte Black
Glazing Thickness
3/8 in., 1-1/8 in. (10 mm, 28 mm)
Length
118 in. (2997 mm)
Mounting Type
Door-to-Glass
Series
XL
- Available in Several Finishes
The Fallbrook XL Series Office Partition System is engineered for use with insulating glass sidelite panels to improve sound reduction and create a slim, high-transparency office front. Its floating door-frame aesthetic accommodates 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass doors and supports insulating glass sidelite panel thicknesses of 13/16", 7/8", 15/16", 1", or 1-1/8" (20, 22, 24, 26, or 28 mm). Ideal for architects and commercial interiors specifying a sound-reducing office partition system for glass sidelites.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.
SKU: FXG2GD3MBL
Request a quote or contact CRL for finish options and lead times.
BIM Objects - rvt
