Fallbrook XL 118 in Matte Black Door Header & Wall Jamb Set
Item# FXW2GD3MBL
Shipping Weight: 9.921 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.921 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Matte Black
Length
118 in. (2997 mm)
Mounting Type
Wall-to-Glass
Series
XL
- Available in Several Finishes

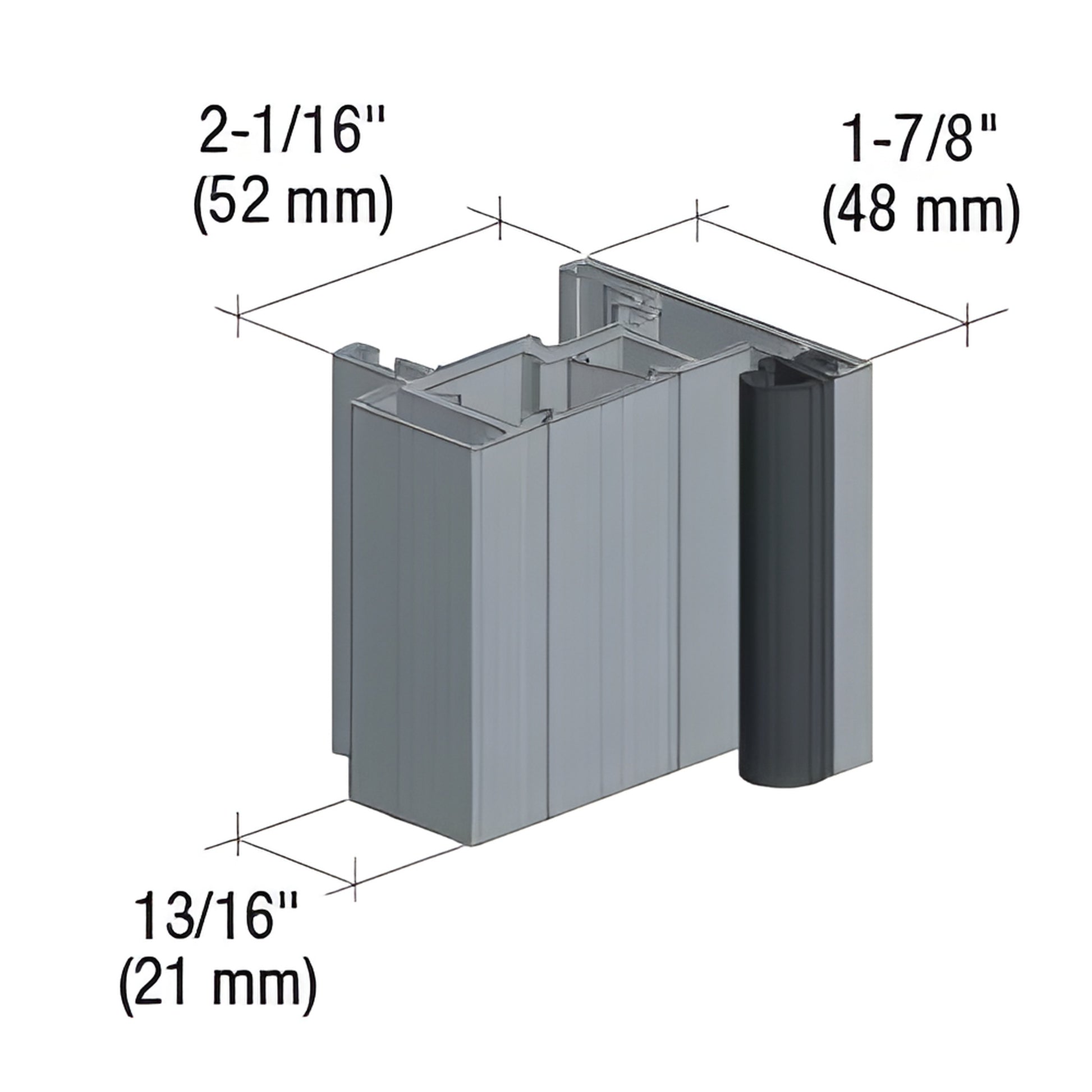

Fallbrook XL Series Office Partition System (SKU: FXW2GD3MBL) — engineered for use with insulating glass sidelite panels to maximize sound reduction and visual transparency. The slim-profile system creates a modern "floating" door frame aesthetic and accepts 3/8" (10 mm) monolithic tempered glass doors. Compatible insulating glass sidelite thicknesses: 13/16", 7/8", 15/16", 1", or 1-1/8" (20, 22, 24, 26, 28 mm).
Each Set Includes:
- 2 — 96-7/16" (2.45 m) lengths of door frame
- 1 — 43-5/16" (1.1 m) length of door frame
- 1 — Strike plate
- 3 pairs — Hammer head nuts
- 4 — Corner connectors
Optional channels (products FXG2GF, FXW2GF, FXC2GF) must be ordered separately.
Weights are approximate. If exact shipping weight is required to calculate shipping costs, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor settings.
Ideal for commercial interiors, glass office fronts, and sound-reducing partition installations—order the Fallbrook XL Series (FXW2GD3MBL) today to achieve a sleek, transparent office partition with acoustic performance.
