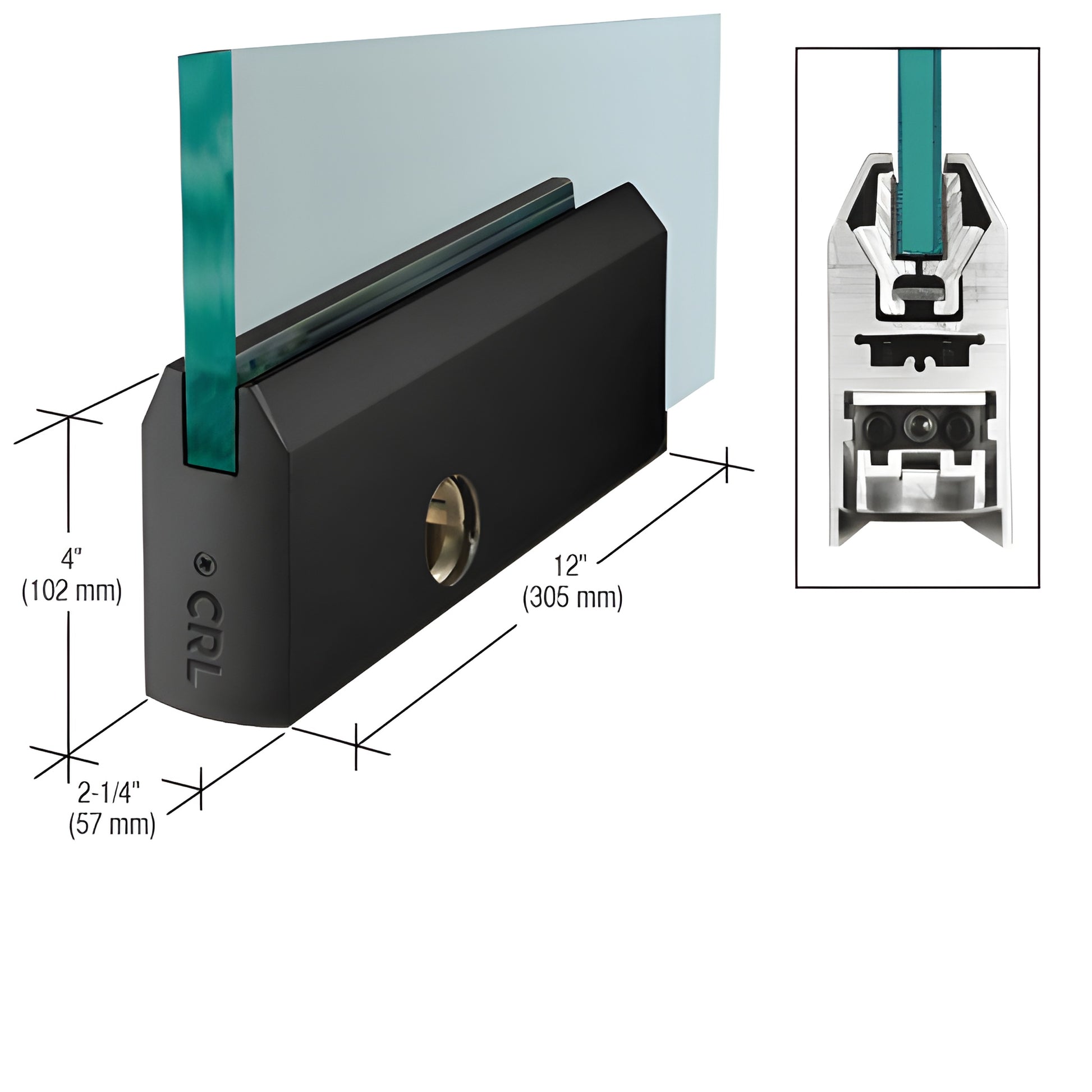

Matte Black 4in Tapered DRS Door Rail w/ Lock for 1/2in Glass, 9.5in

• 9-1/2" (241 mm) Patch for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4TMBL12PL), features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent EP 1 404 939 B1). The wedge-action design applies downward pressure via two aluminum glass-retaining extrusions and a flat stainless steel bar, generating exceptional holding force in the rail (more than 900 lbs. in our 9" Corner Rail). This robust method secures monolithic tempered glass for storefronts, commercial entrances, and high-traffic glass doors.

NOTE: Actual product height: 4-1/16" (103 mm)

The Wedge-Lock® system delivers faster installation and long-term stability. Rails arrive fully fabricated with end caps installed and an adjustable door alignment slide pre-assembled—allowing experienced installers to prepare a door in under ten minutes. The Adjustable Door Alignment System provides up to 1/8" (3.2 mm) in/out adjustment on both top and bottom rails without removing the door, and the low-profile slide accommodates non-standard pivot setbacks for vertically out-of-square openings.

Adjustments are accessed by removing the end cap to reveal three socket head cap bolts: the center bolt secures the slide; the outer bolts adjust 1/8" in or out. Internal components remain in place during installation, and glass securing pads are designed for durability in extreme environments.

Other key advantages:

• Rigid single-component housing that resists shift and loss of adjustment
• Models accommodate 3/8" to 3/4" (10–19 mm) glass
• Internal components do not require removal before installation
• Glass securing pads built for longevity in harsh conditions

NOTE: All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms, pivots, closer arms, and keyed cylinders/thumbturns must be ordered separately to meet project requirements.

Available in several standard architectural finishes, with custom finishes and widths quoted on request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.
