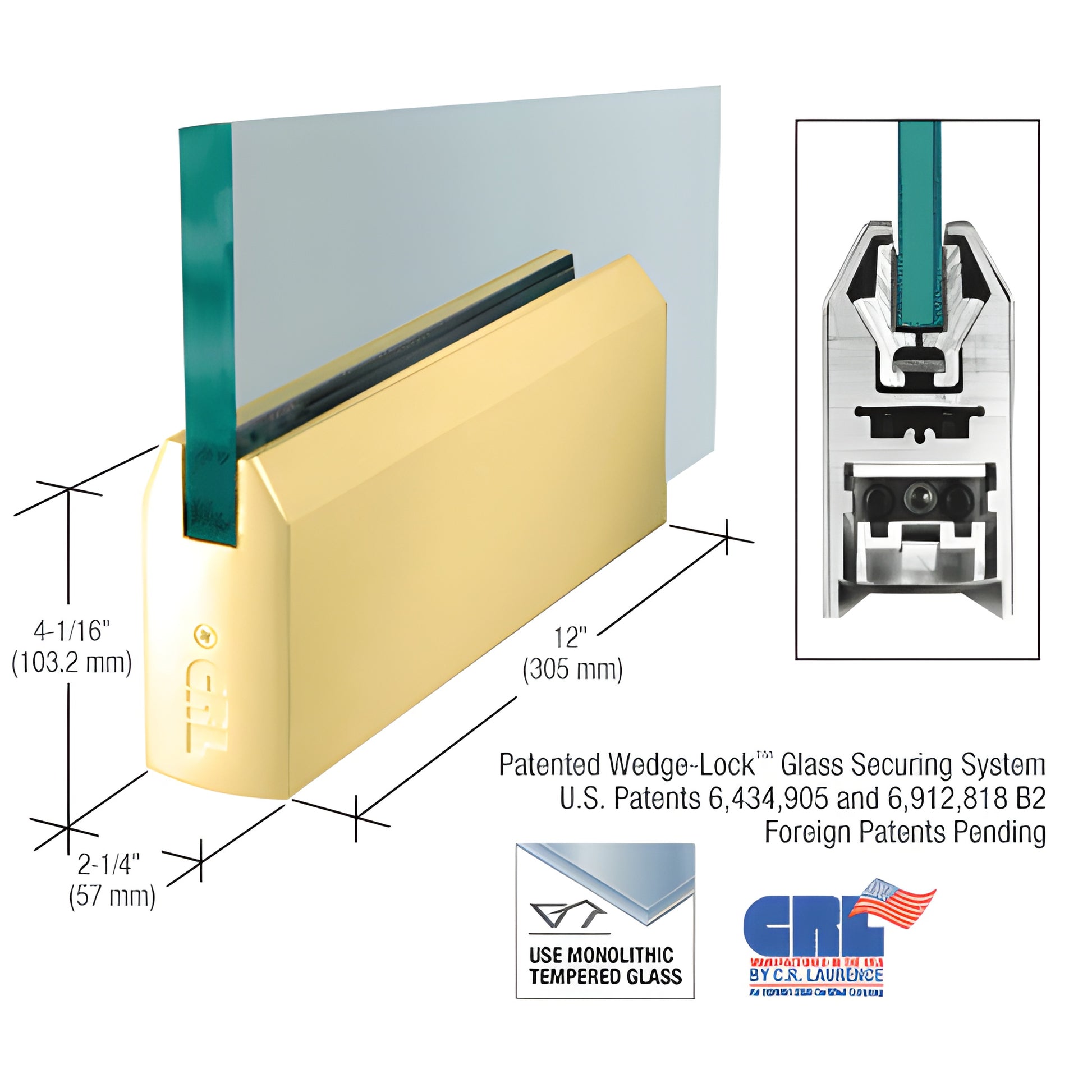

Glass Door Rail Polished Brass 4" Tapered, 12" No Lock for 3/4" Glass

• 12" (305 mm) length for 3/4" (19 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks; matching sidelite rails available

Our CRL Wedge-Lock® Door Rail System (SKU: DR4TPB34P) uses the exclusive Wedge-Lock® Securing System to clamp glass from the bottom with two aluminum retaining extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled extrusions engage an angled groove in the rail and draw the glass retaining extrusions together, creating very high retention forces (over 900 lbs. in our 9" corner rail). This design provides a secure attachment for tempered monolithic glass and fast installation for commercial glass door applications.

Actual product height: 4-1/16" (103 mm)

The Wedge-Lock® system delivers fast field installation and long-term stability: rails come fully fabricated with end caps installed and an assembled adjustable door alignment slide. Installers can prepare a door in minutes; after mounting, attach the door arm or pivot (not included) to the adjustable slide. The adjustable slide allows ±1/8" (3.2 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door. Remove the end cap to access the three socket head cap bolts: the center bolt secures the slide; the outer bolts provide the 1/8" adjustment.

Key advantages:

• Accepts 3/8" to 3/4" glass—ideal for frameless tempered glass entrance doors
• Rigid single-component housing resists shifting or loss of adjustment over time
• Internal components remain in place for faster install; no removal required
• Glass securing pads engineered for durability in extreme environments
• Built-in jamb alignment block standard; arms, pivots, and closers ordered separately

CRL Wedge-Lock® Door Rails are offered in standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

Ordering information:

• All door rails supply the Kwik-Adjust™ Pivot Alignment System as standard; closer arms and pivots must be ordered separately
• Models with locks include the lock mechanism; keyed cylinders or thumbturns must be ordered separately
