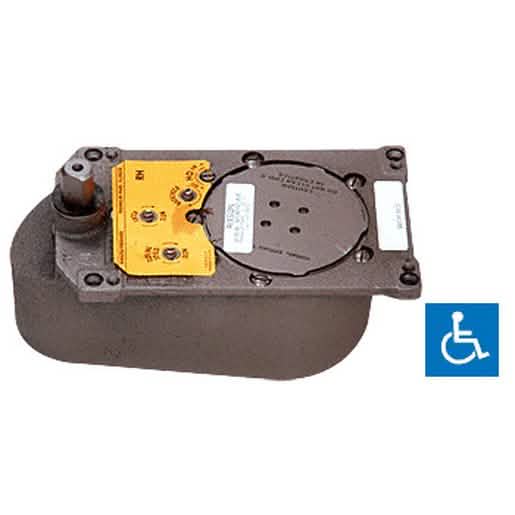

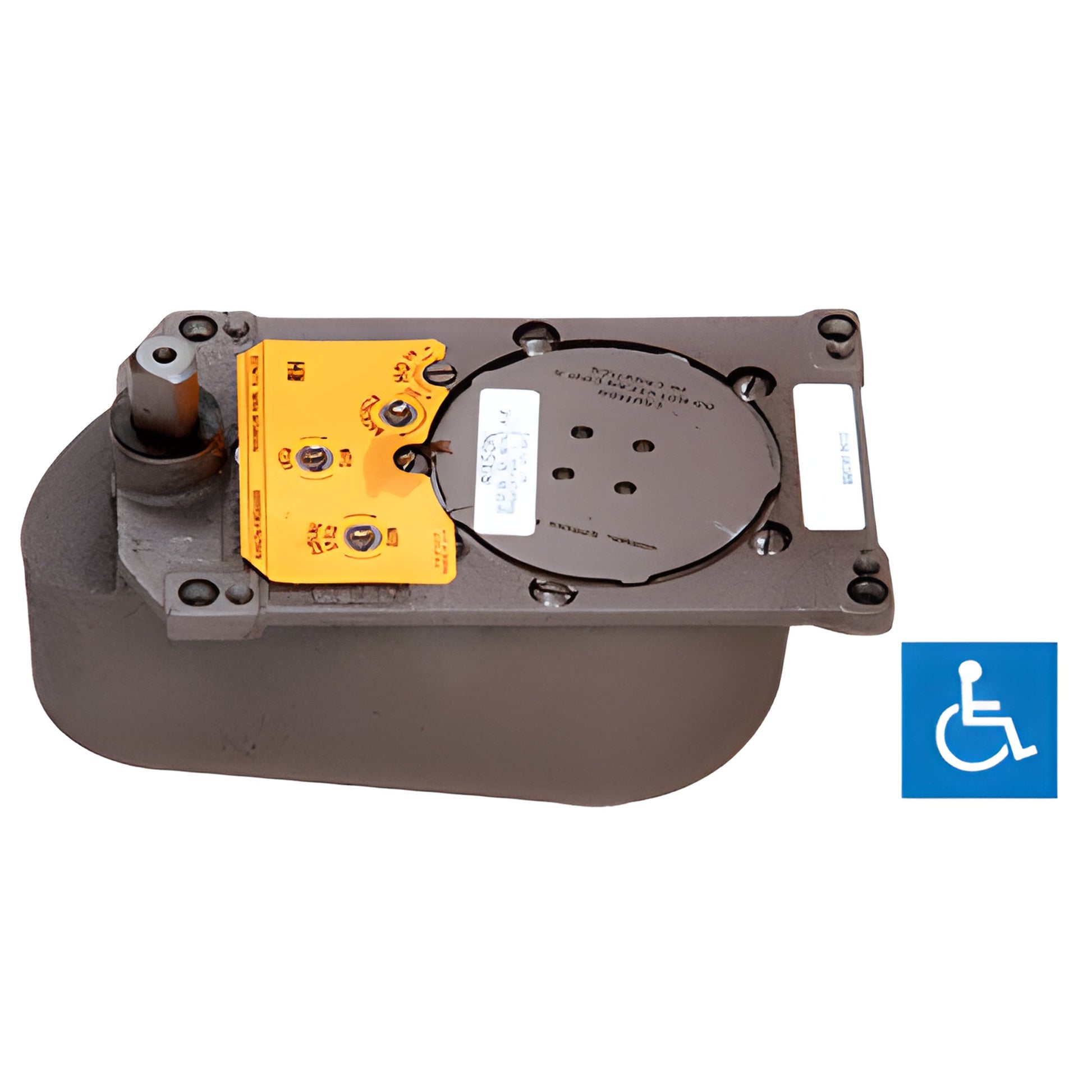

Rixson® PH27 Floor Door Closer Body 8.5 lb Offset 90° Hold-Open RH
Rixson® PH27 Floor Door Closer Body 8.5 lb Offset 90° Hold-Open RH
Regular price
$2,657.07 CAD
Regular price
Sale price
$2,657.07 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH2790SH0RH85
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Hydraulic Backcheck
Yes
Americans with Disabilities Act
Yes
Body Height
4-1/16 in. (103.2 mm)
Body Length
11-1/8 in. (282.6 mm)
Body Width
5-7/8 in. (149.2 mm)
Brand
Rixson
Built In Positive Dead Stop
Yes
Certification
ANSI 117.1, ANSI 156.4 Grade 1
Closer Body Only
Yes
Closer Type
Floor Closer
Door Height May Require Intermediate Pivots
Yes
Door Opening
90 °
Handing
Right Hand
Independent Closing and Latching Valves
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
48 in. (1219.2 mm)
Maximum Door Width - Interior
48 in. (1219.2 mm)
Maximum Weight Center Hung
450 lbs. (204.1 kg)
Non Stocked Parts and Acessories Special Order
Yes
Recommended Door Type
Aluminum, Hollow Metal
Selective Hold Open
Yes
Series
27
Similar
BTS75VBF90HO, BTS80BF, J993HOD, J994HOD
Spring Size
8.5
UL Listed
Yes
Overview
- For exterior or interior doors up to 450 lbs (204 kg) and 48" (1.22 m) wide
- Selective on/off hold open
- Built-in positive dead stop
Rixson® Model 27 Offset Floor Mounted Door Closer (SKU: PH2790SH0RH85) — a heavy-duty floor mounted door closer engineered for reliable door control. The bottom arm connects directly to the floor closer spindle so the door weight is supported at the floor, delivering higher closing efficiency than surface-mounted or overhead concealed closers. Ideal as an offset floor closer for commercial exterior and interior doors up to 450 lbs and 48" wide.
Standard features: selective on/off hold open, built-in positive dead stop, plus separate independent valves for closing, latch and backcheck adjustments for precise control and adjustable backcheck resistance.
Notes: CRL is a stocking Rixson® Specialty Door Control Distributor. Contact our Technical Sales Department for assistance or to order Rixson® products. Although A.D.A. series door closers comply with A.D.A. opening force requirements, site conditions and door size can affect spring power and may prevent adequate closing force.
Optional accessories:
- 253000 — Floor Closer Cement Case
- 274750RH — Closer Cover
- 252050RH — Bottom Offset Arm
- R180 — Top Offset Pivot
- M19RH — Intermediate Offset Pivots
Additional finishes and accessories are available upon request—contact us for a quotation.
Product Warning: Closers set to comply with A.D.A. opening forces may not provide sufficient spring power to control and close the door under varying site conditions and door sizes. Verify application before installation.
Contact CRL Technical Sales to order the Rixson Model 27 (SKU: PH2790SH0RH85) or request a quote.
