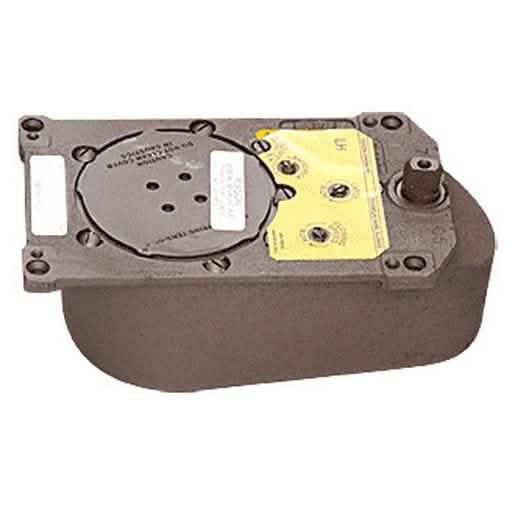

Rixson® 328 Series Center-Hung Left Hand 90º Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings
Rixson® 328 Series Center-Hung Left Hand 90º Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings
Regular price
$1,745.16 CAD
Regular price
Sale price
$1,745.16 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 32890SH0LHB0DY
Shipping Weight: 19.3 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 19.3 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Adjustable | Hydraulic Backcheck Yes |
| Body Height 4-1/16 in. | (103.2 mm) |
| Body Length 11-1/8 in. | (282.6 mm) |
| Body Width 5-7/8 in. | (149.2 mm) |
| Brand | Rixson |
| Built | In Positive Dead Stop Yes |
| Certification ANSI | 117.1 |
| Closer | Body Only Yes |
| Closer | Type Floor Closer |
| Door Height 96 in. | (2438.4 mm) |
| Door Opening | 90 ° |
| Handing | Left Hand |
| Hold Open | 90 |
| Independent | Closing and Latching Valves Yes |
| Interior | Or Exterior Doors Yes |
| Maximum Door Width - Exterior 38 in. | (965.2 mm) |
| Maximum Door Width - Interior 38 in. | (965.2 mm) |
| Maximum Weight Center Hung 325 lbs. | (147.4 kg) |
| Non | Stocked Parts and Acessories Special Order Yes |
| Patch | Fitting Usage Yes |
| Recommended | Door Type Patch Fittings |
| Selective | Hold Open Yes |
| Series | 328 |
| Similar BTS | 75VBF90HO, J993HOD, J904HOD |
| Tapered | Spindle Design Yes |
| U | L Listed Yes |
Overview
The Rixson® Model 328 Center-Hung Floor Mounted Door Closer is engineered for optimal door control, featuring a tapered spindle design ideal for use with patch fittings.
Suitable for exterior or interior doors weighing up to 325 lbs.
(147 kg) and 42" (1.07 m) wide, this door closer offers reliability and durability.
Key features include selective on/off hold open, built-in positive dead stop, and separate independent valves for precise adjustments.
Enhance your setup with optional accessories like the 253000 Floor Closer Cement Case and the 284720LH Closer Cover.
For more details on additional finishes and accessories, contact us for a quote.
Shipping weights are approximate; please consult CRL Customer Service for accurate shipping costs before placing your order.
Suitable for exterior or interior doors weighing up to 325 lbs.
(147 kg) and 42" (1.07 m) wide, this door closer offers reliability and durability.
Key features include selective on/off hold open, built-in positive dead stop, and separate independent valves for precise adjustments.
Enhance your setup with optional accessories like the 253000 Floor Closer Cement Case and the 284720LH Closer Cover.
For more details on additional finishes and accessories, contact us for a quote.
Shipping weights are approximate; please consult CRL Customer Service for accurate shipping costs before placing your order.
