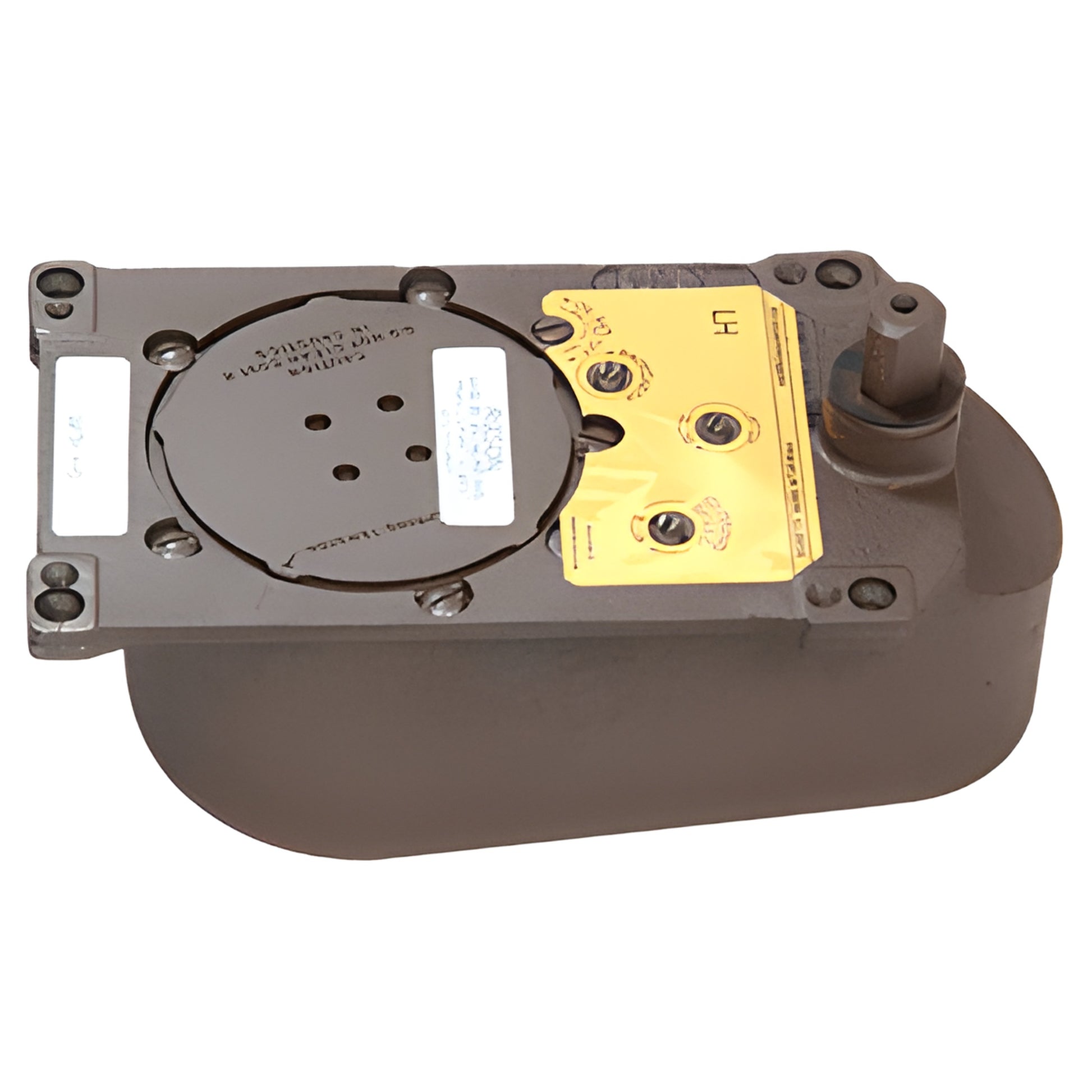

Rixson® 27 Left-Hand 3/4" Offset Floor Closer Body Only 105° Hold-Open
Rixson® 27 Left-Hand 3/4" Offset Floor Closer Body Only 105° Hold-Open
Regular price
$2,679.79 CAD
Regular price
Sale price
$2,679.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 27105SH0LHB0DY
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Hydraulic Backcheck
Yes
Body Height
4-1/16 in. (103.2 mm)
Body Length
11-1/8 in. (282.6 mm)
Body Width
5-7/8 in. (149.2 mm)
Brand
Rixson
Built In Positive Dead Stop
Yes
Certification
ANSI 156.4 Grade 1
Closer Body Only
Yes
Closer Type
Floor Closer
Door Height May Require Intermediate Pivots
Yes
Door Opening
105 °
Handing
Left Hand
Hold Open
105
Independent Closing and Latching Valves
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
48 in. (1219.2 mm)
Maximum Door Width - Interior
48 in. (1219.2 mm)
Maximum Weight Center Hung
450 lbs. (204.1 kg)
Non Stocked Parts and Acessories Special Order
Yes
Recommended Door Type
Aluminum, Hollow Metal
Selective Hold Open
Yes
Series
27
Similar
CRL8370, CRL8372, J993HOD, J994HOD, J990NHOD
UL Listed
Yes
Overview
- For exterior or interior doors up to 450 lbs (204 kg) and 48" (1.22 m) wide
- Selective on/off hold-open (field selectable)
- Built-in positive dead stop for controlled opening
This Rixson® Model 27 Offset Floor Mounted Door Closer (SKU: 27105SH0LHB0DY) is a heavy-duty, floor-mounted closer designed to control and support large doors. The bottom arm connects directly to the floor closer spindle, providing greater closing efficiency than surface or overhead concealed closers. Ideal for high-traffic exterior or interior applications where reliable closing and durability are required.
Standard features include selective on/off hold-open, built-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments—enabling precise control for heavy doors and improving door safety and performance.
NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. For Rixson® products or help selecting the correct closer and accessories, please contact our Technical Sales Department.
Optional accessories that may be needed:
253000 Floor Closer Cement Case 274750LH Closer Cover
252050LH Bottom Offset Arm R180 Top Offset Pivot M19LH Intermediate Offset Pivots.
Additional finishes and accessories are available upon request for quotation.
Looking for a heavy-duty offset floor closer with reliable hold-open and dead stop features? Contact CRL Technical Sales to order model 27 (SKU: 27105SH0LHB0DY) or get a quote today.
Specifications
Templates
