Rixson® 28 Center-Hung Floor Closer Body Left-Hand 105° Hold-Open
Rixson® 28 Center-Hung Floor Closer Body Left-Hand 105° Hold-Open
Regular price
$2,659.92 CAD
Regular price
Sale price
$2,659.92 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 28105SH0LHB0DY
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 20.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Hydraulic Backcheck
Yes
Body Height
4-1/16
Body Length
11-1/8
Body Width
5-7/8
Brand
Rixson
Built In Positive Dead Stop
Yes
Certification
ANSI 156.4 Grade 1
Closer Body Only
Yes
Closer Type
Floor Closer
Door Opening
105
Handing
Left Hand
Hold Open
105
Independent Closing and Latching Valves
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
48 Inches
Maximum Door Width - Interior
48 Inches
Maximum Weight Center Hung
350 Pounds
Non Stocked Parts and Acessories Special Order
Yes
Recommended Door Type
Aluminum, Hollow Metal
Selective Hold Open
Yes
Series
28
Similar
CRL8370, CRL8372, J993HOD, J994HOD, J990NHOD
UL Listed
Yes
Overview
- For exterior or interior doors weighing up to 350 lbs. (158 kg) and 48" (1.22 m) wide
- Selective on/off hold open
- Built-in positive dead stop

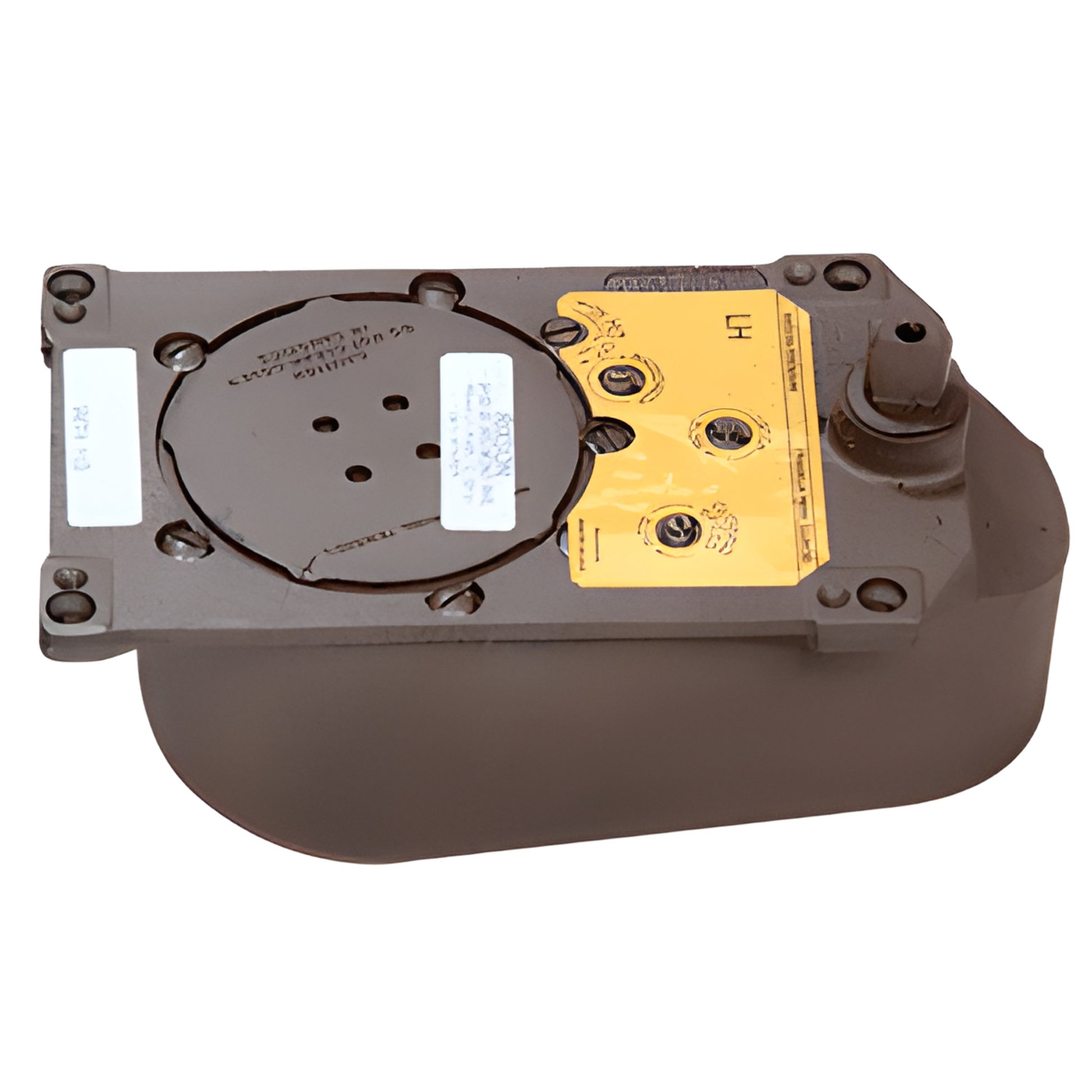

This Rixson® Model 28 Center-Hung Floor Mounted Door Closer (SKU: 28105SH0LHB0DY) delivers high closing efficiency by supporting the door weight through a bottom arm directly connected to the floor closer spindle. The direct bottom-arm-to-spindle connection provides superior performance compared to surface-mounted or overhead concealed closers, making it ideal as a heavy-duty center-hung floor-mounted door closer for exterior or interior doors up to 350 lbs and 48" wide.
Standard features include selective on/off hold open, built-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments—useful when specifying a floor-mounted closer with adjustable closing, latch and backcheck valves.
Note: CRL is a stocking Rixson® Specialty Door Control Distributor. For Rixson® products, contact our CRL Technical Sales Department for assistance or quotation.
Optional accessories that may be needed:
253000 Floor Closer Cement Case
284720LH Closer Cover
282026 Bottom Center-Hung Arm
340 Top Center-Hung Pivot
Additional finishes and accessories are available upon request for quotation.
Contact CRL Technical Sales to confirm compatibility, request a quote, or order this Model 28 center-hung floor-mounted door closer.
