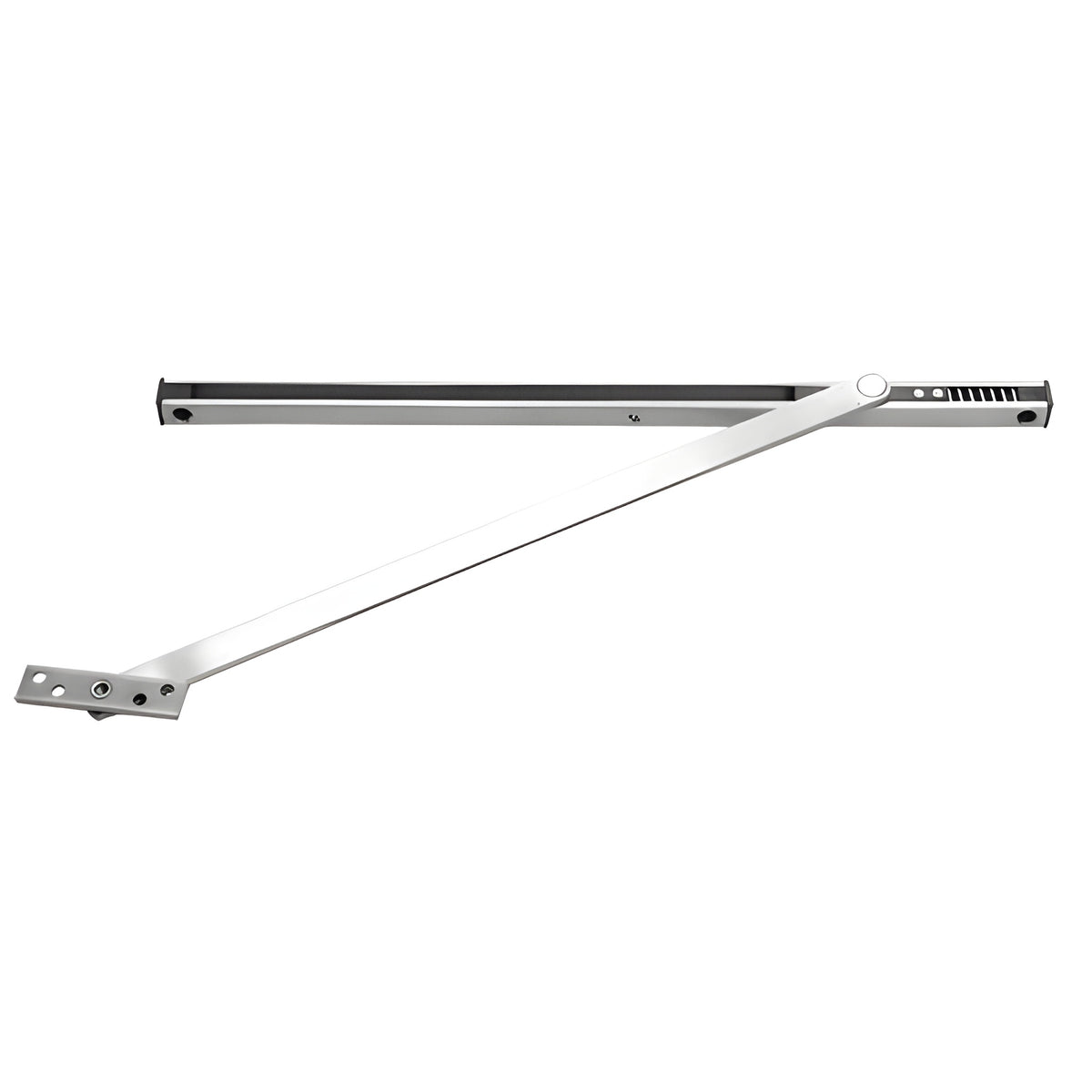

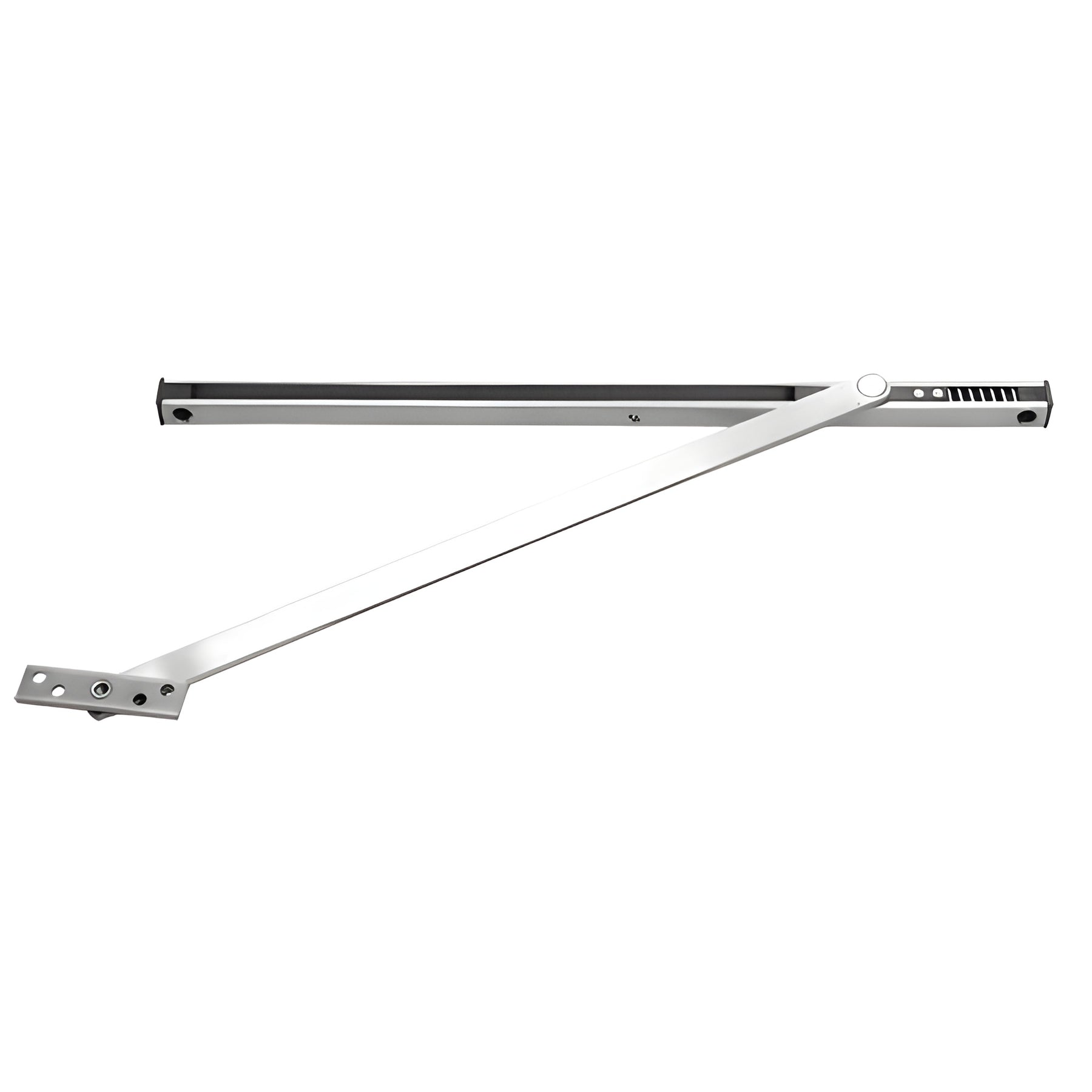

Rixson® Aluminum Multi-Function 10 Series Surface Mount Overhead Stop and Holder - 30-1/16" to 38"

Item # 10346SA

$301.88 CAD

Finish (3)

Overview

SKU10346SA
Sold As1 Each
BrandRixson
CertificationANSI 156.8 Grade 1
Finish/ColorAluminum
HandingNon Handed
SeriesRixson 10 Series

Description

  • Surface Mounted for New or Retrofit Installations
  • Multi-Function Hold Open or Stop Only
  • Protects Door and Entryway
  • For Exterior or Interior Doors
  • Non-Handed
  • ANSI 156.8 Grade 1

Rixson® Overhead Stops and Holders are used to protect both doors and entire entryways from damage caused by violent openings due to wind gusts, heavy traffic frequency, abuse, and vandalism. By limiting the door travel, they can prevent damage to the door frame, closer, hinges, and pivots. The heavy shock absorbing spring provides 5º to 7º compression before reaching a dead-stop. Maximum opening is 110º. Furnished with fasteners for both wood or metal door and frame.


NOTE: Standard 10 series overhead stops and holders are shipped for push side mounting. For pull side mounting, order Cat. No. 5258 optional mounting bracket.

FEATURES AND SPECIFICATIONS:

Door Type Offset Pivots/Hinges: 30-1/16" to 36" (764 to 914 mm)
Door Type Center-Hung Pivots: 32-1/16" to 38" (814 to 965 mm)

  • Non-Handed – Slide Track Design
  • Multi-Function Slider for Field Selection of Hold Open, Friction Stay or Stop Only
  • Degree of Opening Fully Adjustable – 110º Maximum Opening
  • Heavy Shock Absorber Spring Provides 5º to 7º Compression Before Reaching a Dead-Stop
  • Non-Metal Slide and Shock Block
  • Furnished with Fasteners for Both Wood or Metal Door and Frame
  • Recommended for Medium Traffic, Medium Weight Doors
  • Specifications
