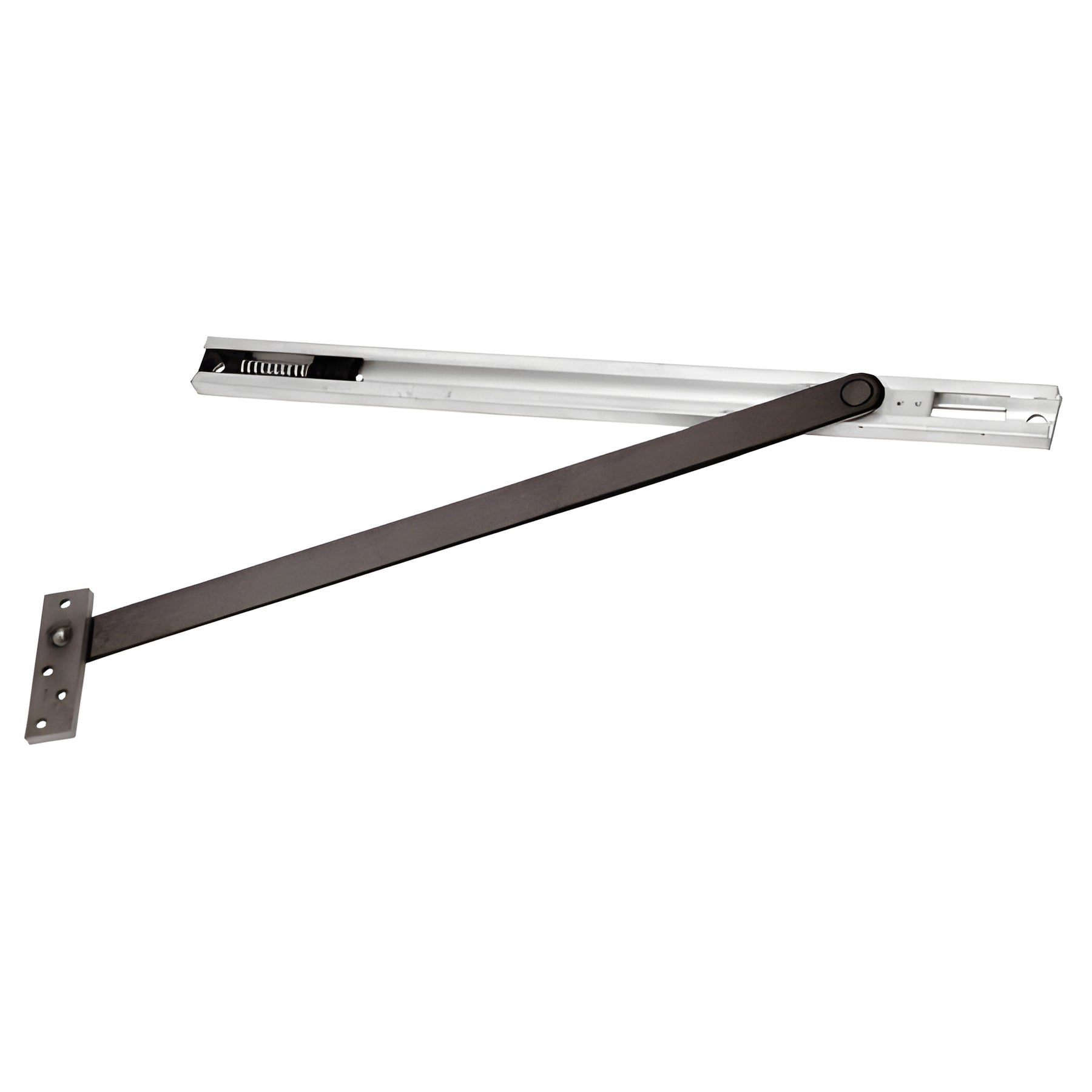

Rixson® Dark Bronze 6 Series Concealed Mount Overhead Stop - 28-1/16" to 36"

Item # 6236DU

$547.49 CAD

Finish (2)

Overview

SKU6236DU
Sold As1 Each
BrandRixson
CertificationANSI 156.8 Grade 1
Finish/ColorDark Bronze
HandingNon Handed
Opening Degree110°
SeriesRixson 6 Series

Description

  • Protects Door and Entryway
  • Recommended for Moderate Traffic and Medium Weight Doors
  • For Exterior or Interior Doors
  • Concealed Slide Track in Top Door Rail Concealed and Surface Mounted
  • Non-Handed
  • ANSI 156.8 Grade 1

Rixson® Overhead Stops are used to protect both doors and entire entryways from damage caused by violent openings due to wind gusts, heavy traffic frequency, abuse, and vandalism. By limiting the door travel, they can prevent damage to the door frame, closer, hinges, and pivots. The heavy shock absorbing spring provides 5º to 7º compression before reaching a dead-stop. Maximum opening is 110º. Furnished with fasteners for both wood or metal door and frame.



FEATURES AND SPECIFICATIONS:

Door Type Offset Pivots/Hinges: 28-1/16" to 33" (713 to 838 mm)
Door Type Center-Hung Pivots: 30" to 36" (762 to 914 mm)

  • Low Profile Concealed Channel Slide Track
  • Designed for Installation in Aluminum Door Webbing and Door Rails
  • Designed for Moderate Traffic, Medium Weight Doors
  • Heavy Shock Absorbing Spring Provides 5º to 7º Compression Before Reaching a Dead-Stop
  • Furnished with Fasteners for Both Wood or Metal Door and Frame
  • Non-Metal Slide Block
  • 110º Maximum Opening
  • Non-Handed
  • Specifications
