Rixson® 27 Satin Chrome RH 3/4" Offset 105° Floor Closer Hold-Open
Rixson® 27 Satin Chrome RH 3/4" Offset 105° Floor Closer Hold-Open
Regular price
$2,753.65 CAD
Regular price
Sale price
$2,753.65 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 27105SH0RHSC
Shipping Weight: 25.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 25.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adjustable Back Check
Yes
Body Height
4-1/16 in. (103.2 mm)
Body Length
11-1/8 in. (282.6 mm)
Body Width
6-1/8 in. (155.6 mm)
Built In Positive Dead Stop
Yes
Certification
ANSI 156.4 Grade 1
Closer Type
Floor Closer
Door Opening
105 °
Door Width 3/4 Offset
48 in. (1219.2 mm)
Finish/Color
Satin Chrome
Handing
Right Hand
Includes
253000, 274750RHSC, 252050RHSC, R180SC
Interior Or Exterior Doors
Yes
Maximum Weight 3/4 Offset
450 Pounds
Package Type
Offset
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
253000, 274750RHSC
Selective Hold Open
Yes
Similar
J990NHOD, CRL9079SC, CRL9075SC
Special Order
Non Stocked And Accessories
UL Listed
Yes
Overview
- For exterior or interior doors — floor-mounted door closer for heavy doors
- Selective Hold Open Feature (SHO)
- 450 lb. (204 kg) capacity; fits up to 48" (1.22 m) door width
- Built-in positive dead stop (stock 90° and 105°)
- Adjustable hydraulic backcheck
- ANSI/BHMA A156.4 Grade 1
- 10‑year limited warranty; UL Listed
Rixson® Floor Mounted Door Closers are proven for reliable, long-lasting, service-free performance. These floor-mounted closers deliver an 85% closing-force-to-opening-force ratio for lighter opening effort while maintaining positive control—ideal for high-traffic commercial entrances, storefronts, and heavy exterior doors. The bottom arm directly connects to the closer spindle so the door weight is supported at the floor, enabling durability under heavy use.
Rixson® floor closers from CRL offer Selective Hold Open, built-in positive dead stop, and adjustable hydraulic backcheck. Additional finishes, optional features, and accessories are available upon request.

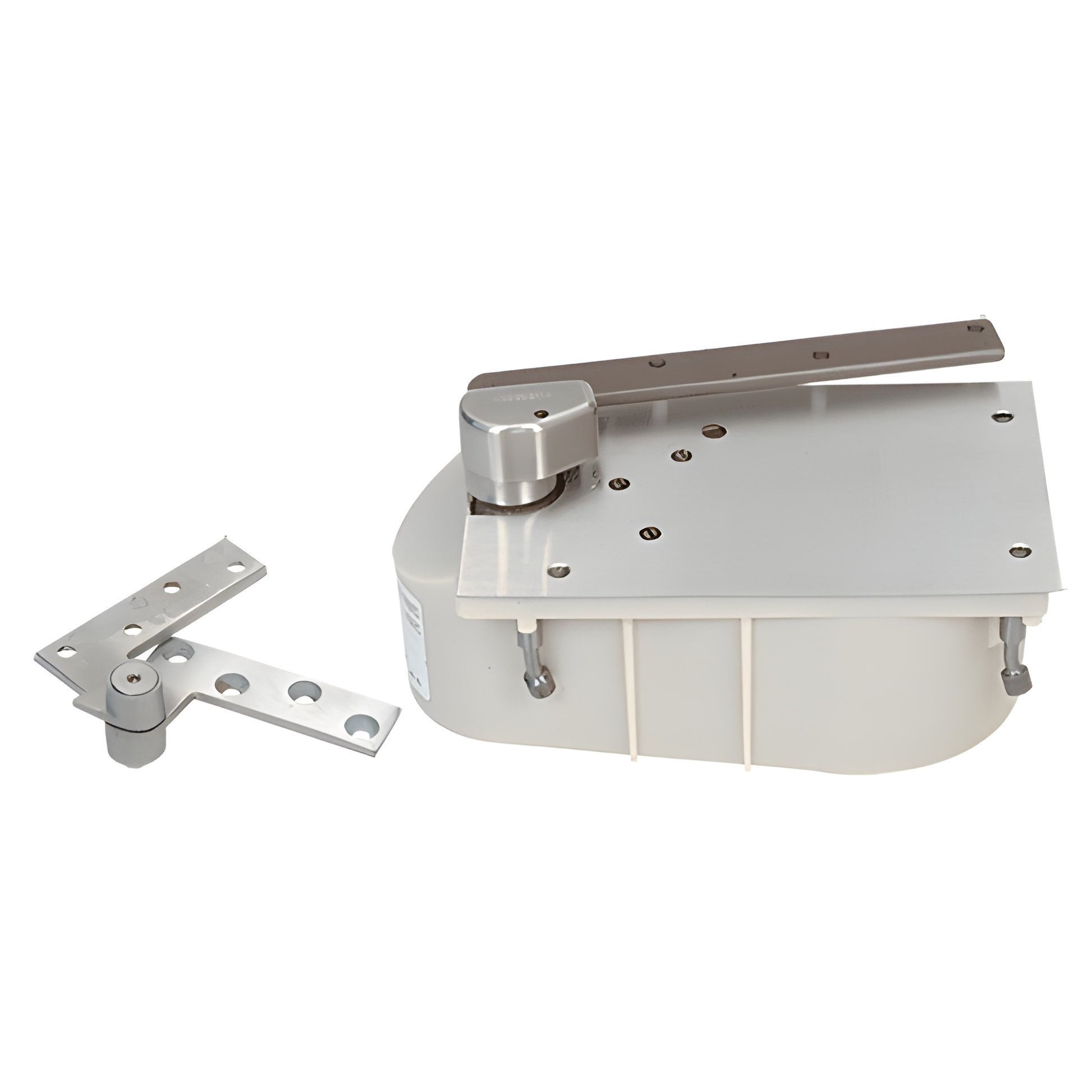

CONTENTS:
27 Series Offset Closer Body
253000 Cement Case
274750 Finished Cover Plate
252050 Bottom Arm
R180 Top Offset Pivot
FEATURES AND SPECIFICATIONS:
- Single-acting, handed
- Selective Hold Open (SHO) stocked
- Independent valves for closing speed, latching speed, and backcheck adjustment
- Built-in positive dead stop prevents over-swing (stock 90° and 105°)
- "PH" models meet ANSI A117.1 for reduced opening force (8.5 lb. ADA opening force)
- 450 lb. (204 kg) capacity for doors up to 48" (1.22 m); manufacturer recommends one intermediate pivot for doors up to 90" (2.29 m) tall and one additional pivot for each extra 30" (762 mm)
Product Warning:
Closers set to comply with ADA-specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
SKU: 27105SH0RHSC
Enhance door performance and reliability with this heavy-duty floor-mounted closer — contact CRL to order or request options and finishes today.
