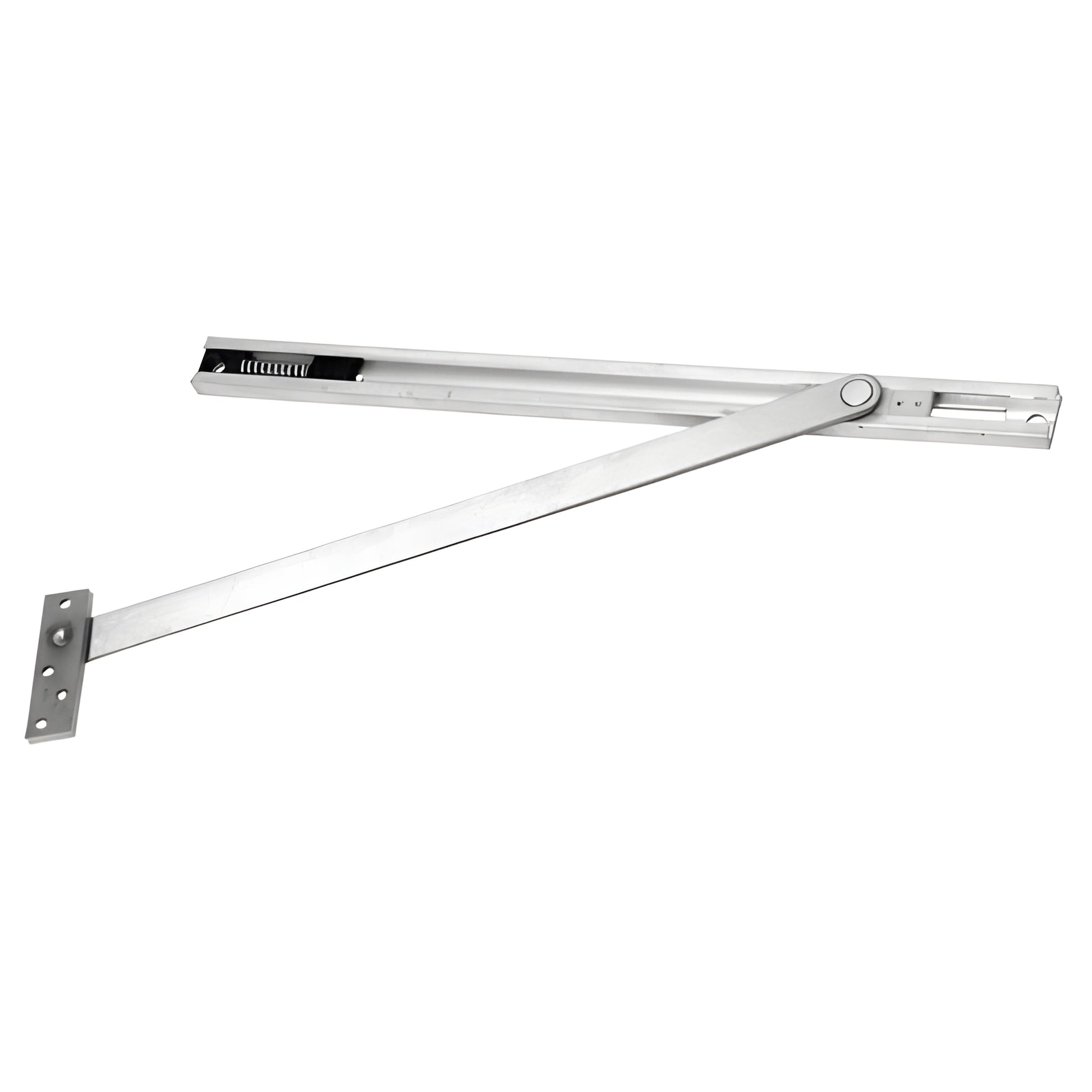

Rixson® 6 Series Concealed Overhead Door Stop, Satin Stainless, Fits 33–41 in

• Protects door and entryway from damage
• Recommended for moderate traffic and medium-weight doors
• Suitable for exterior or interior doors
• Concealed slide track in top door rail (concealed and surface mounted)
• Non-handed design
• ANSI 156.8 Grade 1

Rixson® Overhead Stops (SKU: 6336SS) are overhead door stops that protect doors and entryways from damage caused by violent openings due to wind gusts, heavy traffic, abuse, or vandalism. By limiting door travel, they prevent damage to frames, closers, hinges, and pivots. The heavy shock-absorbing spring provides 5°–7° compression before a dead stop. Maximum opening is 110°. Furnished with fasteners for wood or metal doors and frames.

FEATURES AND SPECIFICATIONS:

Door Size — Offset Pivots/Hinges: 33-1/16" to 38" (840 to 965 mm)
Door Size — Center-Hung Pivots: 36-1/16" to 41" (916 mm to 1.04 m)

• Low-profile concealed channel slide track for a clean appearance
• Designed for installation in aluminum door webbing and door rails
• Designed for moderate traffic and medium-weight doors
• Heavy shock-absorbing spring with 5°–7° compression prior to dead-stop
• Furnished with fasteners for both wood and metal door and frame
• Non-metal slide block to reduce wear
• 110° maximum opening
• Non-handed for universal fit

Protect entryways with the durable Rixson overhead stop—order SKU 6336SS today for concealed overhead door protection.
