Von Duprin® 10 Wire Electric Power Transfer - Dark Bronze

Item # EPT10DU

$1,133.06 CAD

Finish (2)

Overview

SKUEPT10DU
Sold As1 Each
BrandVon Duprin
Depth1-5/8
Finish/ColorDark Bronze
Height9
UL ListedYes
Width1-1/4

Description

  • Ten, 24 Gauge Wires
  • UL Listed

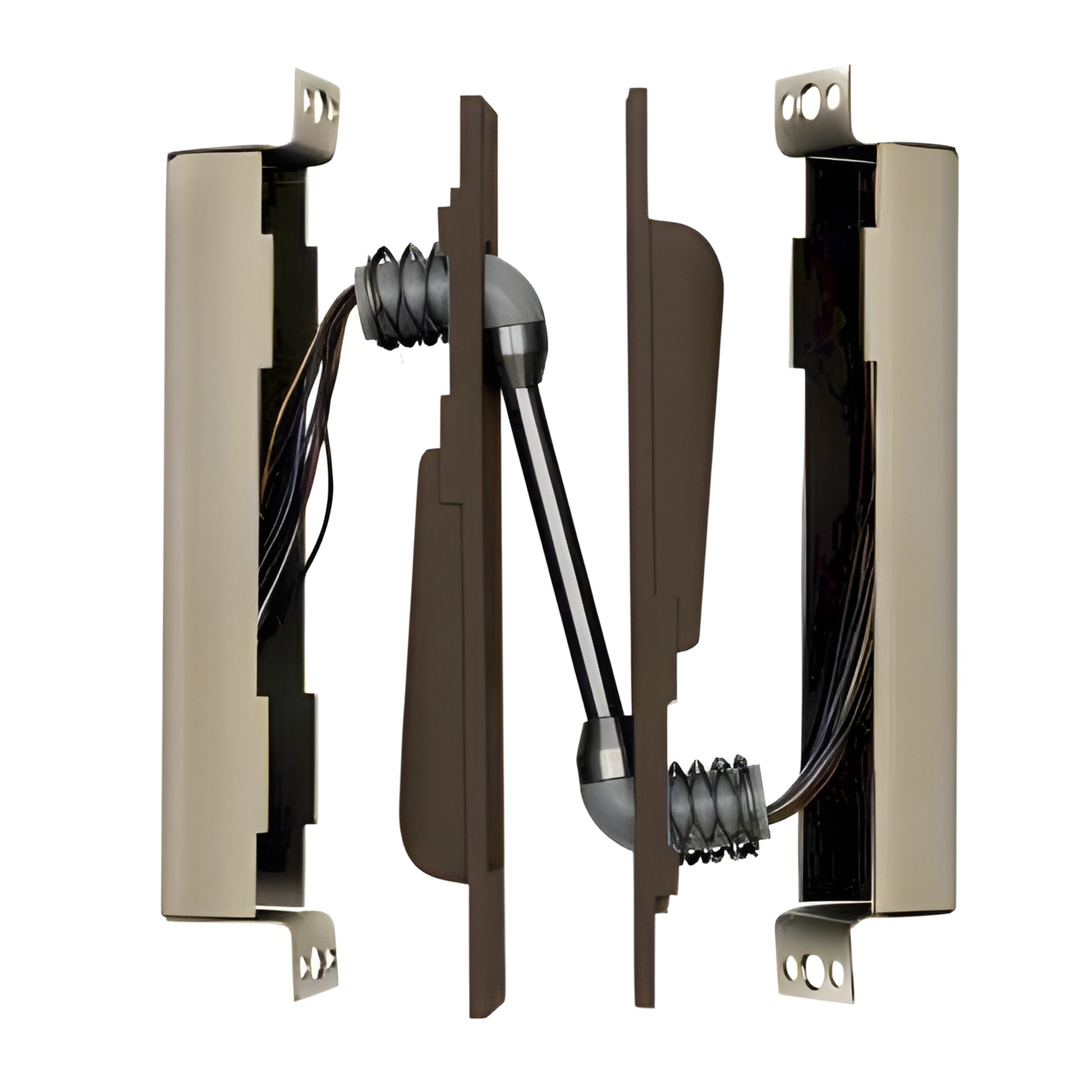

This Von Duprin® 10 Wire Electric Power Transfer provides a means of transferring electrical power from a door frame to the edge of a swinging door. The unit is completely concealed when the door is in the closed position, and ideally suited for installations involving moderate or heavy traffic.


DOOR APPLICATIONS: 3/4" Offset Pivots = 180 Degree Swing
Up to 5" (127 mm) Butt Hinge = 180 Degree Swing
5-1/2" (140 mm) Butt Hinge = 130 Degree Swing
6" (152 mm) Butt Hinge = 110 Degree Swing

SPECIFICATIONS:
9" x 1-1/4" x 1-5/8" (229mm x 32mm x 38mm)
Painted Finish
Ten - 24 ga. Wire
Up to 1 AMP @ 24VDC
16 AMP Maximum Surge


Product Warning:

Not for use with swing clear hinges or center-hung pivots.
