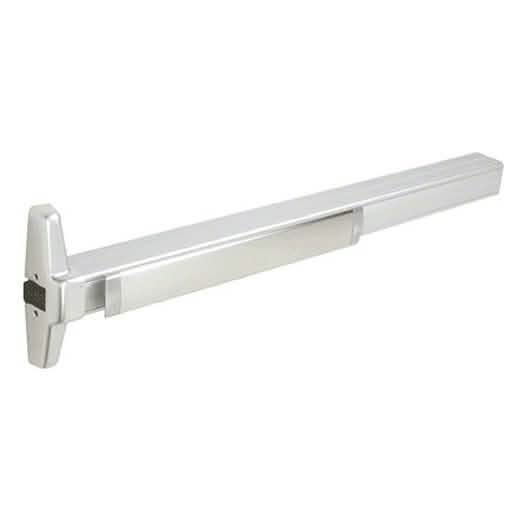

Von Duprin® Rim Panic Exit Device with Grooved Case Satin Chrome Finish 48” Exit Only
Von Duprin® Rim Panic Exit Device with Grooved Case Satin Chrome Finish 48” Exit Only
Regular price
$2,790.88 CAD
Regular price
Sale price
$2,790.88 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 33AE04626
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Brand | Von Duprin |
| Case Quantity | 2 |
| Certification ANSI/BHMA | 156.3 Grade 1 |
| Door Thickness 1-3/4 in. | (44.5 mm) |
| Door Width 48 in. | (1219.2 mm) |
| Finish/Color | Satin Chrome |
| Handing | Non Handed |
| Includes | Mounting Hardware |
| Material | Aluminum |
| Minimum Stile Width 1-3/4 in. | (44.5 mm) |
| Model | 33AEO |
| Panic Bar Base Height 2-1/4 in. | (57.2 mm) |
| Panic Bar Projection 3-13/16 in. | (96.8 mm) |
| Panic Bar Width Net 47-3/8 in. | (1203.3 mm) |
| Panic | Body Style Grooved |
| Panic | Dogging Standard Hex Key Dogging |
| Panic Head Base Width 2-11/16 in. | (68.3 mm) |
| Panic Head Height 8-3/16 in. | (208 mm) |
| Panic | Type Rim Exit Device |
| Push Pad Width 24 in. | (609.6 mm) |
| Recommended | Door Type Aluminum, Narrow, Medium, Wide Style, Wood, Hollow Metal |
| Series | 33A |
| U | L Listed Yes |
Overview
The IR Von Duprin® 33A Series Rim Panic Exit Device is expertly crafted to accommodate door stiles as narrow as 1-3/4" (44 mm), featuring a sleek grooved housing and the innovative "quiet One"® technology to minimize noise.
This top-quality exit device is non-handed and includes a one-piece center case cover, making it both versatile and durable.
Certified to UL standards for Panic Exit Hardware and conforming to ANSI A156.3, Grade 1 standards, the 33A and 35A Series Exit Devices ensure reliable performance.
For detailed specifications or inquiries, reach out to our Technical Sales Department.
This top-quality exit device is non-handed and includes a one-piece center case cover, making it both versatile and durable.
Certified to UL standards for Panic Exit Hardware and conforming to ANSI A156.3, Grade 1 standards, the 33A and 35A Series Exit Devices ensure reliable performance.
For detailed specifications or inquiries, reach out to our Technical Sales Department.
