Product Details
- Compact Design with Base and Cap for adjustment as needed
- For Use with 3/4" to 27/32" (19.05 mm to 21.52 mm) Glass
- High Grade Alloy 316 Stainless Steel Standard
- For Mounting to Steel, Concrete, or Wood Substrate

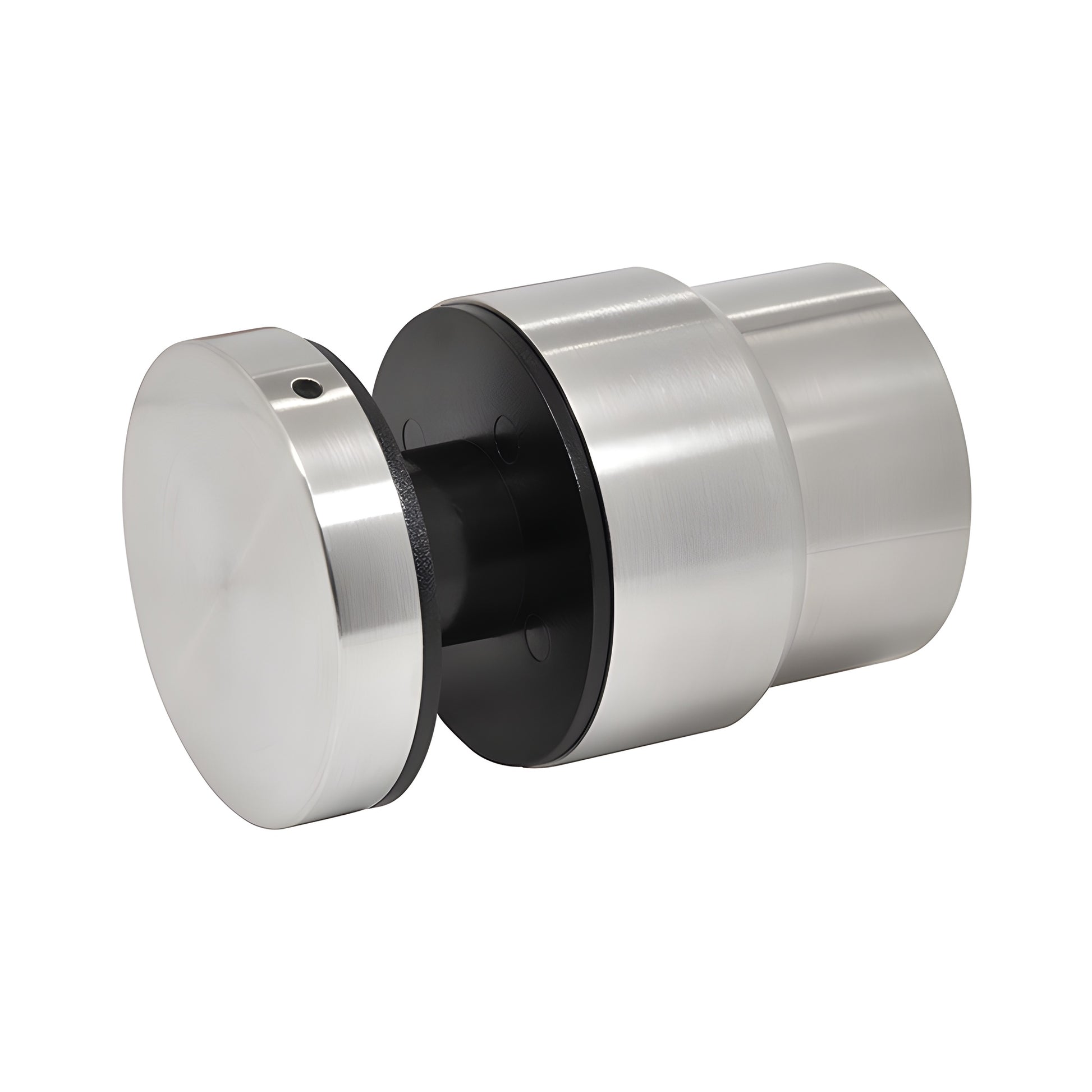

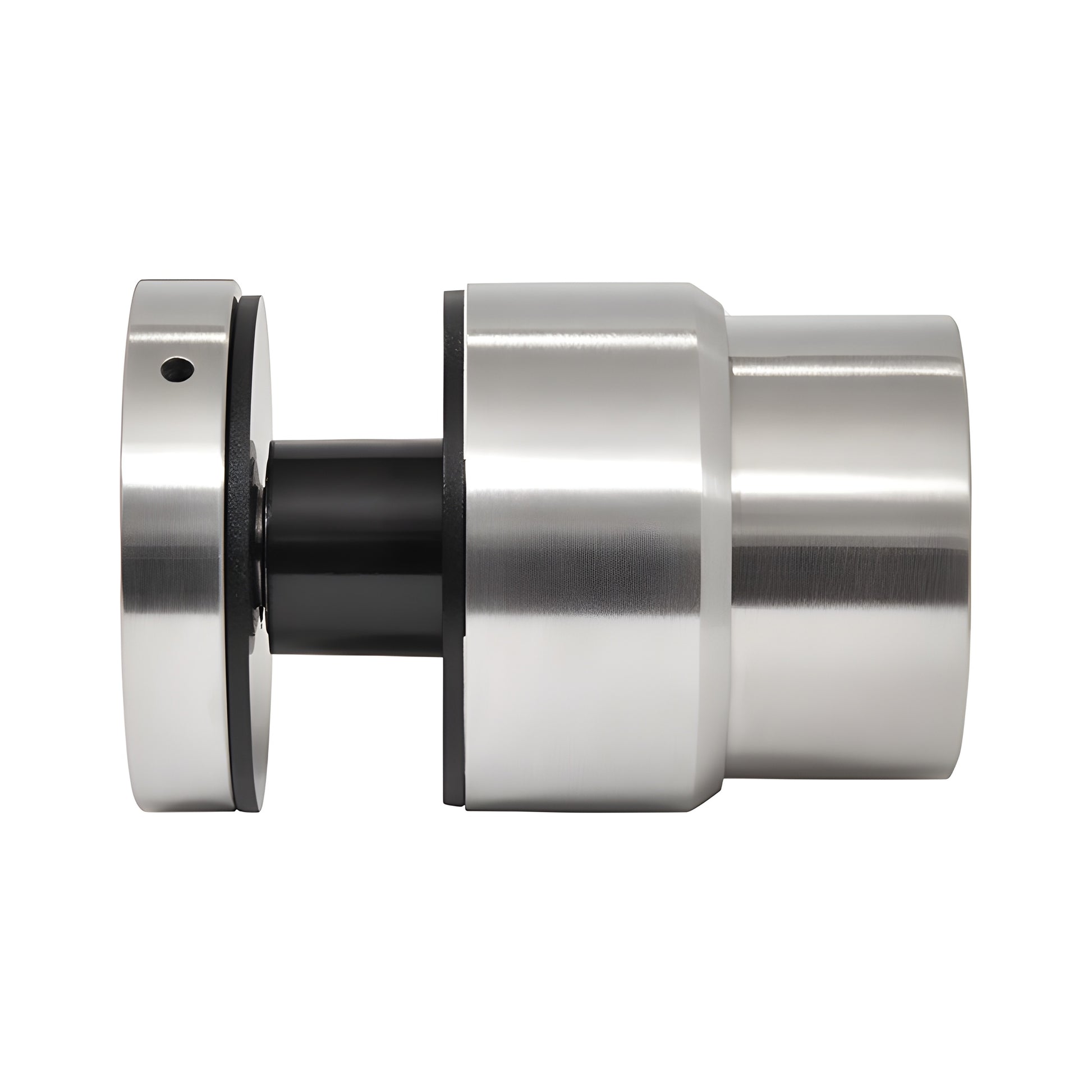

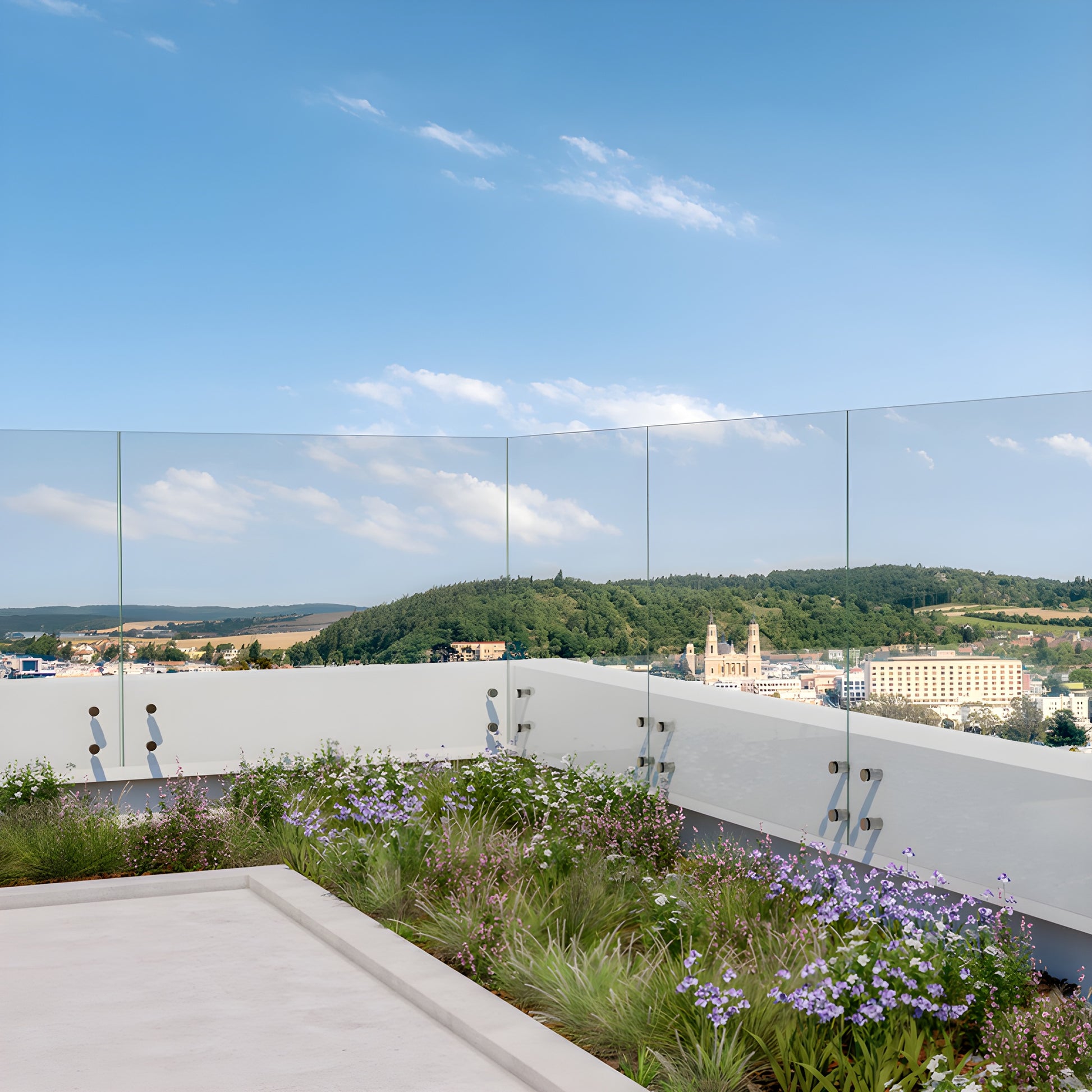

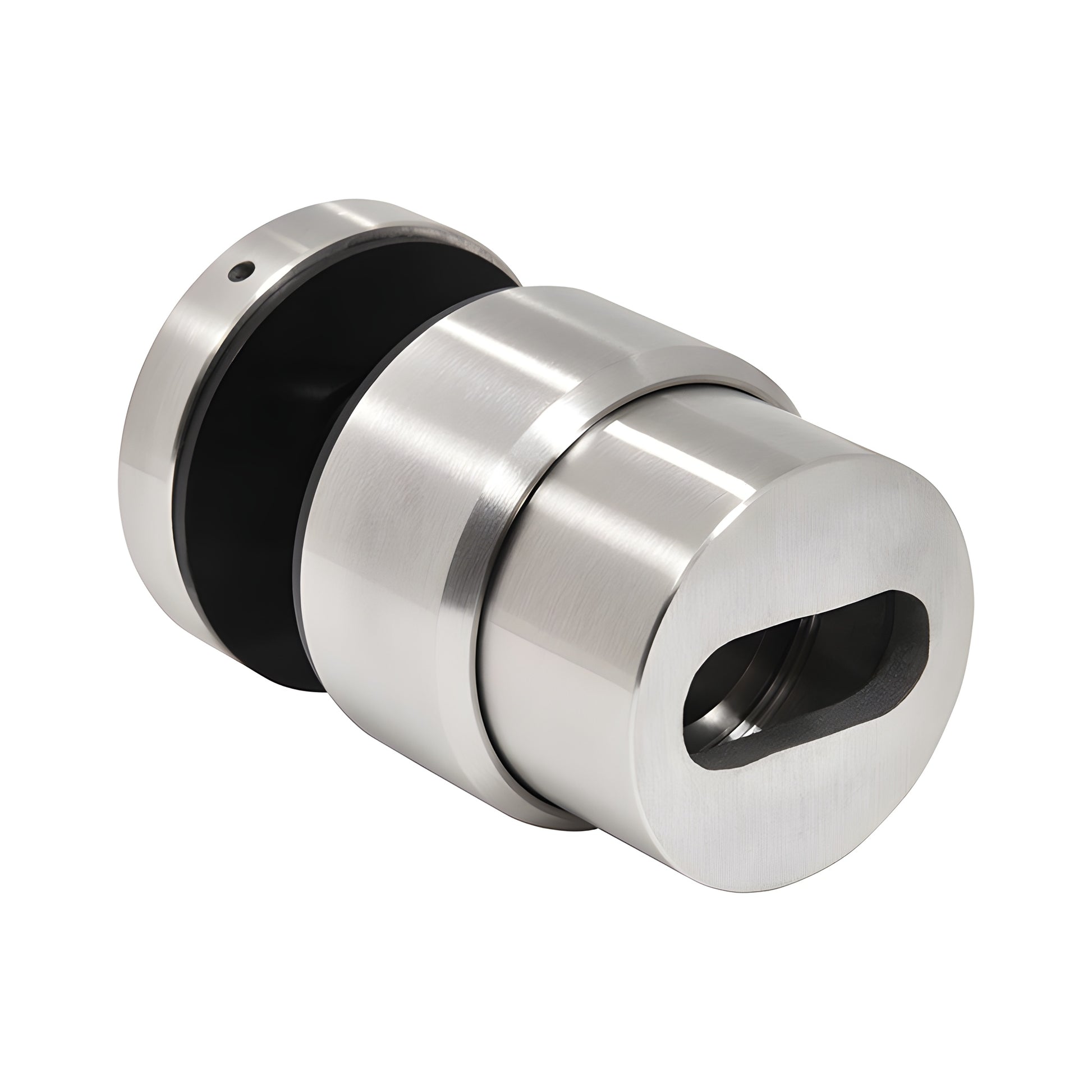

These heavy-duty CRL Adjustable Glass Rail Standoff assembly works to create frameless glass guard railings. The standoff fitting is 2" (51 mm) in diameter with a 1-3/4" (44.5 mm) base. Choose from wood (Cat No.: LB12X3SS), steel(Cat No.: SHCS38X112), or concrete (Cat No.: WBA38X4SS) fasteners available for installation. Use with our Cat. No. SSW12 Spanner Wrench and Cat.No. 91 Allen Key Set to tighten the cap.
15/16" Diameter Hole for 3/4 in (19.05 mm) to 27/32 in. (21.52 mm) thick glass. Spacing: Maximum spacing between fittings depends on use and mounting conditions; Minimum hole spacing between standoffs is 4"" (102 mm). An Engineering Report is available for this item by clicking on the icon above called Technical Details.
For use with 3/4" to 27/32" (19.05 mm to 21.52 mm) tempered laminated glass. Do not use with raw or annealed glass
NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
