Product Details
- Expanding Top Bolt
- Inactive Door Lock
- 84" (2.13 m) or Less - 32" to 53" (813 to 1346 mm)
- 85" to 90" (2.16 to 2.29 m) - 38" to 59" (965 to 1499 mm)
- 91" to 96" (2.31 to 2.44 m) - 44" to 64" (1.12 to 1.63 m)

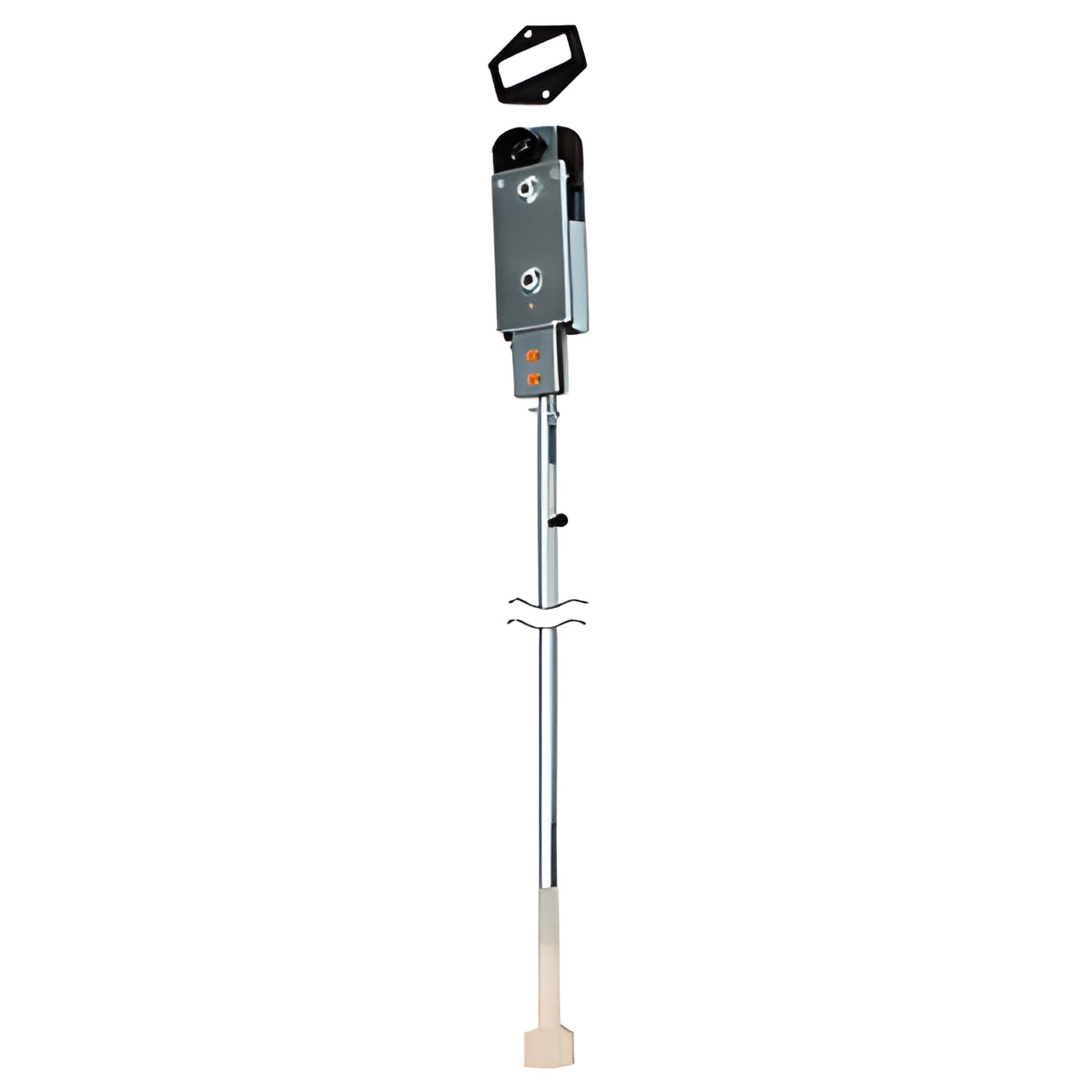

The CRL Adams Rite® 4085 Header Bolt is designed to add a top-of-door locking point for the inactive leaf of a pair of doors when used with the DL2110B or MS18533 Long Throw Deadlock. This Bolt, when triggered by the pivoted MS Bolt, expands in a "scissors" action to center itself in its strike as it rises.
This Header Bolt fits the following door to cylinder height combinations:
Door Height - Cylinder Height:
84" (2.13 m) or Less - 32" to 53" (813 to 1346 mm)
85" to 90" (2.16 to 2.29 m) - 38" to 59" (965 to 1499 mm)
91" to 96" (2.31 to 2.44 m) - 44" to 64" (1.12 to 1.63 m)
