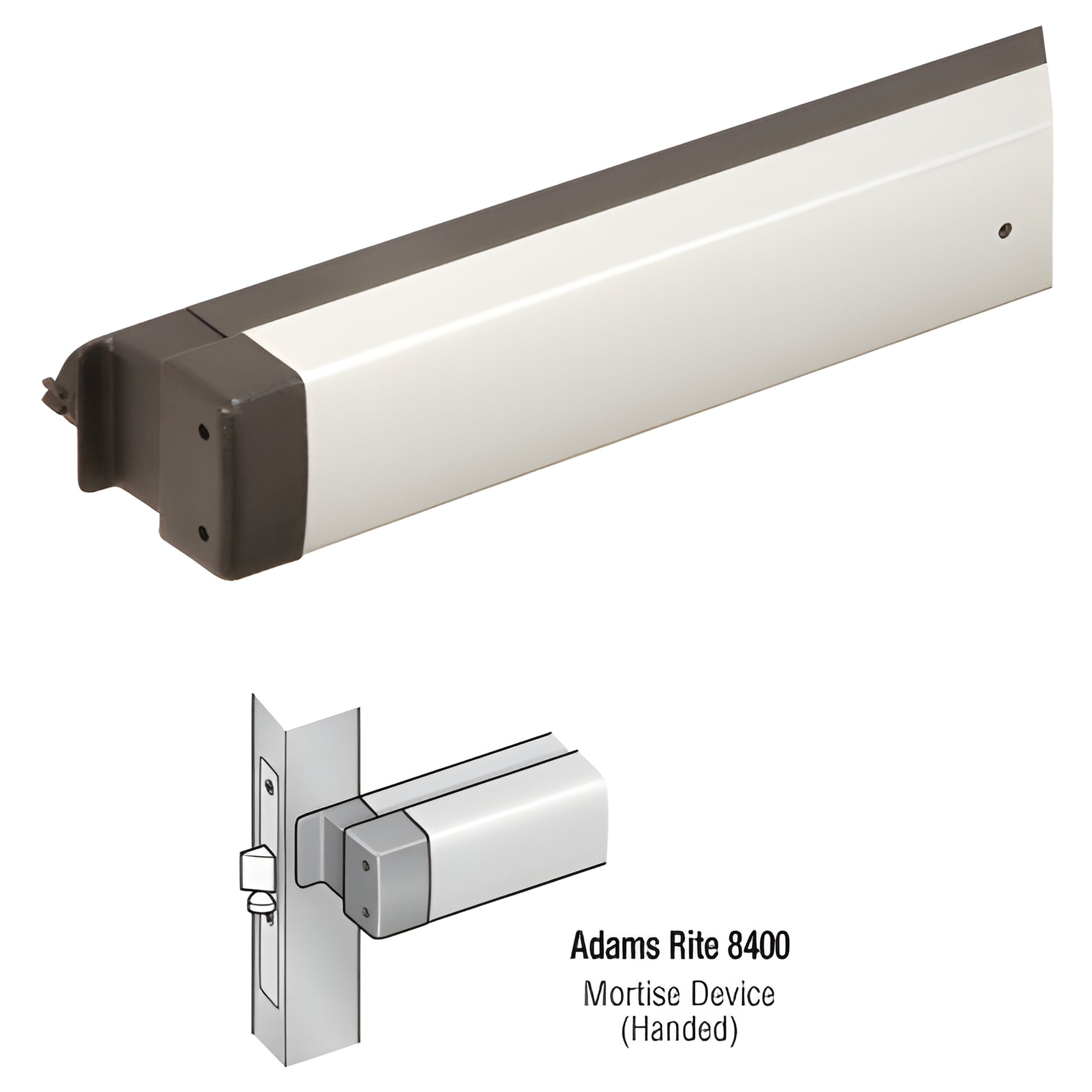

Adams Rite® 8400 Series Panic Mortise Only Right Hand 36", Clear Anodized
Item # DH84111R036
$538.35
CAD
Finish (2)
-
Clear Anodized -
Dark Bronze
Overview
| SKU | DH84111R036 |
|---|---|
| Sold As | 1 Each |
| Brand | Adams Rite |
| Certification | ANSI A156.3 Grade 1 |
| Door Height | 96 |
| Door Thickness | 1-3/4 |
| Door Width | 36 |
| Finish/Color | Clear Anodized |
| Handing | Right Hand, Left Hand Reverse Bevel |
| Includes | Mounting Hardware |
| Material | Aluminum |
| Minimum Stile Width | 2 |
| Model | 84111 |
| Panic Bar Base Height | 2-3/4 |
| Panic Bar Projection | 2-5/8 |
| Panic Dogging | Standard Hex Key Dogging |
| Panic Type | Mortise Exit Devise |
| Push Pad Width | 29-1/4 |
| Recommended Door Type | Aluminum, Wood, Hollow Metal |
| Replacement Parts | DL2170SCKDDU, DL2170Y8KDDU, Special Order |
| Series | 8400 |
| UL Listed | Yes |
Description
- Fits Door Stiles as Narrow as 2" (51 mm)
- UL Listed and Tested to ANSI A156.3, Grade 1
- Easy-to-Install
The 8400 Series Narrow Stile Mortise Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with mortise locking solution. Designed for use in single door applications.
