CRL

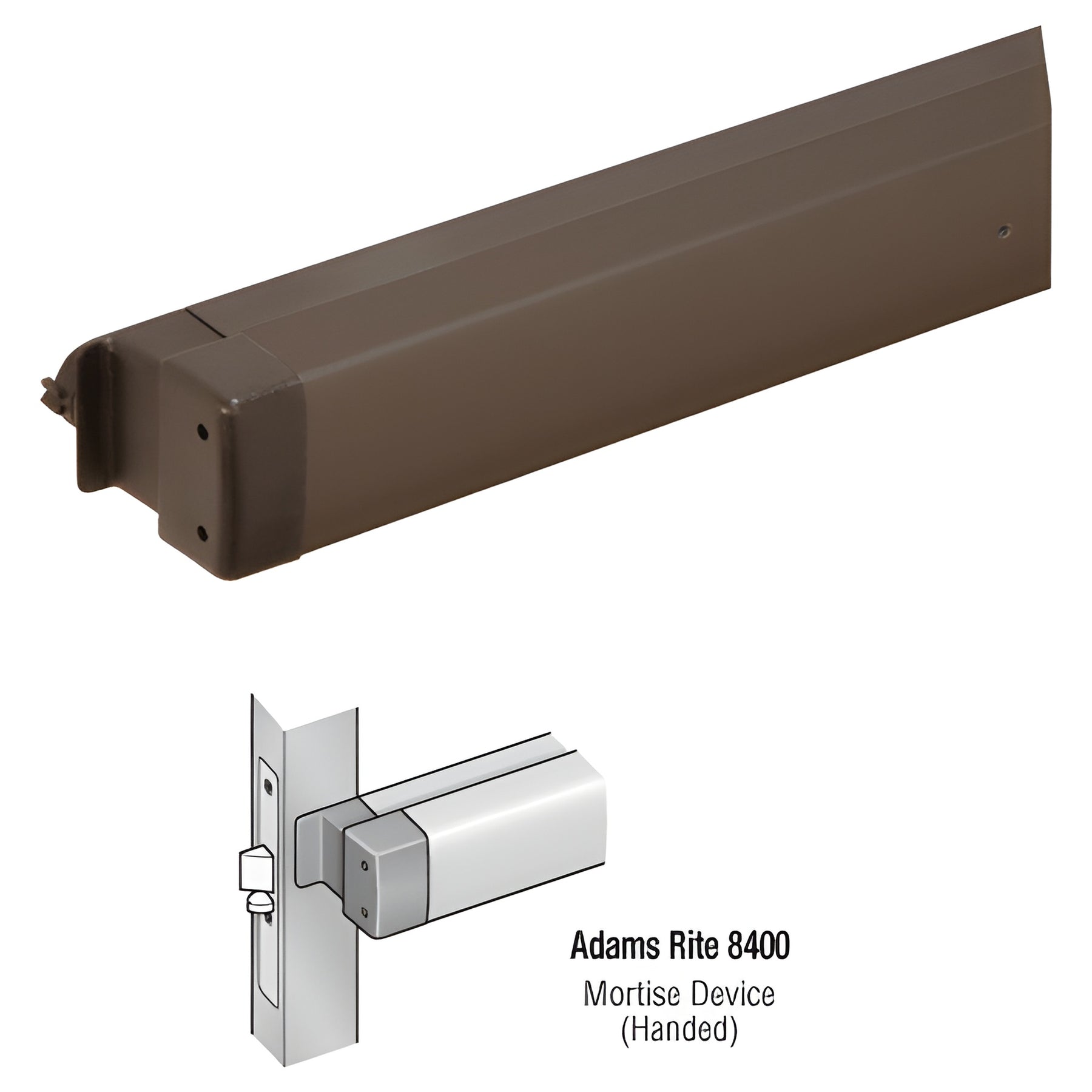

Adams Rite® 8400 Series 36" Right-Hand Panic Mortise, Dark Bronze
Item# DH84122R036
Shipping Weight: 9.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Brand
Adams Rite
Certification
ANSI A156.3 Grade 1
Door Height
96
Door Thickness
1-3/4
Door Width
36
Finish/Color
Dark Bronze
Handing
Right Hand, Left Hand Reverse Bevel
Includes
Mounting Hardware
Material
Aluminum
Minimum Stile Width
2
Model
84222
Panic Bar Base Height
2-3/4
Panic Bar Projection
2-5/8
Panic Dogging
Standard Hex Key Dogging
Panic Type
Mortise Exit Devise
Push Pad Width
29-1/4
Recommended Door Type
Aluminum, Wood, Hollow Metal
Replacement Parts
DL2170SCKDDU, DL2170Y8KDDU, Special Order
Series
8400
UL Listed
Yes
- Fits Door Stiles as Narrow as 2" (51 mm)
- UL Listed and Tested to ANSI A156.3, Grade 1
- Easy-to-Install
The 8400 Series Narrow Stile Mortise Exit Device (SKU: DH84122R036) is engineered for narrow stile aluminum doors requiring a life-safety, mortise-locking exit solution for single-door applications. Ideal for commercial and institutional projects needing a narrow stile aluminum exit device with a mortise locking mechanism and UL-listed, ANSI A156.3 Grade 1 performance.
Shipping weights are approximate; request exact weight from CRL Customer Service if needed to calculate shipping costs before placing your order. Product images represent the actual item or a close match; color may vary by monitor and video card settings.
