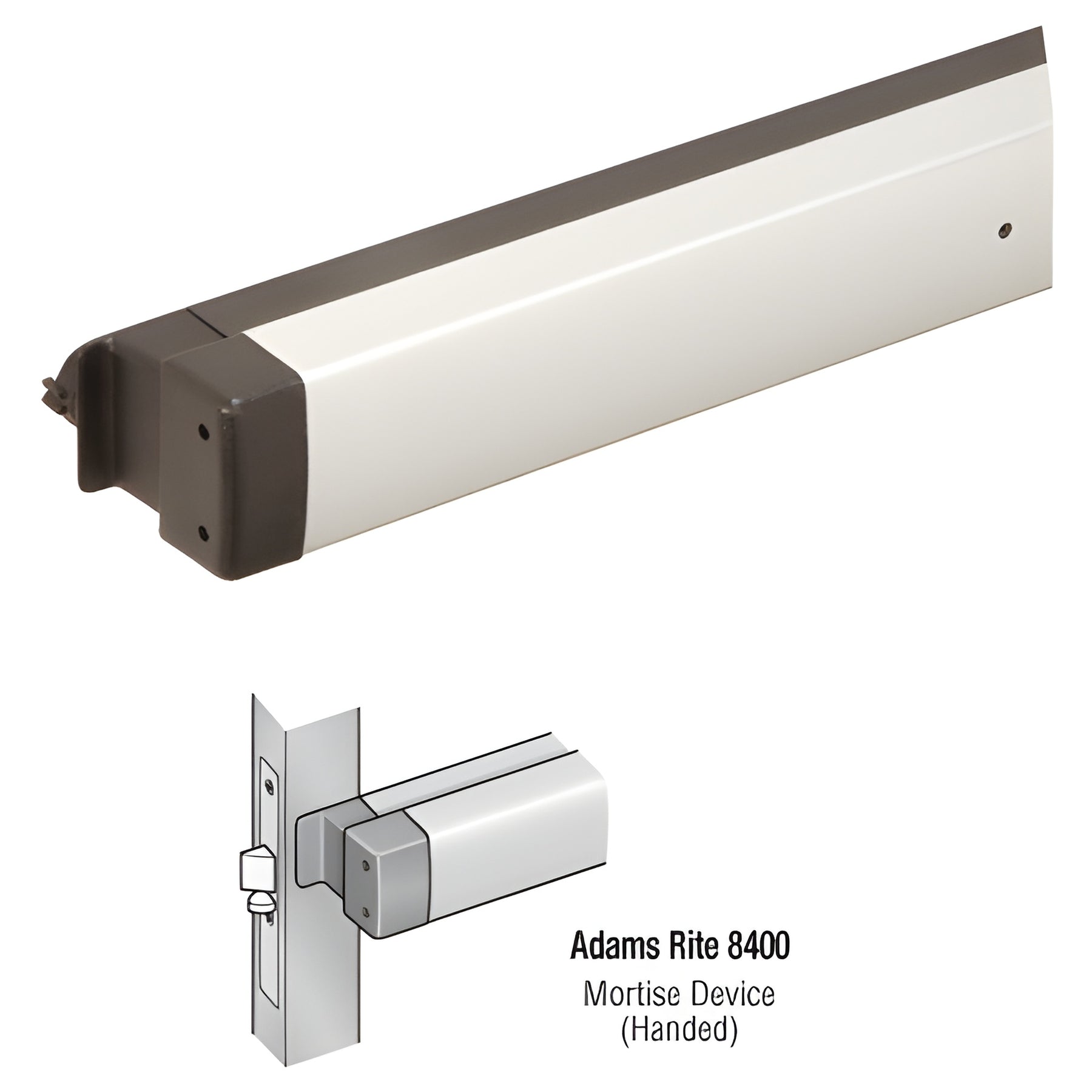

Adams Rite® 8400 Series Panic Mortise Only Right Hand 42", Clear Anodized

Finish (2)

Clear Anodized
Dark Bronze

Overview

SKU	DH84111R042
Sold as	1 Each
Brand	Adams Rite
Certification	ANSI A156.3 Grade 1
Door Height	96
Door Thickness	1-3/4
Door Width	42
Finish/Color:	Clear Anodized
Handing	Right Hand, Left Hand Reverse Bevel
Includes	Mounting Hardware
Material	Aluminum
Minimum Stile Width	2
Model	84111
Panic Bar Base Height	2-3/4
Panic Bar Projection	2-5/8
Panic Dogging	Standard Hex Key Dogging
Panic Type	Mortise Exit Devise
Push Pad Width	29-1/4
Recommended Door Type	Aluminum, Wood, Hollow Metal
Replacement Parts	DL2170SCKDDU, DL2170Y8KDDU, Special Order
Series	8400
UL Listed	Yes

Description

Product Details

Fits Door Stiles as Narrow as 2" (51 mm)
UL Listed and Tested to ANSI A156.3, Grade 1
Easy-to-Install

The 8400 Series Narrow Stile Mortise Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with mortise locking solution. Designed for use in single door applications.
