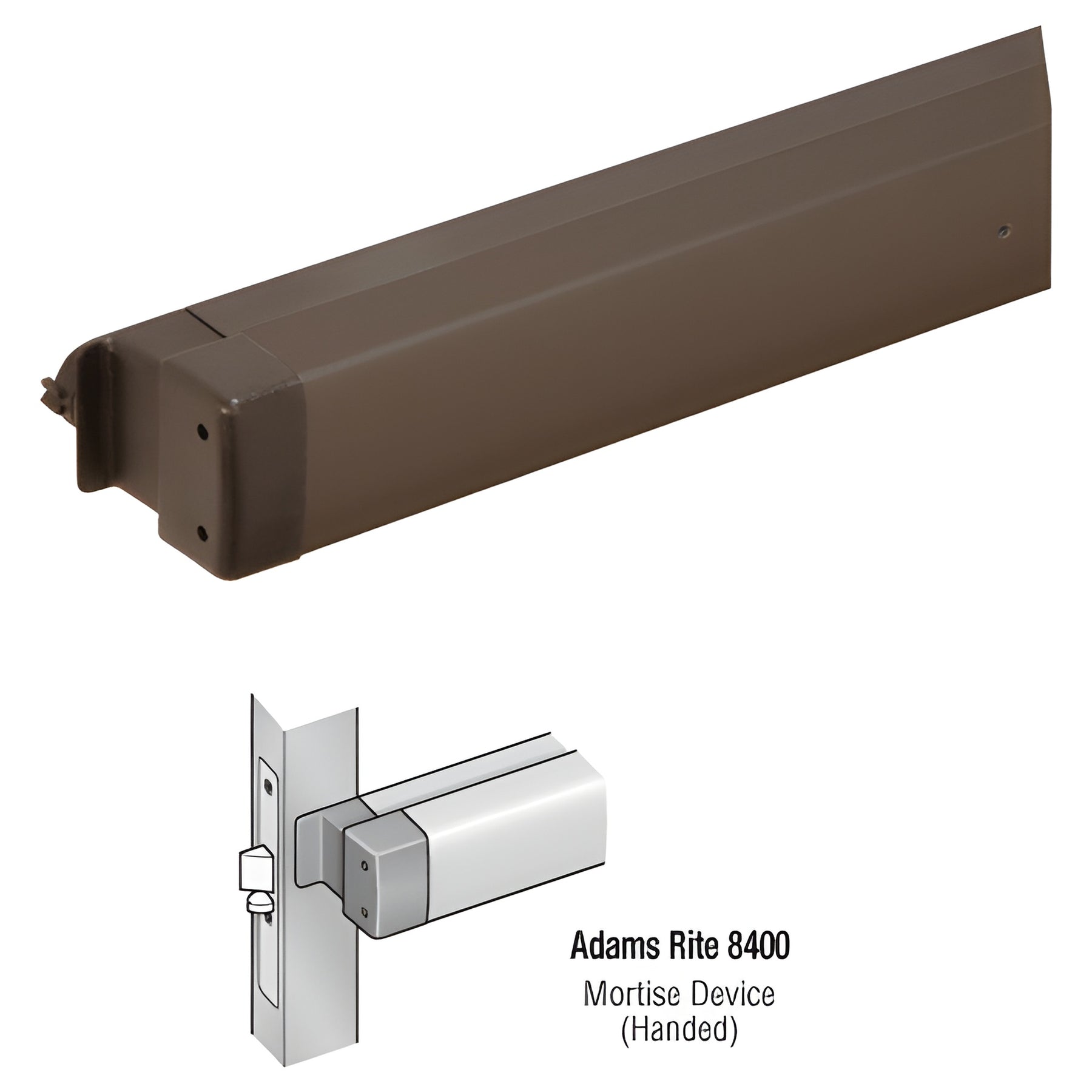

Adams Rite 8400 Series 42" Right-Hand Panic Mortise Exit Dark Bronze
Item# DH84122R042
Shipping Weight: 9.65 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.65 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Brand
Adams Rite
Certification
ANSI A156.3 Grade 1
Door Height
96
Door Thickness
1-3/4
Door Width
42
Finish/Color
Dark Bronze
Handing
Right Hand, Left Hand Reverse Bevel
Includes
Mounting Hardware
Material
Aluminum
Minimum Stile Width
2
Model
84222
Panic Bar Base Height
2-3/4
Panic Bar Projection
2-5/8
Panic Dogging
Standard Hex Key Dogging
Panic Type
Mortise Exit Devise
Push Pad Width
29-1/4
Recommended Door Type
Aluminum, Wood, Hollow Metal
Replacement Parts
DL2170SCKDDU, DL2170Y8KDDU, Special Order
Series
8400
UL Listed
Yes
- Fits door stiles as narrow as 2" (51 mm)
- UL Listed and tested to ANSI A156.3, Grade 1 for highest durability
- Easy-to-install mortise exit device for single-door aluminum applications
The 8400 Series Narrow Stile Mortise Exit Device (SKU: DH84122R042) is a life-safety, mortise locking solution engineered for narrow stile aluminum doors. Ideal for single-door commercial and institutional entrances, it combines Grade 1 performance with compact narrow-stile compatibility for reliable egress and long-term durability.
