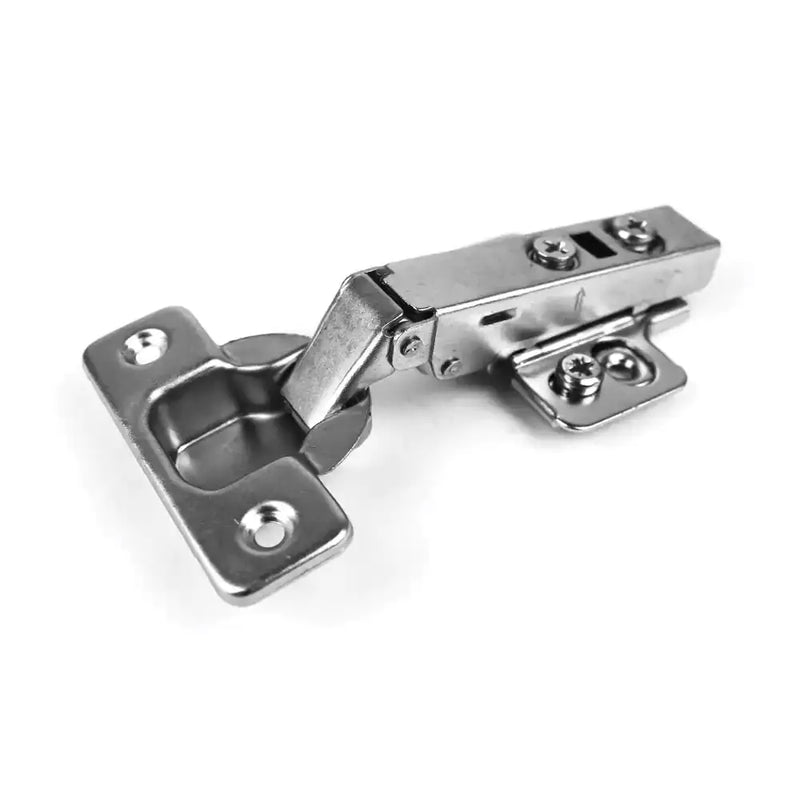

CGS Cushion Close Self Closing Face Frame Hinge - PLASTIC RESTRICTOR CLIP - 200 Units Per Case
Item# 243-2011
Shipping Weight: 1.763696 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1 - 200 Units Per Case
Unit of Measure: Each
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
SKU/Description
| Code | Description |
|---|---|
| 243-1016 | 110 Degree Clip Cushion Hinge, Full OL, with 8mm dowels |
| 243-1017 | 110 Degree Clip Cushion Hinge, Half OL, with 8mm dowels |
| 243-1018 | 110 Degree Clip Cushion Hinge, Inset, with 8mm dowels |
| 243-1019 | 110 Degree Clip Cushion Hinge, Full OL, without dowels |
| 243-1020 | 110 Degree Clip Cushion Hinge, Half OL, without dowels |
| 243-1021 | 110 Degree Clip Cushion Hinge, Inset, without dowels |
| 243-1022 | 125 Degree Clip Cushion Hinge, Full OL, with 8mm dowels |
| 243-1023 | 125 Degree Clip Cushion Hinge, Full OL, without dowels |
| 243-1026 | 110 Degree Clip Cushion Hinge, Full OL, Quick Mount |
| 243-1027 | 110 Degree Clip Cushion Hinge, Half OL, Quick Mount |
| 243-1028 | 110 Degree Clip Cushion Hinge, Inset, Quick Mount |
| 243-1051 | 165 Degree Clip Cushion Hinge, Full OL, without dowels |
| 243-1052 | 30 Degree Clip Cushion Hinge, without dowels |
| 243-1053 | 45 Degree Clip Cushion Hinge, without dowels |
| 243-1054 | 90 Degree Clip Blind Corner Cushion Hinge, without dowels |
| 243-1055 | 165 Degree Clip Cushion Hinge, Full OL, with 8mm dowels |
| 243-1056 | 30 Degree Clip Cushion Hinge, with 8mm dowels |
| 243-1057 | 45 Degree Clip Cushion Hinge, with 8mm dowels |
| 243-1058 | 90 Degree Clip Blind Corner Cushion Hinge, with 8mm dowels |
| 243-1059 | 165 Degree Wide Angle Clip Cushion Hinge, Half OL, with 8mm dowels |
| 243-1060 | 165 Degree Wide Angle Clip Cushion Hinge, Inset, with 8mm dowels |
| 243-1077 | 165 Degree Wide Angle Clip Cushion Hinge, Inset, without dowels |
| 243-1078 | 135 Degree Pie Cut Corner Hinge, Inset, with 8mm dowels |

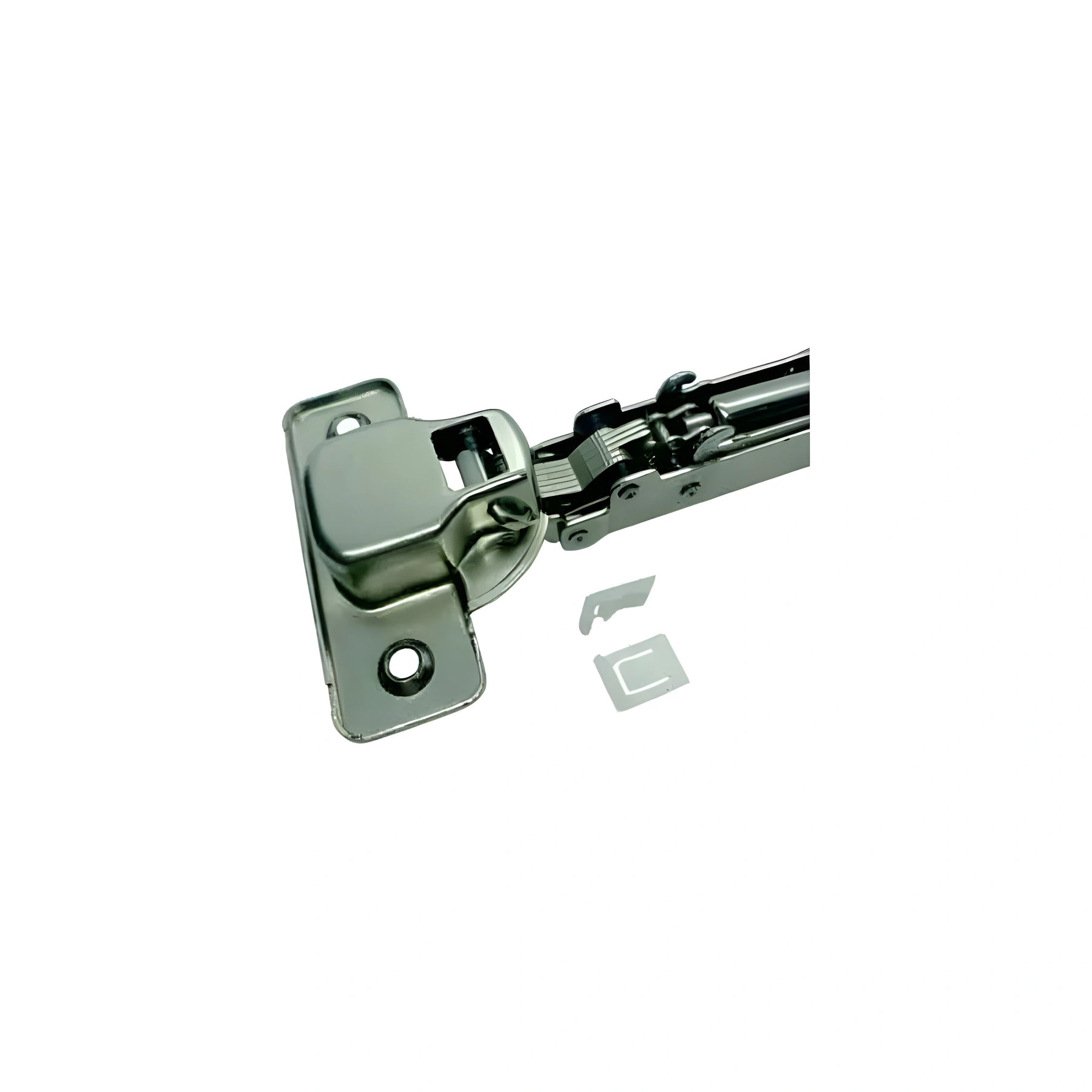

| 243-2011 | Angle Reduction Clip, Reduces angle to 95 degrees |
Specifications
-
Type: Cushion-close hinge
-
Mounting Style: Frameless
-
Opening Angle: 105° (standard)
-
Material: Heavy-duty steel
-
Finish: Nickel-plated (corrosion resistant)
-
Overlay Options: ½” overlay (other sizes available upon request)
-
Cup Diameter: 35 mm (standard European hinge cup size)
-
Cup Depth: 11.5–12 mm
-
Adjustment: 3-way (height, side-to-side, and depth)
-
Closing Mechanism: Integrated cushion close damper
-
Door Thickness Compatibility: 14 mm – 22 mm (typical range)
-
Mounting Plate: Clip-on or screw-on design (depending on model)
-
Cycle Testing: Exceeds 50,000 open/close cycles
Features
-
Cushion-Close Technology: Prevents slamming with a smooth, cushioned close
-
Durable Construction: Built for long-lasting performance in high-use environments
-
Easy Installation: Designed for quick alignment and secure mounting
-
Adjustable Settings: Allows fine-tuning for precise door alignment
-
Concealed Hinge Style: Provides a clean, seamless look inside cabinets
-
Corrosion-Resistant Finish: Ensures longevity, even in kitchens and bathrooms
-
Quiet Operation: Reduces noise for a premium user experience
-
Versatile Application: Suitable for residential, commercial, and RV cabinetry
Applications
-
Kitchen Cabinets
-
Bathroom Vanities
-
Closet & Wardrobe Cabinets
-
Laundry & Utility Cabinets
-
Custom Cabinetry & Millwork
-
Office Furniture & Storage Units
-
Retail & Commercial Fixtures
-
Hospitality Installations
-
RV & Mobile Home Cabinetry
- Entertainment Centers
Hinges and Baseplates
Superior functionality begins with choosing the right hardware to suit your product needs. Comtrad carries an extensive selection of hinges and baseplates to help achieve the perfect installation, overlay and function of cabinet doors. Our self-close and cushion-close “Euro” style hinge products ensure reliable smooth and silent action, and are available in a number of different overlays and degrees of motion, from standard 110 degree to specialty pie-cut 135 degree hinges.
Smooth operation, durable functionality
Our cabinet hinges and baseplates are KCMA and Woodwork Institute approved and are made from solid plated steel tested against approved standards to guarantee quality and durability. We stand behind every one of our hinge and baseplate products with a limited lifetime warranty. Whether a traditional, self-close, or cushion-close model, our hinges and baseplates are known for superior quality and reliability.
Custom Sourcing
Should your project require a specific hinge, baseplate or accessory that is not currently available from our catalogue, or if you require private labelling, we are happy to assist you with custom sourcing. Our long-standing relationships with suppliers enable us to source new or customized products quickly, and obtain quotes from qualified professionals equipped to manufacture on your behalf. Our custom sourcing services take the guesswork out of vendor choice, guarantee a high standard of quality, and relieve you of the financial and logistical burden of overseas imports.
