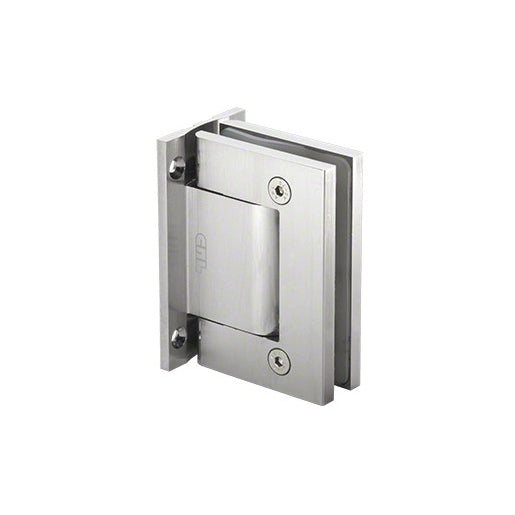

CRL Satin Anodized Vernon Oil Dynamic Full Back Plate Wall-to-Glass Hinge - Hold Open

Adjustable Closing Speed

Yes

Finish/Color

Satin Anodized

Glazing Thickness

5/16 in., 3/8 in., 1/2 in., 9/16 in. (8 mm, 10 mm, 12 mm, 14 mm)

Hold Open

Yes

Material

Aluminum

Maximum Door Width

39 in. (991 mm)

Mounting TypeWall Mount

Weight Capacity221 lbs. (100.2 kg)

Width1 in. (25 mm)

The CRL Vernon Oil Dynamic Wall-to-Glass Hinge in Satin Anodized finish is a premium solution for self-closing interior glass doors. Designed specifically for doors made from 5/16" to 9/16" (8 to 13.52 mm) thick monolithic tempered glass, this hinge offers adjustable closing speed and a hold-open function at 90°, making it ideal for bathroom entrances—not for use on shower doors.

Engineered with a durable aluminum body, this full back plate hinge provides sleek aesthetics and dependable performance. A practical alternative to traditional floor closers or overhead patch fittings, it allows for a clean, all-glass installation without structural modifications. The hinge swings in and out 90°, with secure stops at 0°, +90°, and -90°.

Oil Dynamic technology combines mechanical self-closing features with hydraulic control, enabling smooth, controlled door operation. Ambidextrous in design, it delivers flexibility in installation and long-lasting functionality—tested to over one million cycles.

Specifications:

• Glass Thickness: 5/16" to 9/16" (8 to 13.52 mm)
• Construction: Aluminum
• Swing: 90° inward and outward (H8060 model swings one direction only)
• Closing Type: Self-closing from 0° to 80°
• Hold Open: Yes, at 90° (except H8060)
• Cut-Out Required: Yes
• Includes: Snap-in gaskets for various thicknesses, hex screws
• Max Door Width (2 Hinges): 39" (1 m)
• Max Door Weight (2 Hinges): 220 lbs. (100 kg)

Note: Do not use more than two hinges per door. For non-standard applications, consult CRL Technical Sales. Only use the provided template for accurate cut-out dimensions. Other brands may not match CRL cut-outs.

Product images shown represent actual item or close likeness. Colors may vary depending on your display settings. Contact CRL Customer Service for verified shipping weights if required for order processing.

Installation Instructions

H8010 H8011 H8015 H8060 Installation Instructions

Templates

H8010 Template

CAD Drawings - dwg

H8010BT Detailed CAD Drawings.dwg

Cleaning & Maintenance

Product Care and Maintenance
