CRL

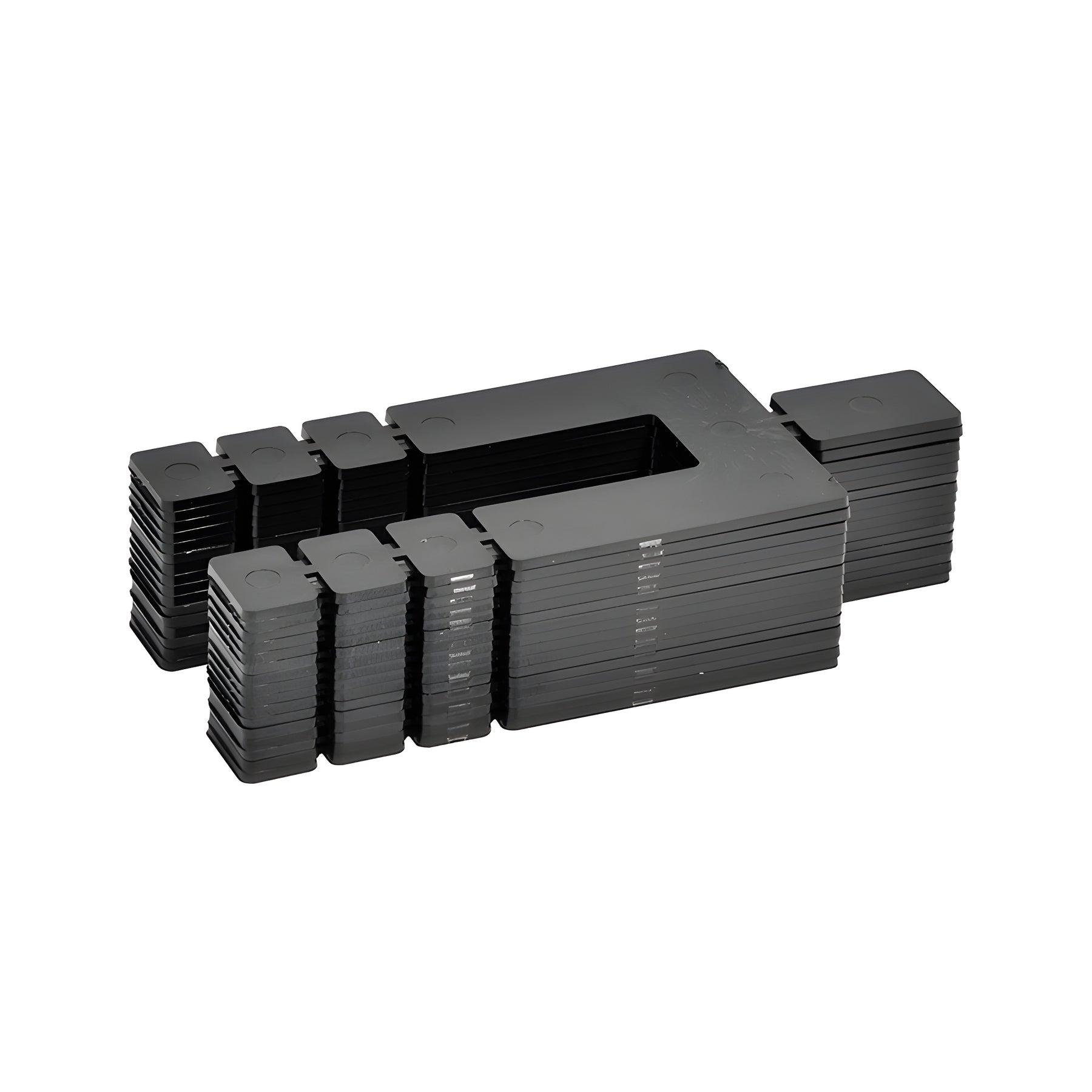

CRL 1/16 in x 3-1/2 in Shimstack Glazing Shims
Item# KRS16
Shipping Weight: 0.192 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1000
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.192 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1000
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Case Quantity
1000
Height
1 in. (25.4 mm)
Length
3-1/2 in. (89 mm)
Material
High-Impact Styrene Plastic
Slot Width
5/8 in. (16 mm)
Thickness
1/8 in. (3 mm)
Top Notch Width
3/4 in. (19 mm)
Width
1-7/8 in. (48 mm)
- Adjustable in thickness and length with a simple snap
- Choose thickness from 1/16" to 1" (1.6 to 25.4 mm)
- Installation tab for easy insertion and removal
- Individual shims snap off for precise leveling every time
CRL Shimstack Shims (SKU: KRS16) provide fast, low-cost leveling for windows, doors, curtainwalls, storefront tubing and other architectural components. Each one-inch stack contains 16 heat-sealed pieces — snap off individual shims to reach the exact thickness you need for window shimming, door shimming, and curtainwall alignment.
The convenient installation tab lets you insert the shim fully into the gap and break off the tab after placement. Shimstacks are molded from black, fire-resistant, non-staining high-impact plastic with an ASTM-rated compressive strength of 5000 psi. Available in two lengths: regular and extra long for long-reach applications.
Differentiators:
- Precision snap-off design for consistent, repeatable thickness control
- Fire-resistant, non-staining material suitable for architectural installations
- Two lengths available for standard and extended reach tasks
Product Warning:
Click here to view product lab testing results, and here to view shim properties.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs before ordering, please contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor settings.
Order KRS16 Shimstack shims today for reliable, adjustable shimming on windows, doors, and curtainwalls.
