CRL 1/2" Wide Square End Face Plate Mortise Lock 3-11/16" Screw Holes for W & F Doors

Overview

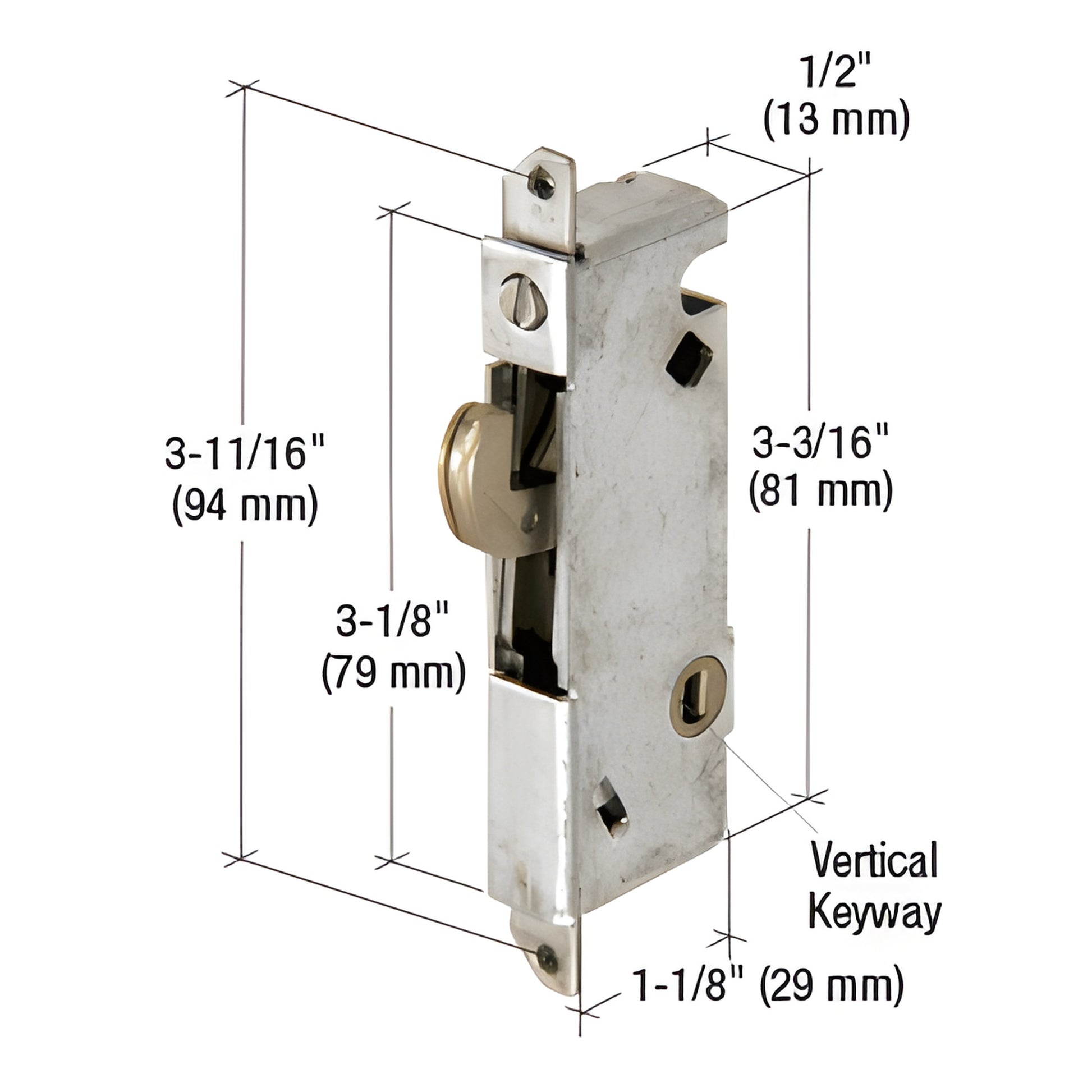

SKU	E2012
Sold as	1 Pack
Front Face Length	3-1/8
Keyway Orientation	Vertical
Lock Body Depth	1-1/4
Lock Body Length	3-3/16
Lock Body Width	1/2
Material	Steel
Mounting Holes Top And Bottom	3-11/16

Description

Product Details

Vertical Keyway

This CRL Mortise Lock has a steel housing and hook. The hook projection is adjustable. The keyway is in a vertical position with the hook fully extended. The unit is 1/2" wide and has a square end face plate. It fits on doors manufactured by W & F. Each package contains one lock with installation fasteners.
