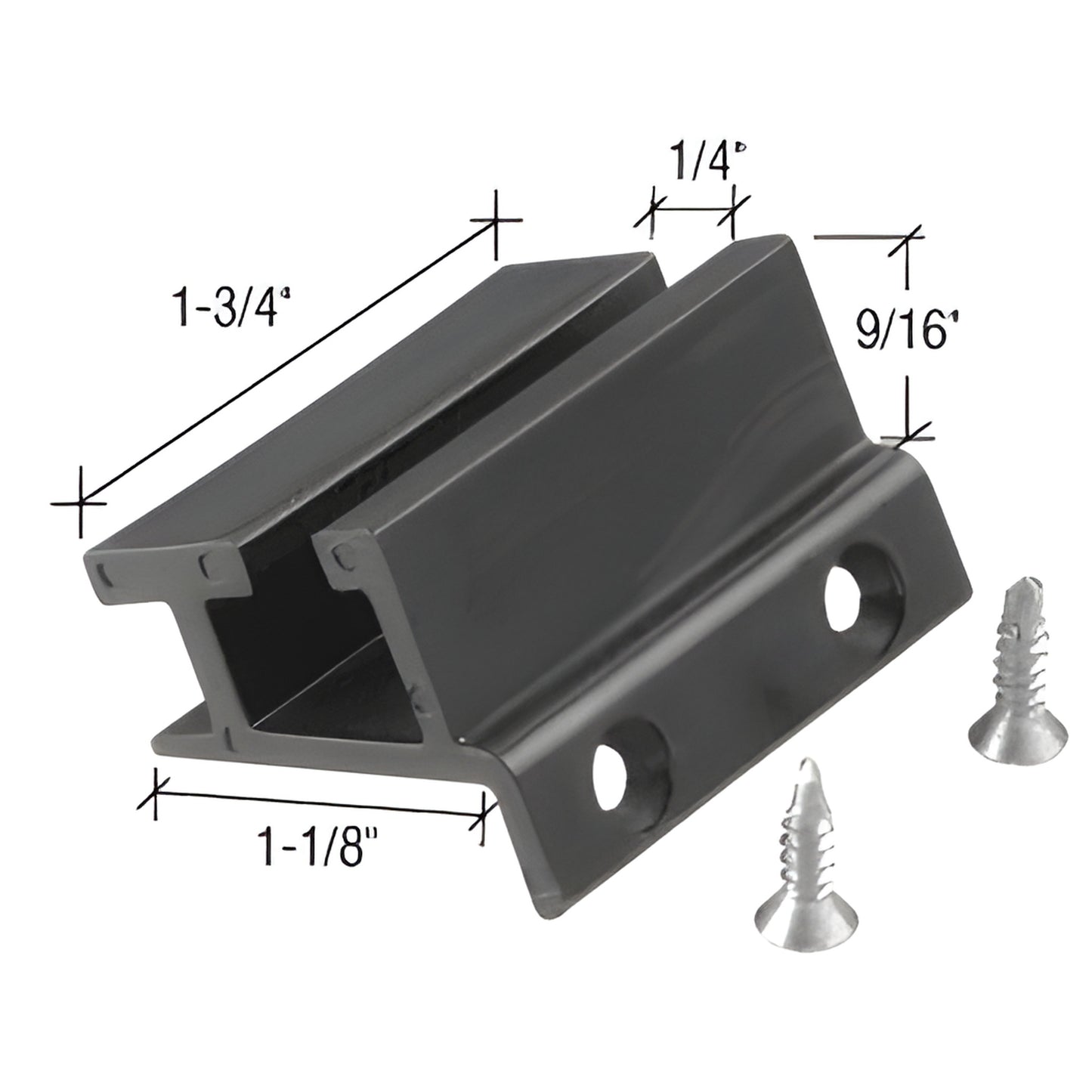

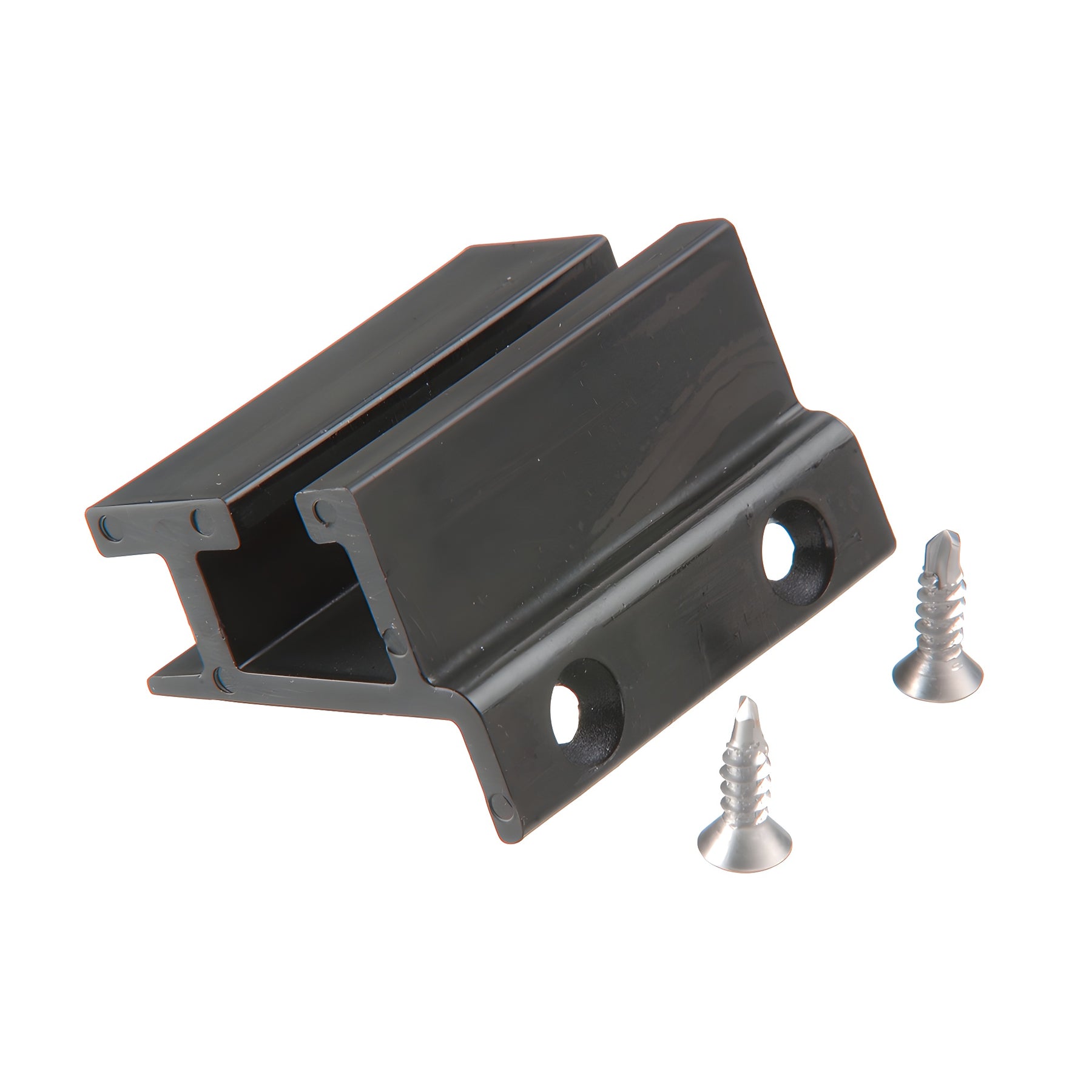

CRL 1/4" Bottom Guide for Cottage Series Sliding Doors (CK/DK)

• Designed for 1/4" (6.3 mm) Glass
• Use Monolithic Tempered Glass

CRL Bottom Guide for CK, DK, and EK Series Sliders — SKU: DK6914. These bottom guide extrusions are engineered for frameless sliding shower door systems using 1/4" (6 mm) glass and work with CK, DK, and EK series hardware. Use them to add extra panels for a custom designer enclosure or to build a complete sliding unit by combining individual parts.

Stock lengths of headers, header fillers, bottom sills, sidelite sills, side jambs, top hangers and accessory items are available to complete multi-panel and custom installations. These extrusions share identical profiles with the components included in our Frameless Sliding Shower Door Kits, enabling consistent appearance and fit.

When you wet-glaze the fixed panel into these extrusions, the assembly provides structural support and removes the need for vertical metal posts. Combine them with compatible brackets and corner hardware (see Cat. Nos. BWB2, BHC90, BHC135, BHC373) to create multi-angle enclosures or wider inline units.

NOTE: Multi-angle enclosures or wider inline units require separate orders for these extrusions and the matching hardware packages; they are not included with standard frameless sliding shower door kits for inline enclosures.

SPECIFICATIONS:
Materials: Extrusions (Aluminum), Knob (Solid Brass), Towel Bar (Tubular Brass)
For Glass Thickness: 1/4" and 3/8" (6 and 10 mm) — glass not included (use monolithic tempered glass)
Maximum Slider Size:
1/4" (6 mm) Glass: 60" W x 72" H or 72" W x 60" H;
3/8" (10 mm) Glass: 72" W x 80" H

For custom kits, drawings, or technical assistance with DK6914,
