CRL 10" Brushed Stainless Solid Offset Pull Handle
Item # M1741032D
$260.96
CAD
Finish (3)
-
Dark Bronze -
Clear Anodized -
Brushed Stainless Steel
Mounting Center To Center (2)
- 8 in.
- 10 in.
Mounting Type (2)
- Single Sided
- Back-to-Back
Overview
| SKU | M1741032D |
|---|---|
| Sold As | 1 Each |
| Diameter | 1 in. (25 mm) |
| Finish/Color | Brushed Stainless Steel |
| Material | Stainless Steel |
| Mounting Center To Center | 10 in. (254 mm) |
| Mounting Type | Single Sided |
Description
- Single-Sided Solid Handle in Two Sizes
- Available in Several Finishes
- 1" (25 mm) Diameter Solid Stainless Steel

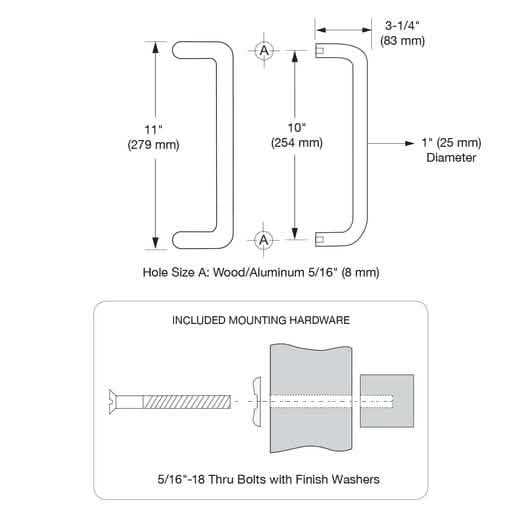

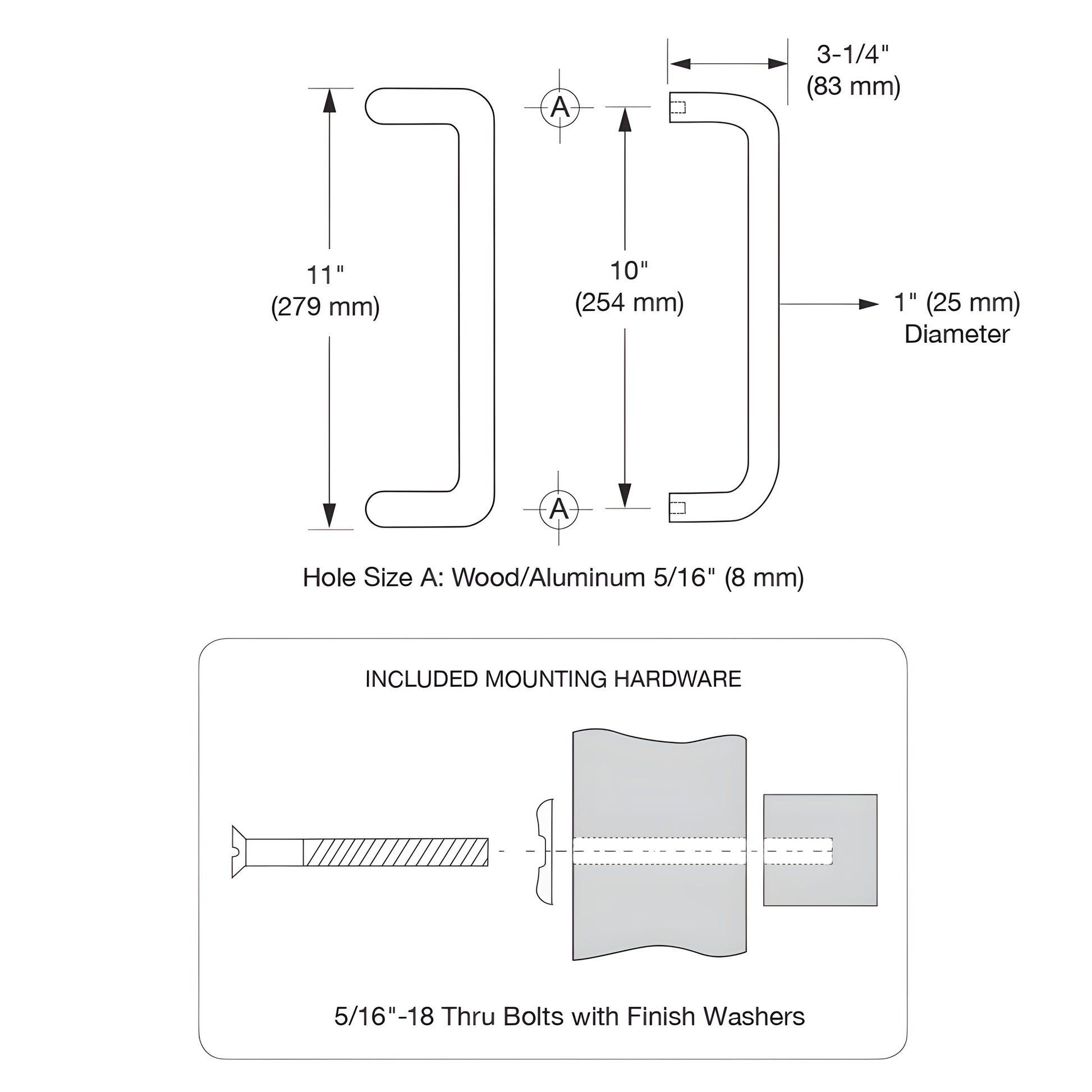

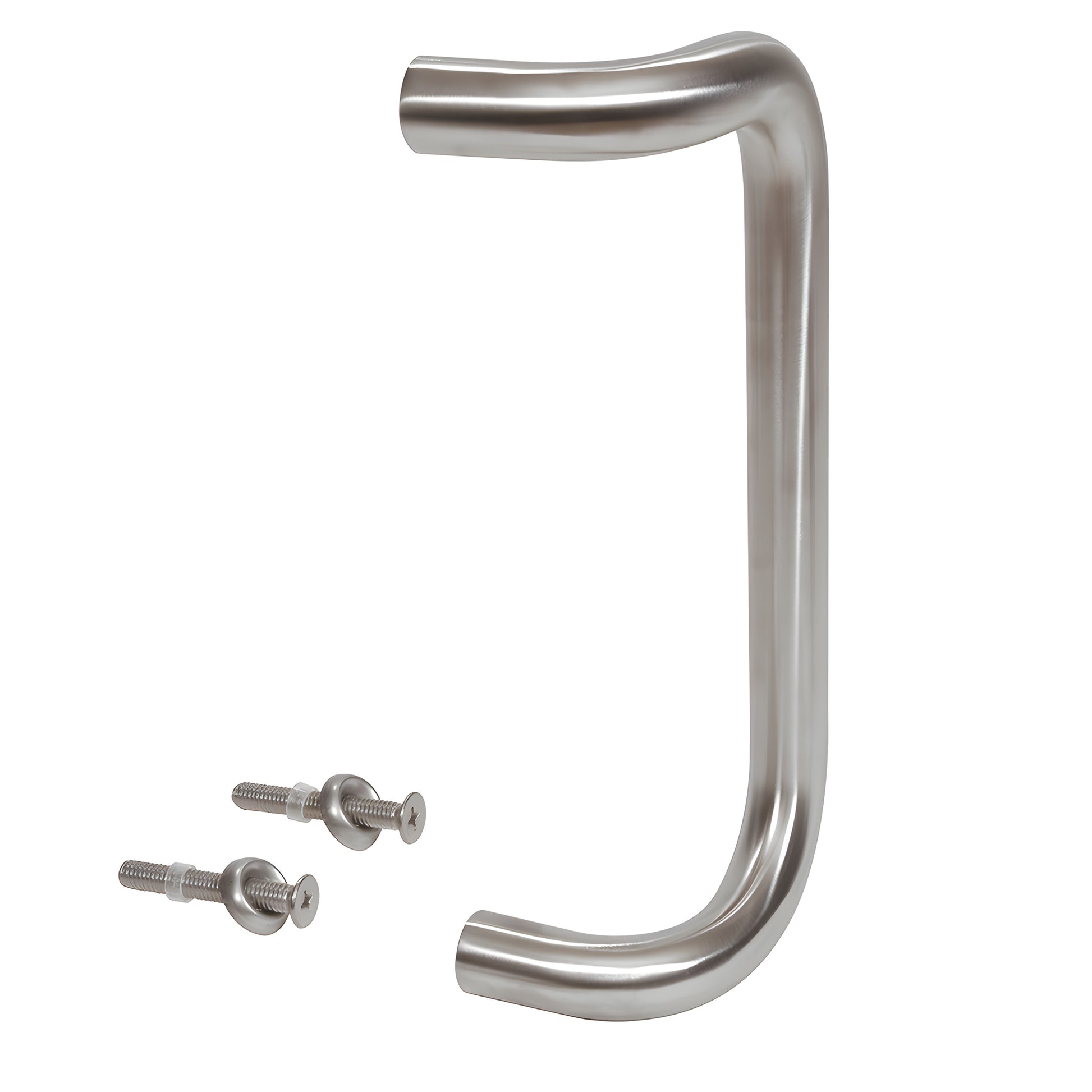

CRL 1" (25.4 mm) Diameter Solid Offset Pull Handles have an overall projection height of 3-1/4" (83 mm), and an offset clearance of 2-1/4" (57 mm). They are supplied with two, 5/16"–18 thru-bolts and finish washers. All Offset Pulls are packed individually.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.Specifications
Specifications
Cleaning & Maintenance
