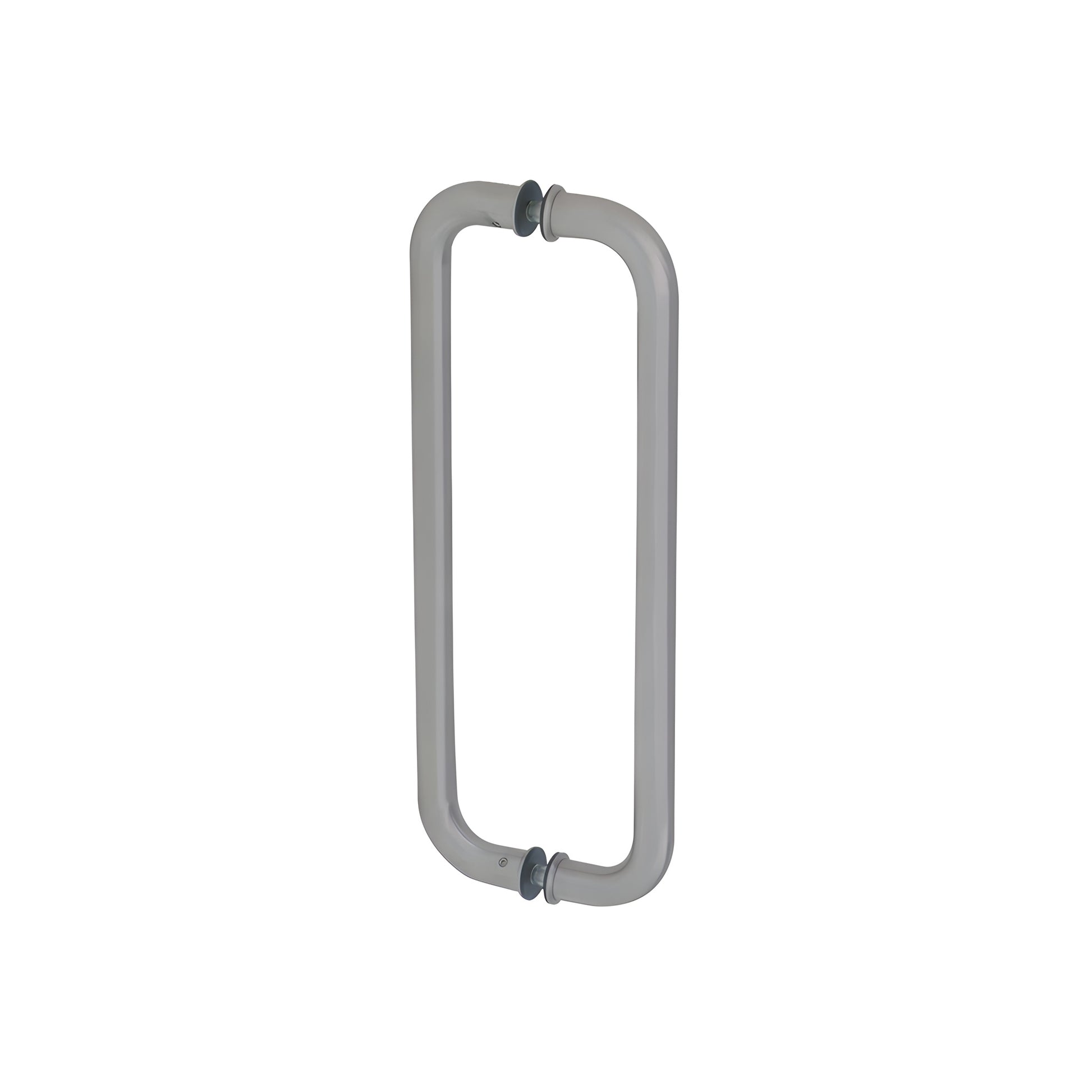

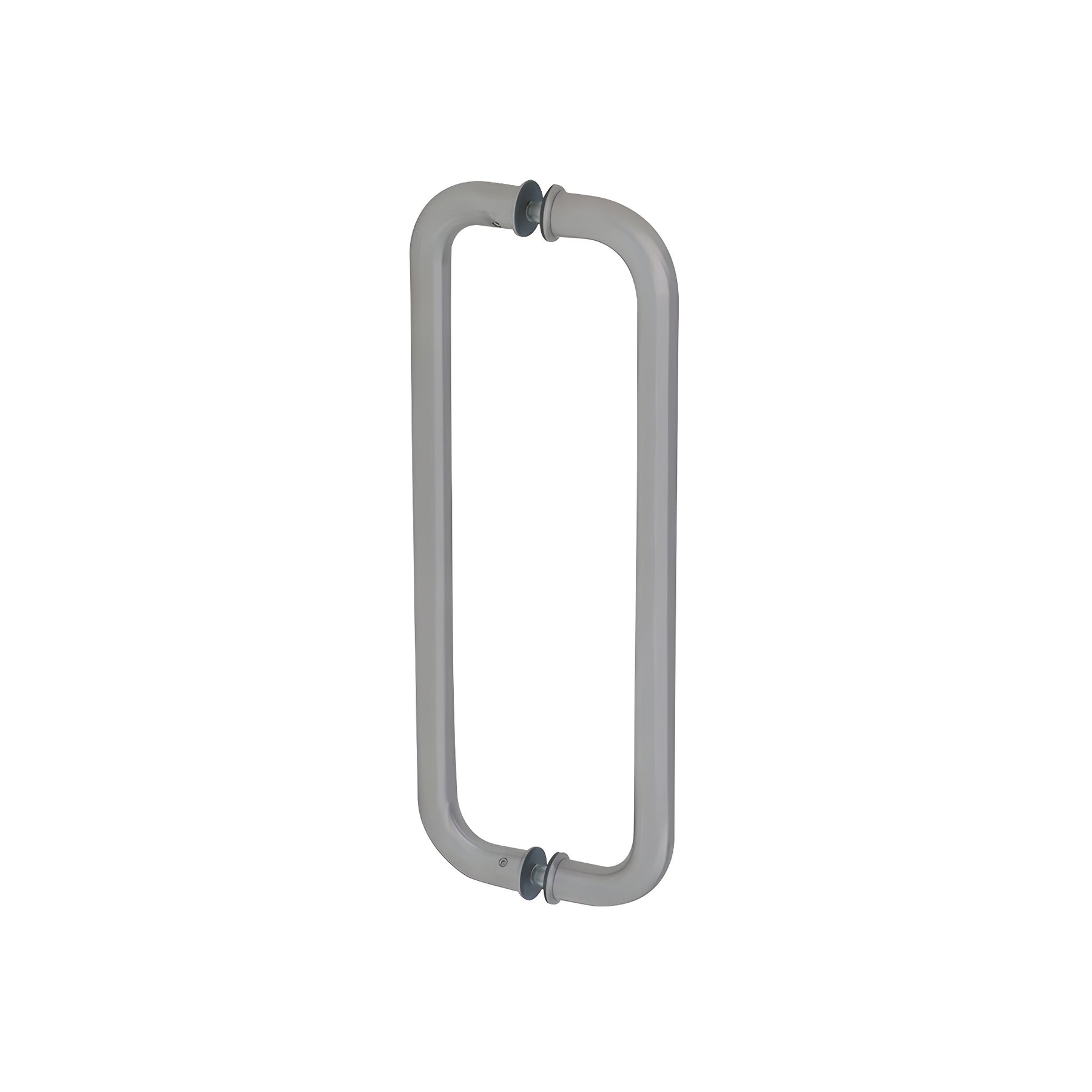

CRL 12 in Brushed Stainless Glass Door Pull Handle
CRL 12 in Brushed Stainless Glass Door Pull Handle
Regular price
$101.23 CAD
Regular price
Sale price
$101.23 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CM12X12BS
Shipping Weight: 1.645 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.645 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel

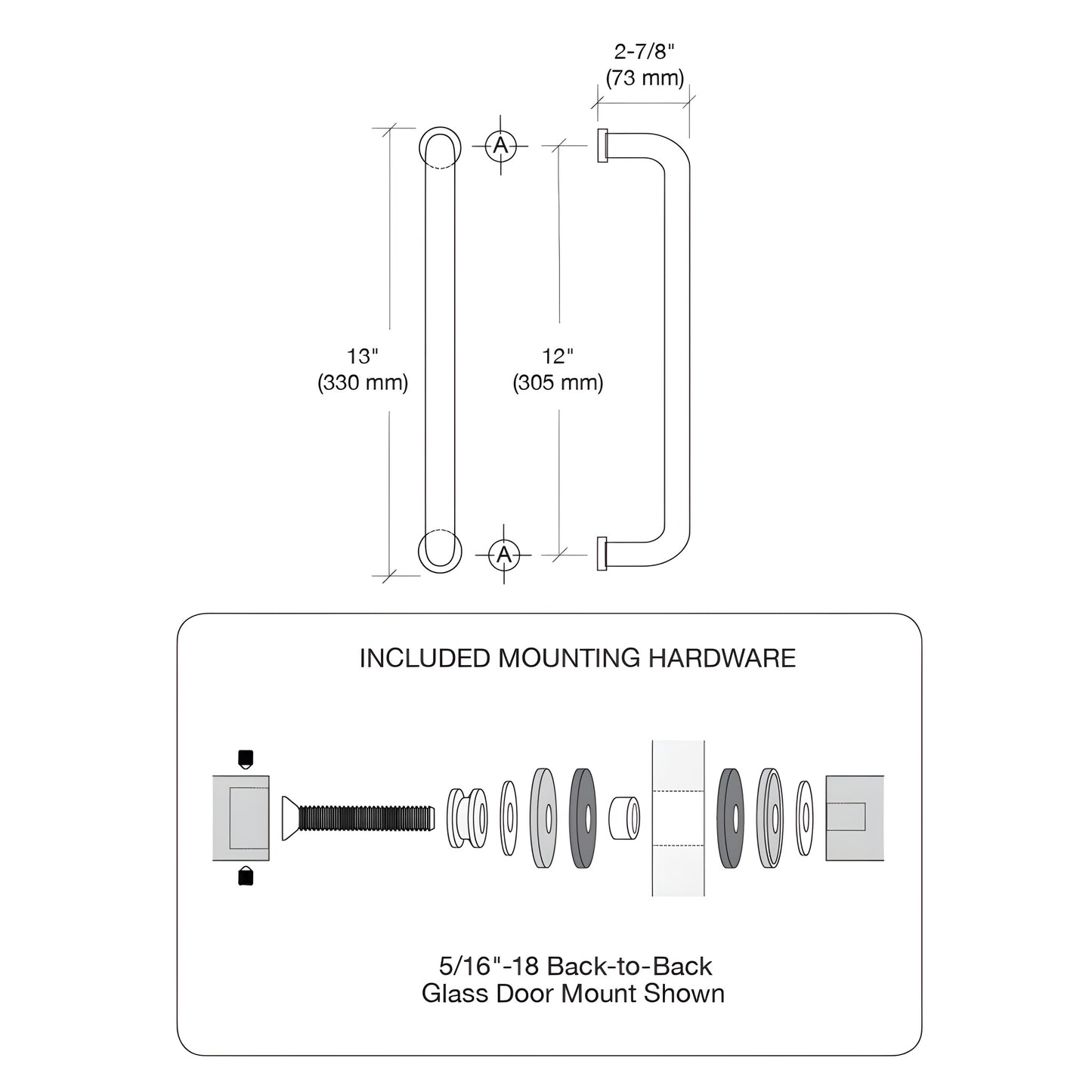

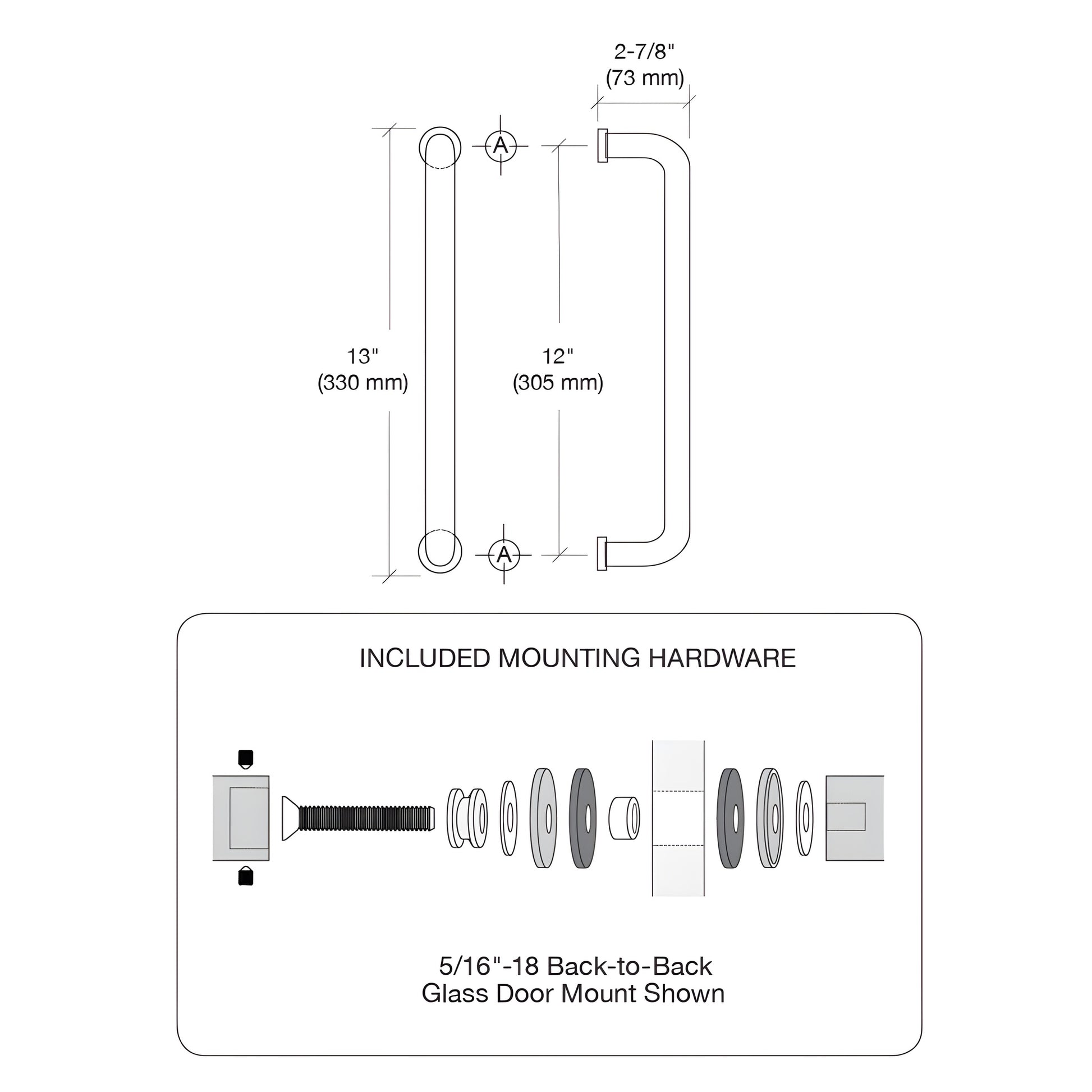

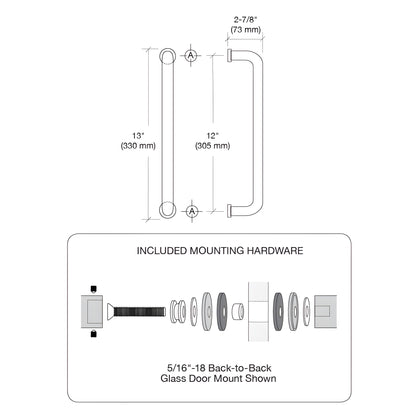

Mounting Center To Center
12 in. (305 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- Stocked in up to five architectural finishes
- For use with 3/8" to 3/4" (10 to 19 mm) monolithic tempered glass
- Complete with matching finish metal washers and through-bolts for secure mounting
- Designed for monolithic tempered glass applications
This CRL Glass Mounted Standard Pull Handle (SKU: CM12X12BS) is available in three lengths and multiple architectural finishes for commercial and residential glass doors.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1" (25 mm) diameter stainless steel or brass tubing. *1-1/4" (32 mm) diameter stainless steel on CD24X24BS125 model only.
Projection: 3" (76 mm) from face of glass to outside of handle
Glass Fabrication Required:
Two 5/8" (16 mm) diameter holes
INCLUDES:
2 each: through-bolts for glass mounting
4 each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Highlights: robust through-bolt mounting for secure glass door installation, matching finish washers for a cohesive look, and options in stainless steel or brass tubing for architectural hardware projects.
Order now to get architectural-grade glass-mounted pull handles ready for commercial and residential tempered glass doors.
