• Satin anodized back-to-back glass pull handle, 12 in center-to-center, 1 in diameter for 3/8-3/4 in glass (SKU CM12X12SA)
  • Satin anodized back-to-back glass pull handle, 12 in center-to-center, 1 in diameter for 3/8-3/4 in glass (SKU CM12X12SA)
1 2

CRL

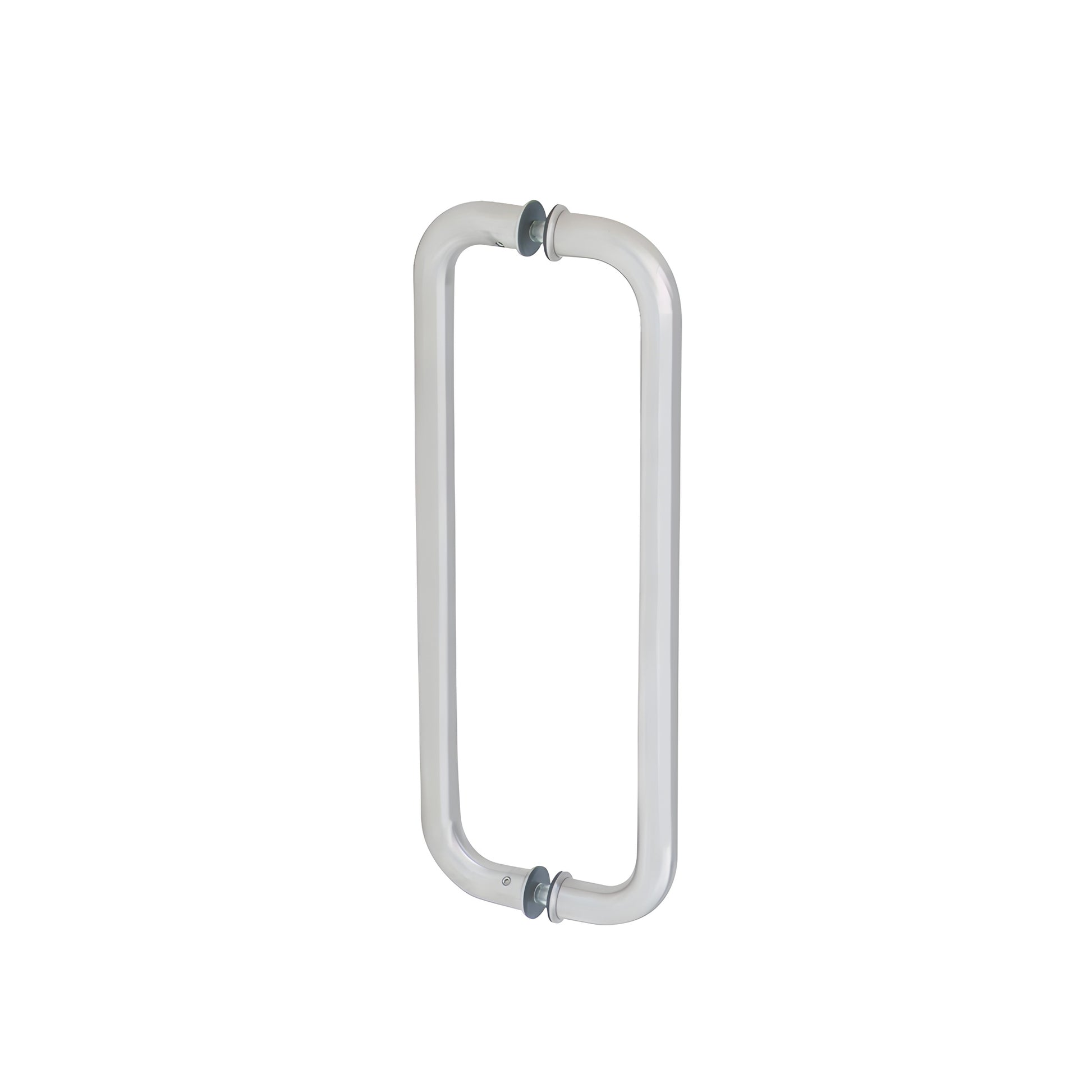

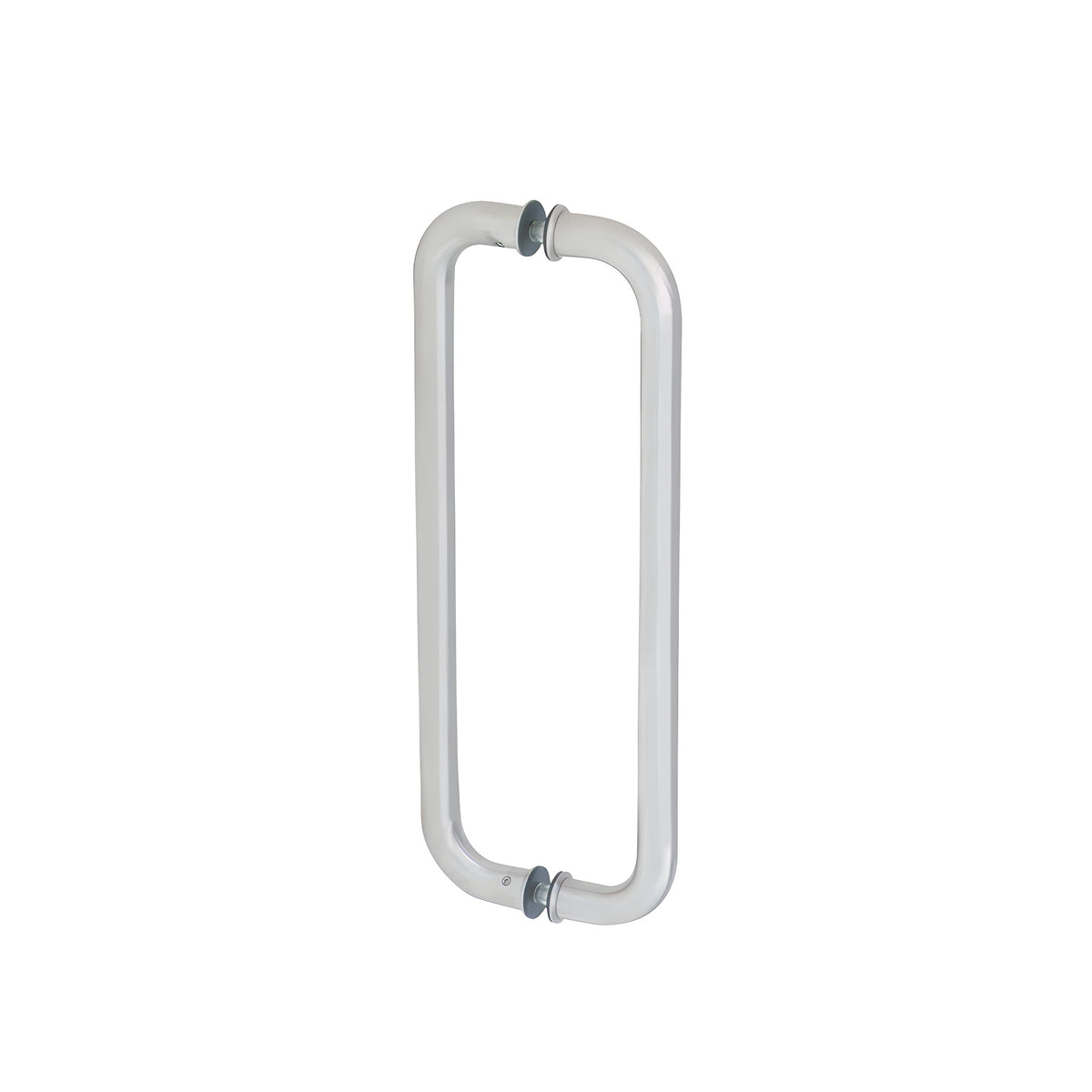

CRL 12 in Satin Anodized Glass Door Pull Handle

CRL 12 in Satin Anodized Glass Door Pull Handle

$151.85 CAD
$151.85 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CM12X12SA
Shipping Weight: 2.55 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Diameter
1 in. (25 mm)
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Center To Center
12 in. (305 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes

Overview

  • Stocked in up to five architectural finishes for seamless design integration
  • Designed for 3/8" to 3/4" (10 to 19 mm) monolithic tempered glass
  • Includes matching finish metal washers and through-bolts for secure glass mounting
  • Recommended use: monolithic tempered glass doors and panels (commercial and residential glass door pull handle)

This CRL Glass Mounted Standard Pull Handle (SKU: CM12X12SA) is available in multiple sizes and architectural finishes for commercial glass doors, storefronts, and interior glass partitions.

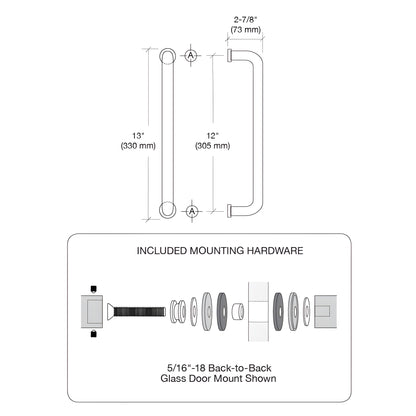

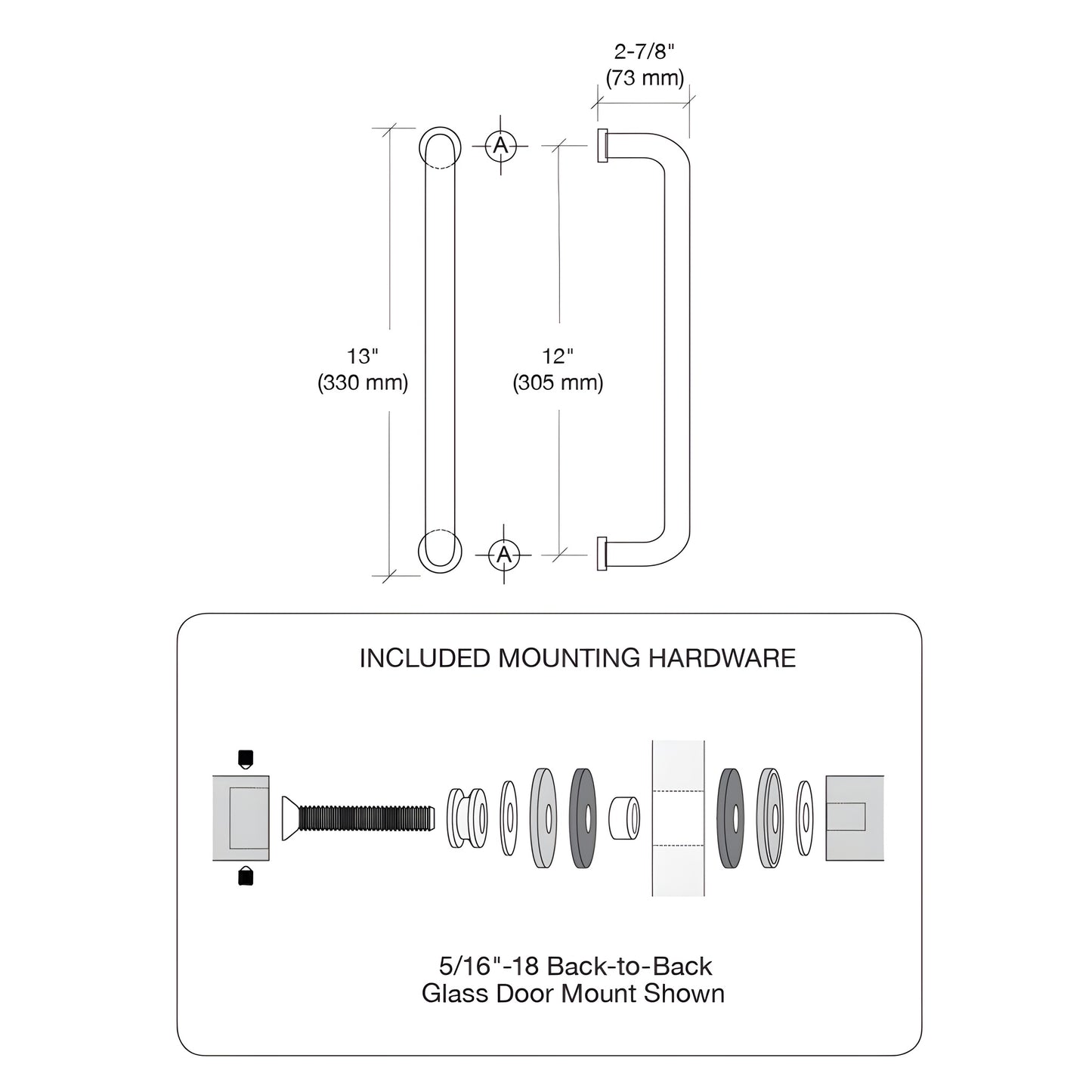

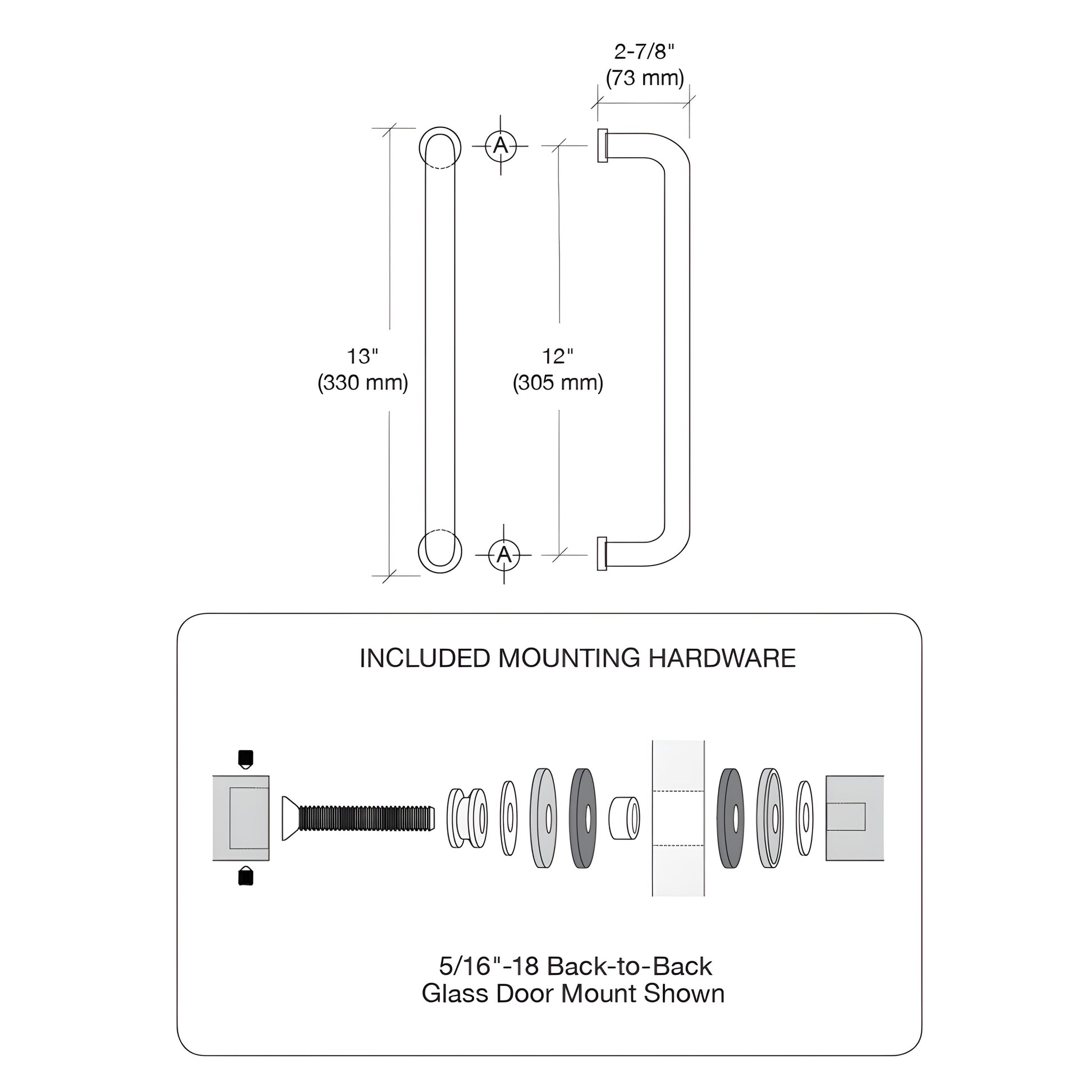

SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction:
1" (25 mm) diameter stainless steel or brass tubing. *1-1/4" (32 mm) diameter stainless steel on CD24X24BS125 model only.
Projection: 3" (76 mm) from face of glass to outside of handle
Glass Fabrication Required:
Two 5/8" (16 mm) diameter holes

INCLUDES:
2 — through-bolts for glass mounting
4 — 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets

Most shipping weights are approximate. If exact weight is required for shipping cost calculation, contact CRL Customer Service before ordering. Product images are accurate representations; actual colors may vary by monitor.



Order SKU CM12X12SA or contact CRL Customer Service to confirm finish availability and lead times.
