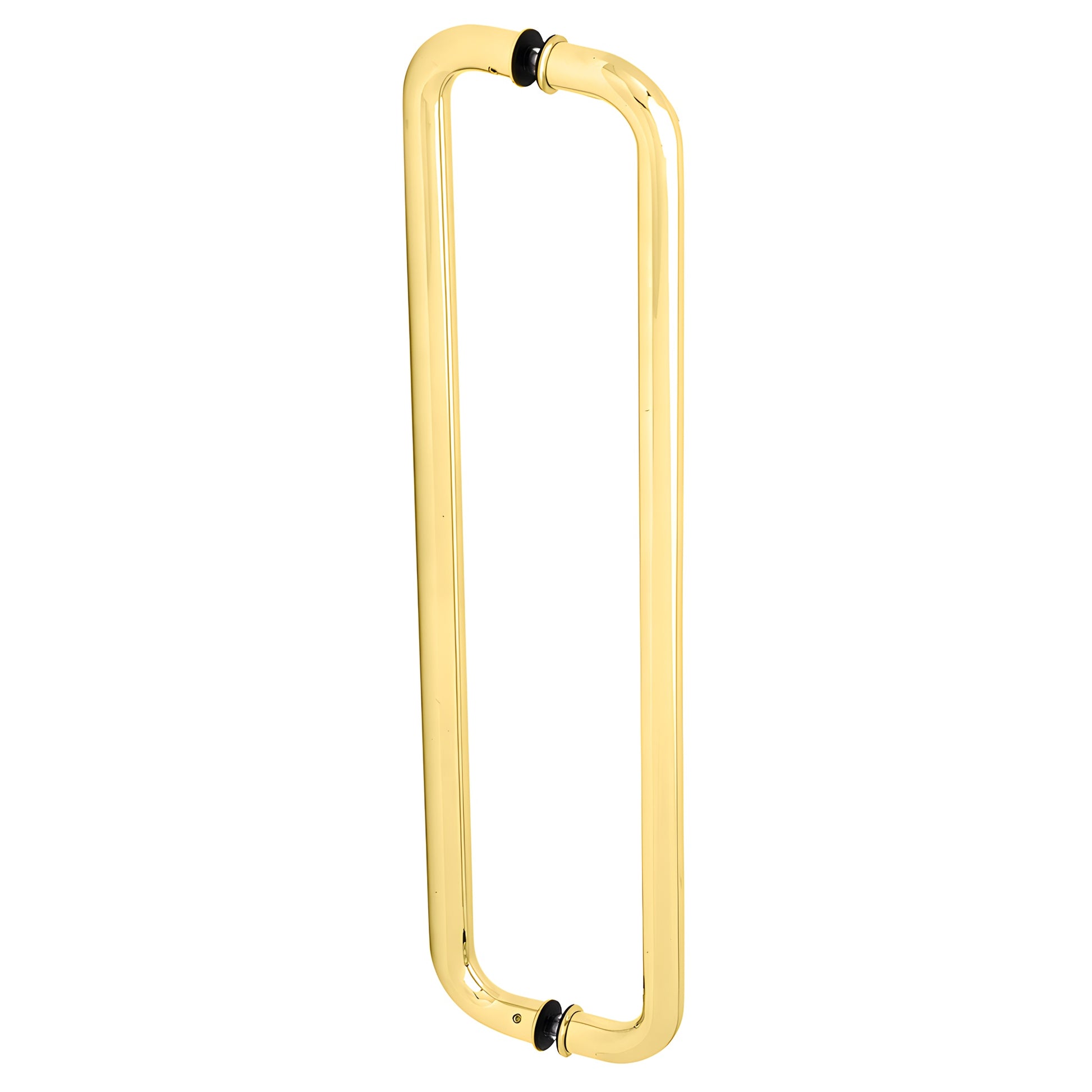

• Polished brass 24" center glass-mounted pull handle, 1" tube, back-to-back mount with matching washers.
  • Polished brass 24" center glass-mounted pull handle, 1" tube, back-to-back mount with matching washers.
1 2

CRL

CRL 24 in Brass Glass Door Back-to-Back Pull Handle

CRL 24 in Brass Glass Door Back-to-Back Pull Handle

$224.54 CAD
$224.54 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CM24X24BR
Shipping Weight: 2.976 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Diameter
1 in. (25.4 mm)
Finish/Color
Polished Brass
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Center To Center
24 in. (610 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes

Overview

  • Stocked in up to five architectural finishes for coordinated commercial and residential projects
  • Compatible with 3/8" to 3/4" (10 to 19 mm) monolithic tempered glass
  • Complete with matching finish metal washers and through-bolts for secure glass mounting
  • Requires monolithic tempered glass and two 5/8" (16 mm) diameter holes

This CRL Glass Mounted Standard Pull Handle (SKU: CM24X24BR) is available in three sizes and multiple architectural finishes for glass doors, shower doors, and storefronts.

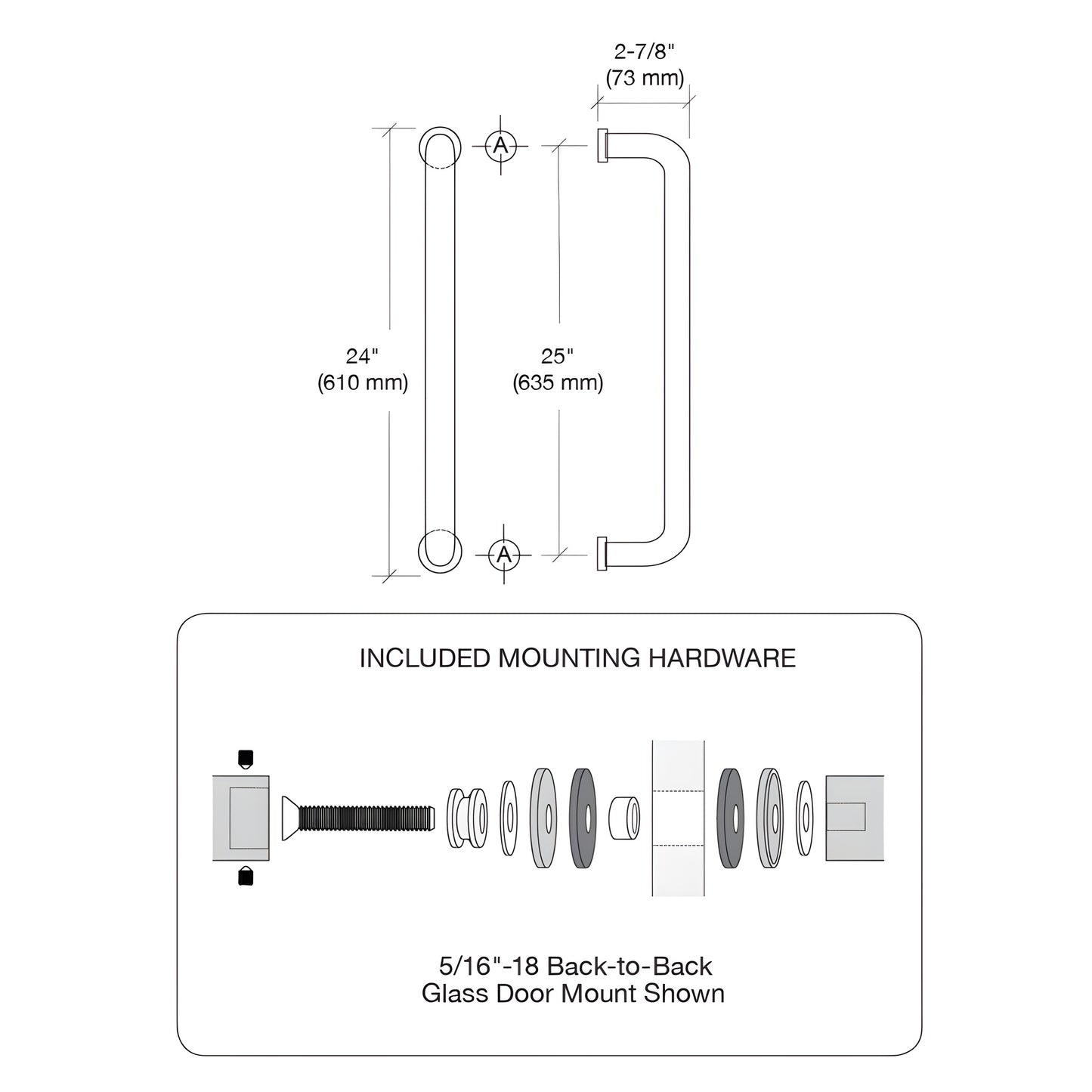

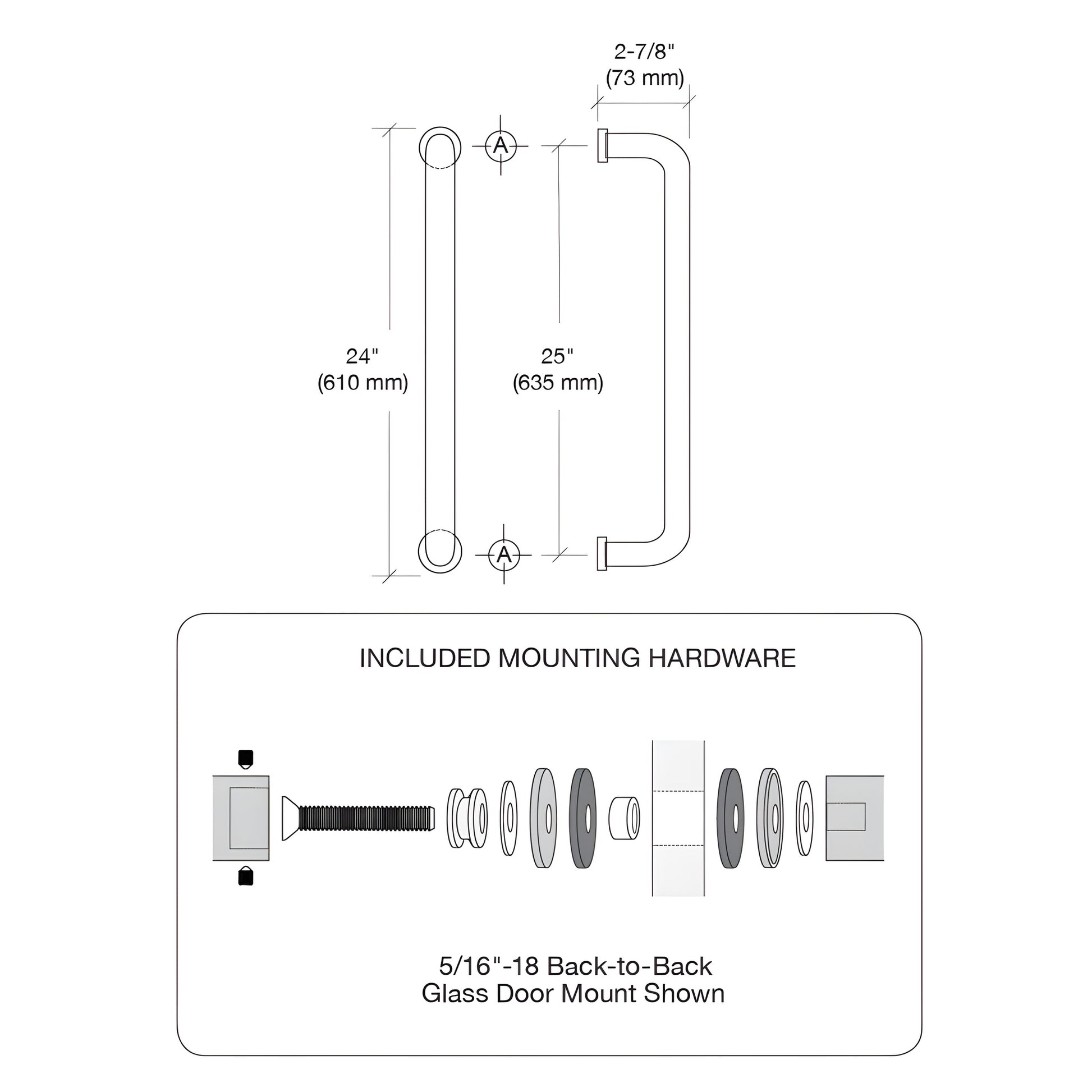

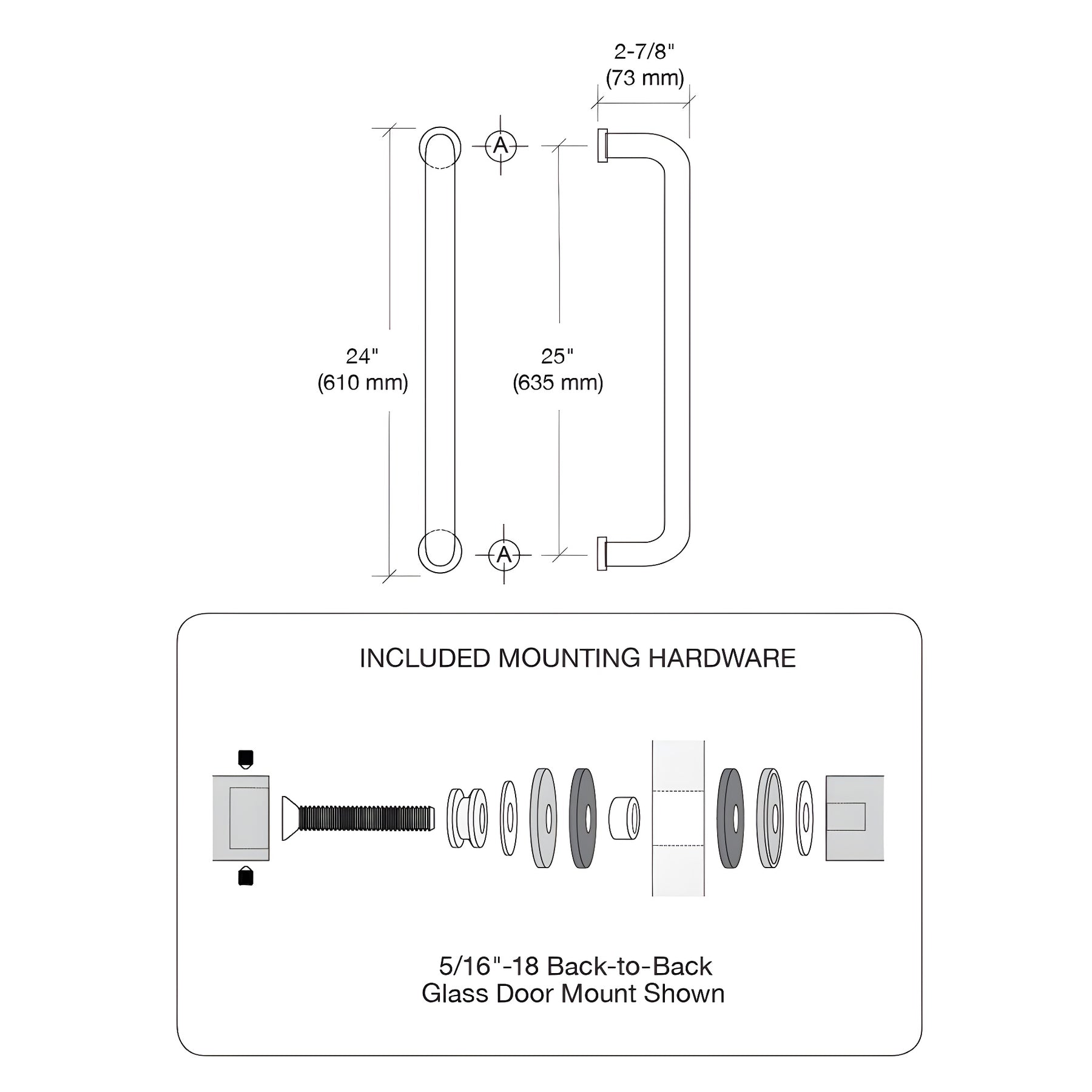

SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction: 1" (25 mm) diameter stainless steel or brass tubing. *1-1/4" (32 mm) diameter stainless steel (Cat. No. CD24X24BS125 model only).
Offset: 3" (76 mm) center-to-center
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes

INCLUDES:
2 each: through-bolts for glass mounting
4 each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor and video card.

Brass Finish Advisory:
Although durable, brass is prone to oxidation, which can cause a tarnished appearance over time regardless of initial packaging or storage. For details, see the Brass Finish Disclaimer in the Technical References section.


Ideal as a glass door pull for interior and exterior applications where an architectural finish and secure, glass-compatible mounting are required. Order SKU CM24X24BR today to match your project finish and size — contact us to confirm compatibility or place an order.
