CRL 24 in Polished Stainless Glass Door Pull Handle - Back-to-Back
CRL 24 in Polished Stainless Glass Door Pull Handle - Back-to-Back
Regular price
$180.42 CAD
Regular price
Sale price
$180.42 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CM24X24PS
Shipping Weight: 2.895 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.895 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25.4 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Center To Center
24 in. (610 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- Stocked in up to five architectural finishes
- For use with 3/8" to 3/4" (10 to 19 mm) glass
- Complete with matching finish metal washers and through-bolts for mounting
- Use monolithic tempered glass

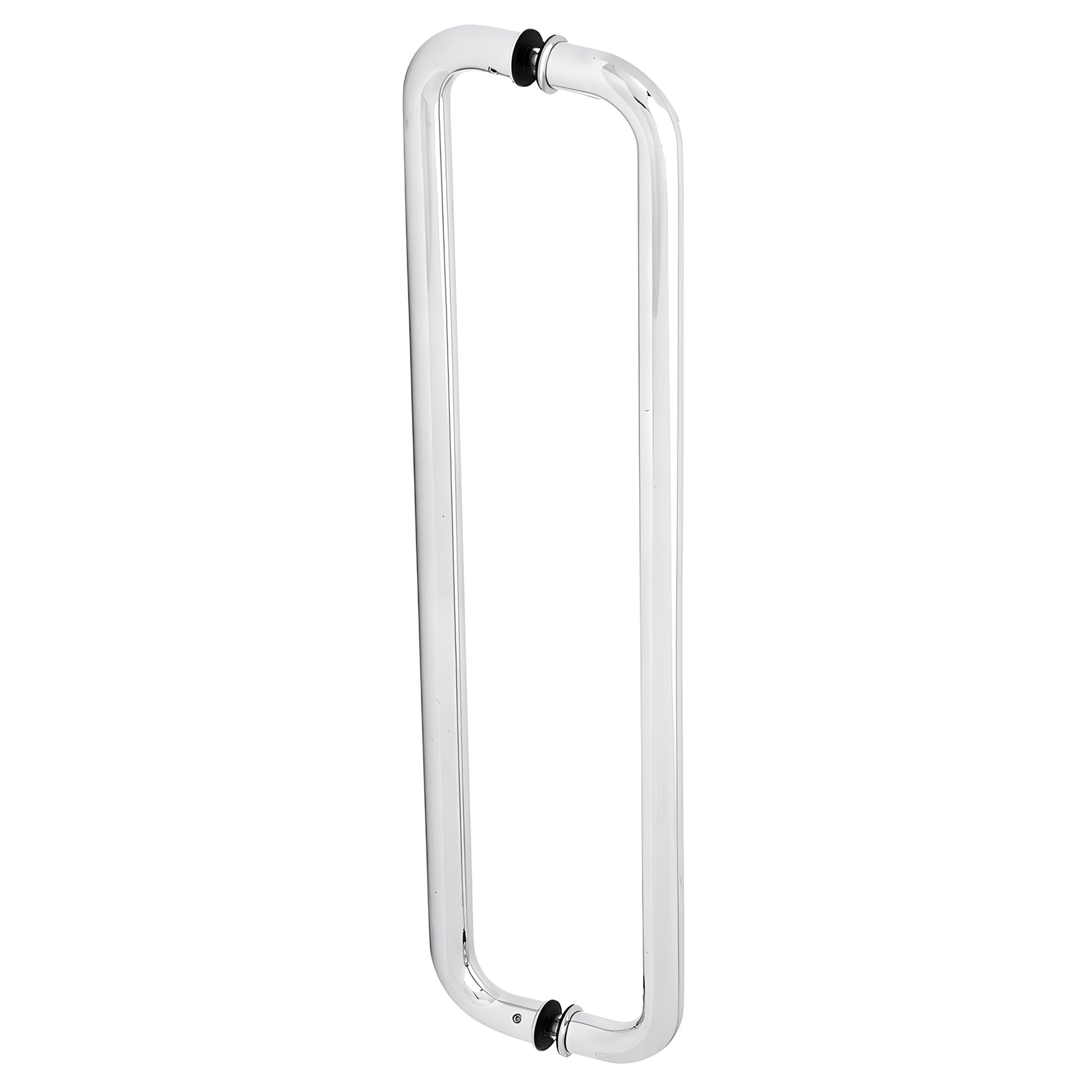

This CRL Glass Mounted Standard Pull Handle (SKU: CM24X24PS) fits glass doors and panels and is offered in multiple architectural finishes for commercial and residential applications.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction:
1" (25 mm) diameter stainless steel or brass tubing. *1-1/4" (32 mm) diameter stainless steel (Cat. No. CD24X24BS125 model only).
Offset: 3" (76 mm) center-to-center
Glass Fabrication Required:
Two 5/8" (16 mm) diameter holes

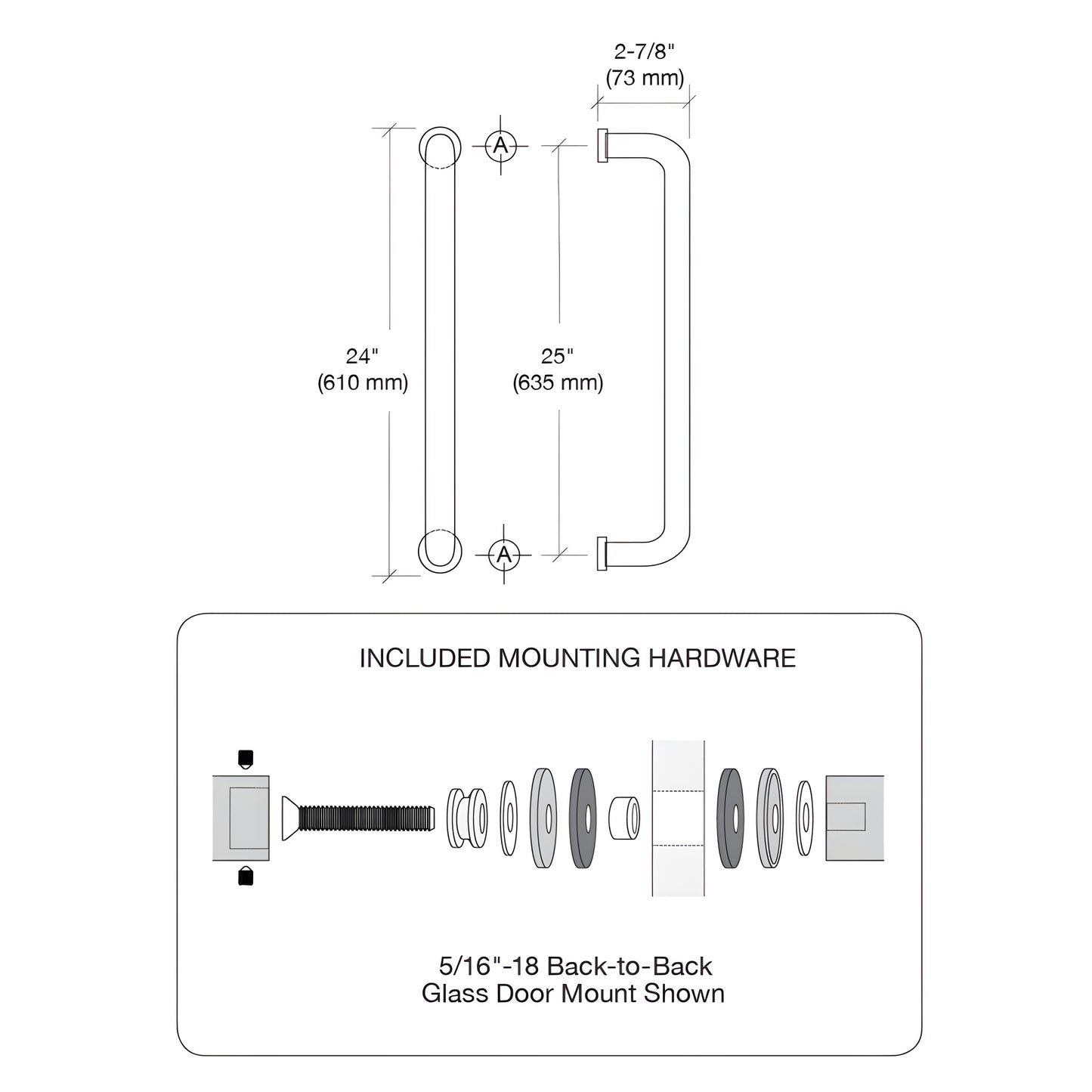

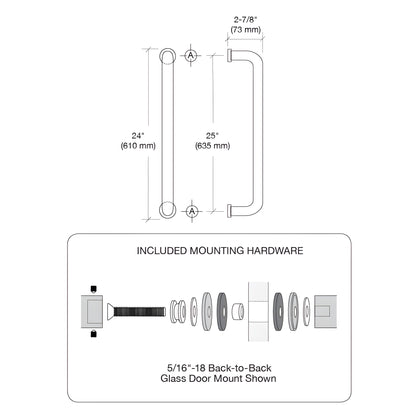

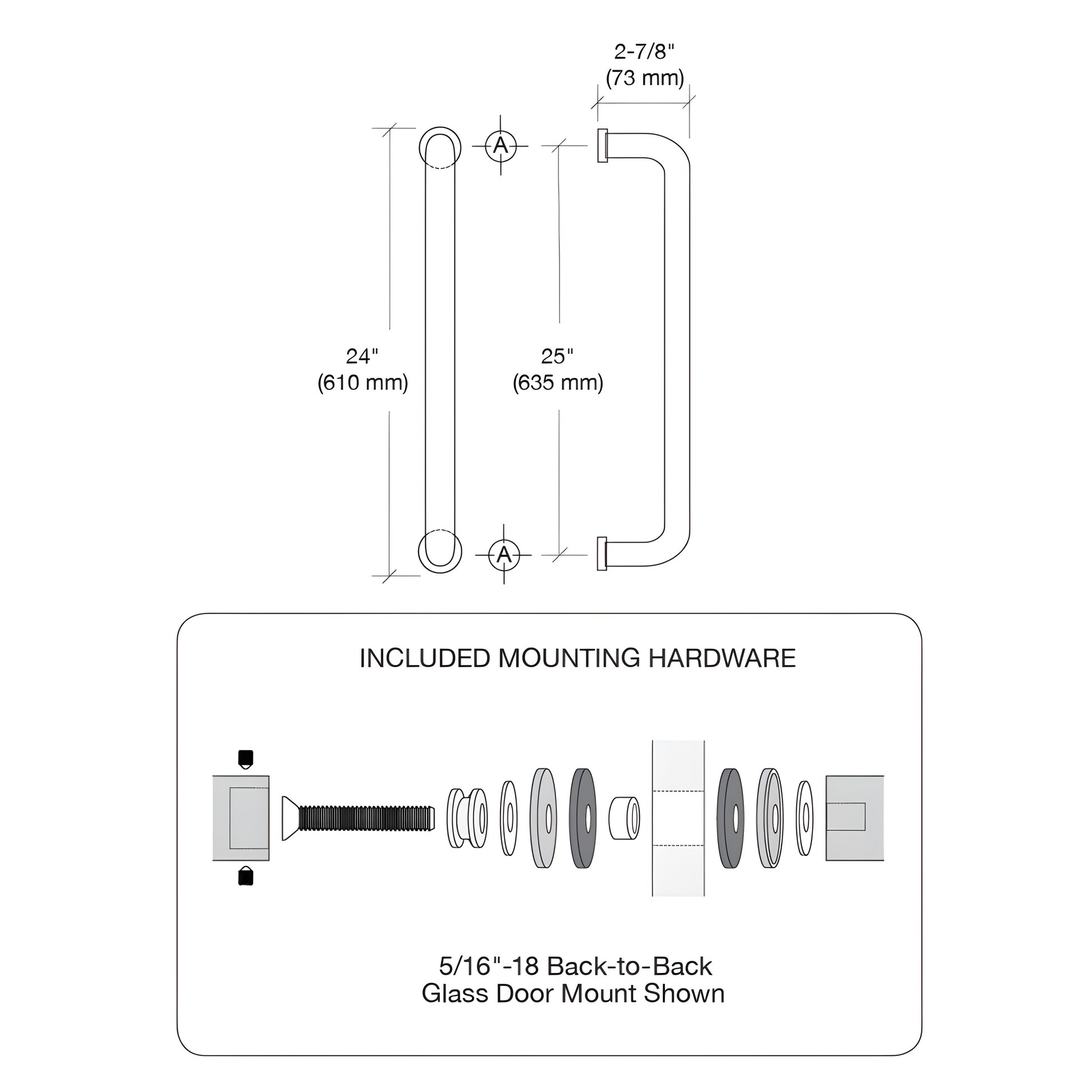

INCLUDES:
2 each: through-bolts for glass mounting
4 each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Designer-grade glass door pull handle engineered for tempered glass installations — order SKU CM24X24PS today to match your architectural hardware finish.
