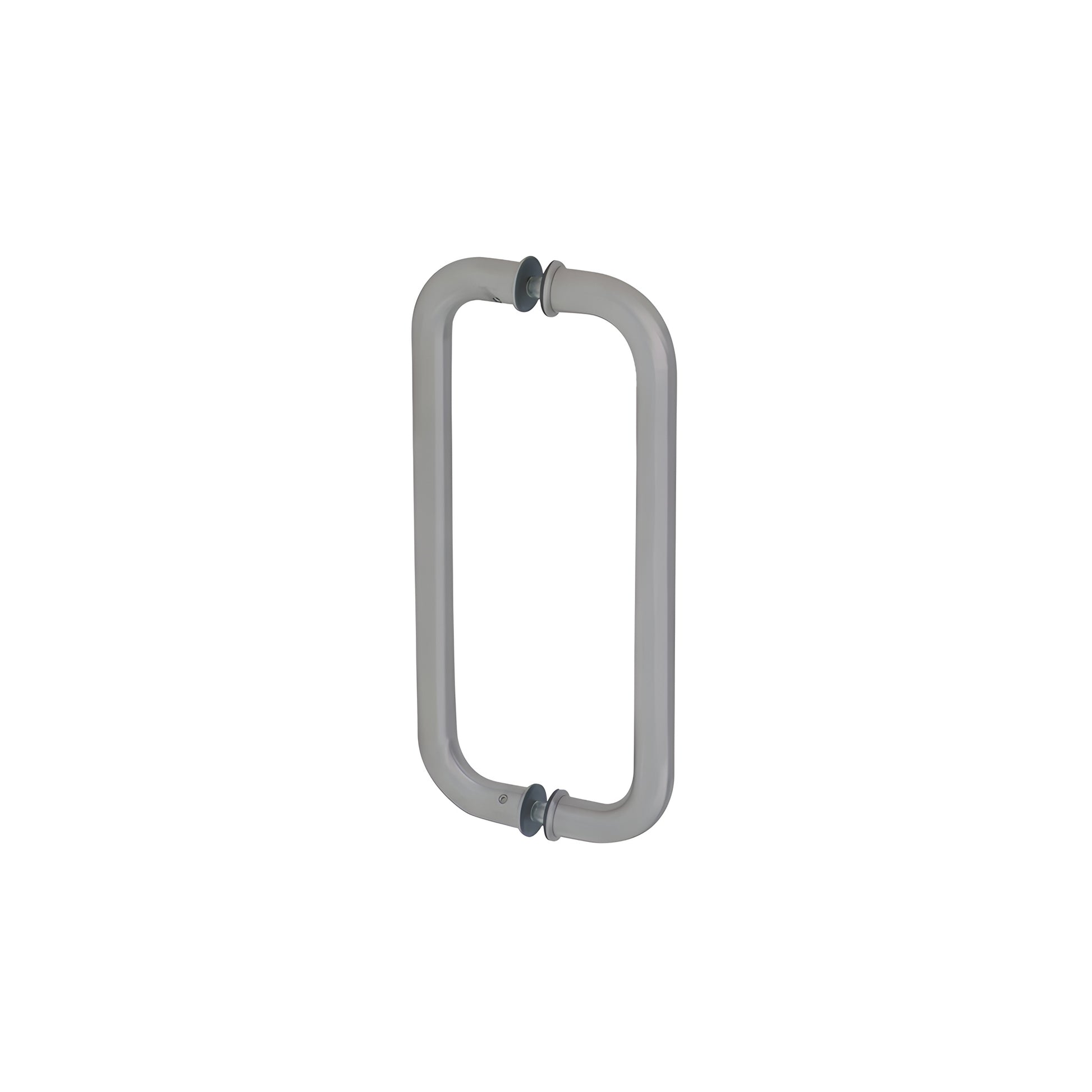

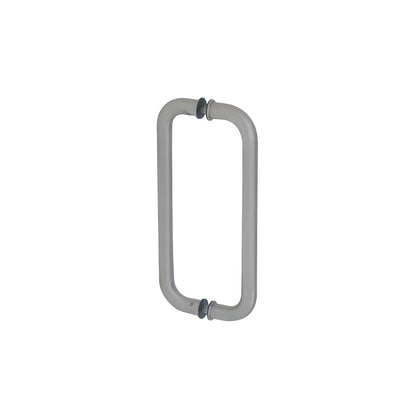

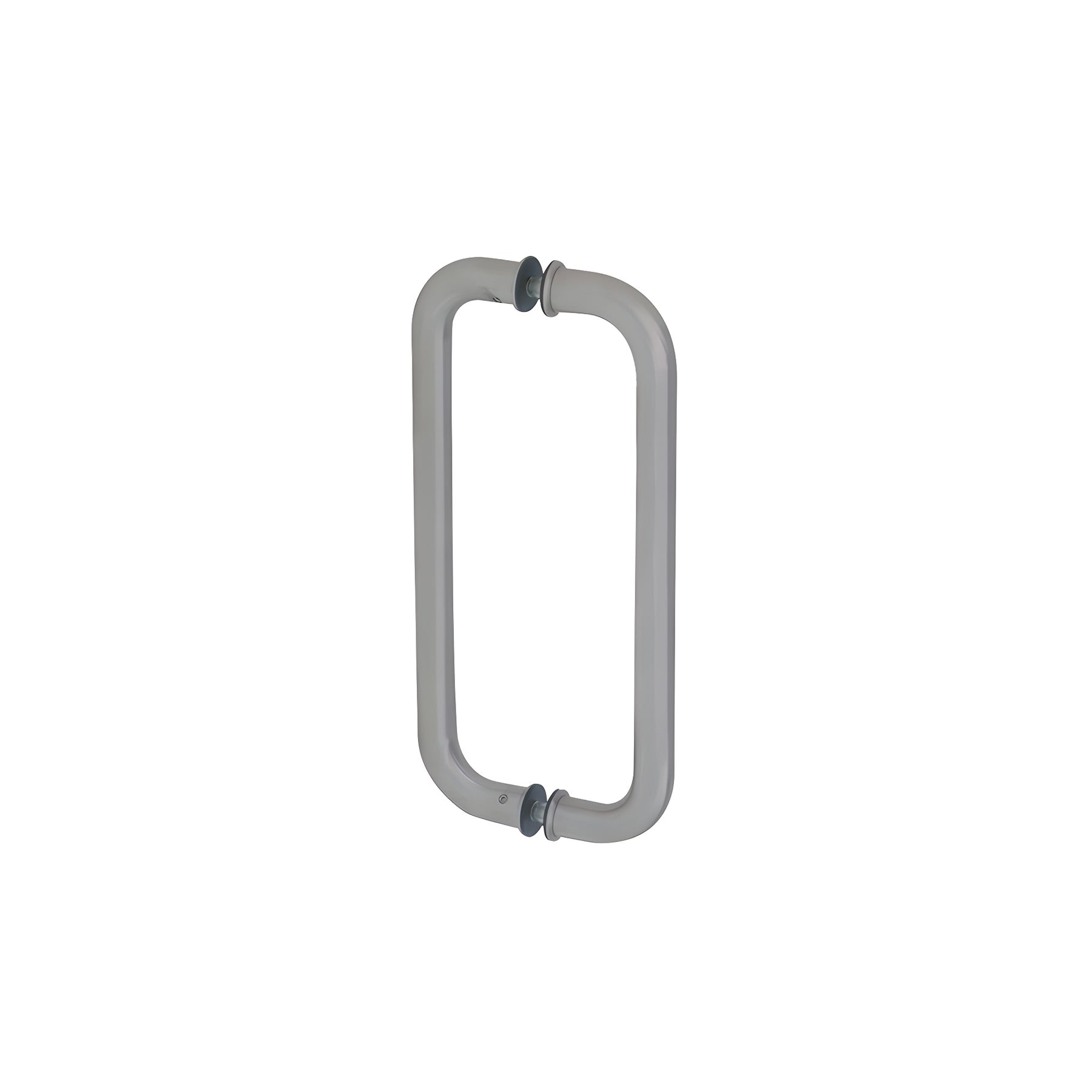

CRL 10" Brushed Stainless Steel Glass Door Pull Handle Solid Mount
CRL 10" Brushed Stainless Steel Glass Door Pull Handle Solid Mount
Regular price
$323.19 CAD
Regular price
Sale price
$323.19 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CS10X10BS
Shipping Weight: 5.205 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.205 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Center To Center
10 in. (254 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- For use with 3/8" to 3/4" (10 to 19 mm) thick glass
- 1" (25 mm) diameter solid stainless steel or brass
- Designed for monolithic tempered glass
This CRL Glass Mounted Standard Pull Handle (SKU: CS10X10BS) is a heavy-duty glass door pull ideal for shower doors, commercial glass entrances, and interior glass partitions. Available in multiple sizes and finishes to match architectural and commercial glass hardware needs.

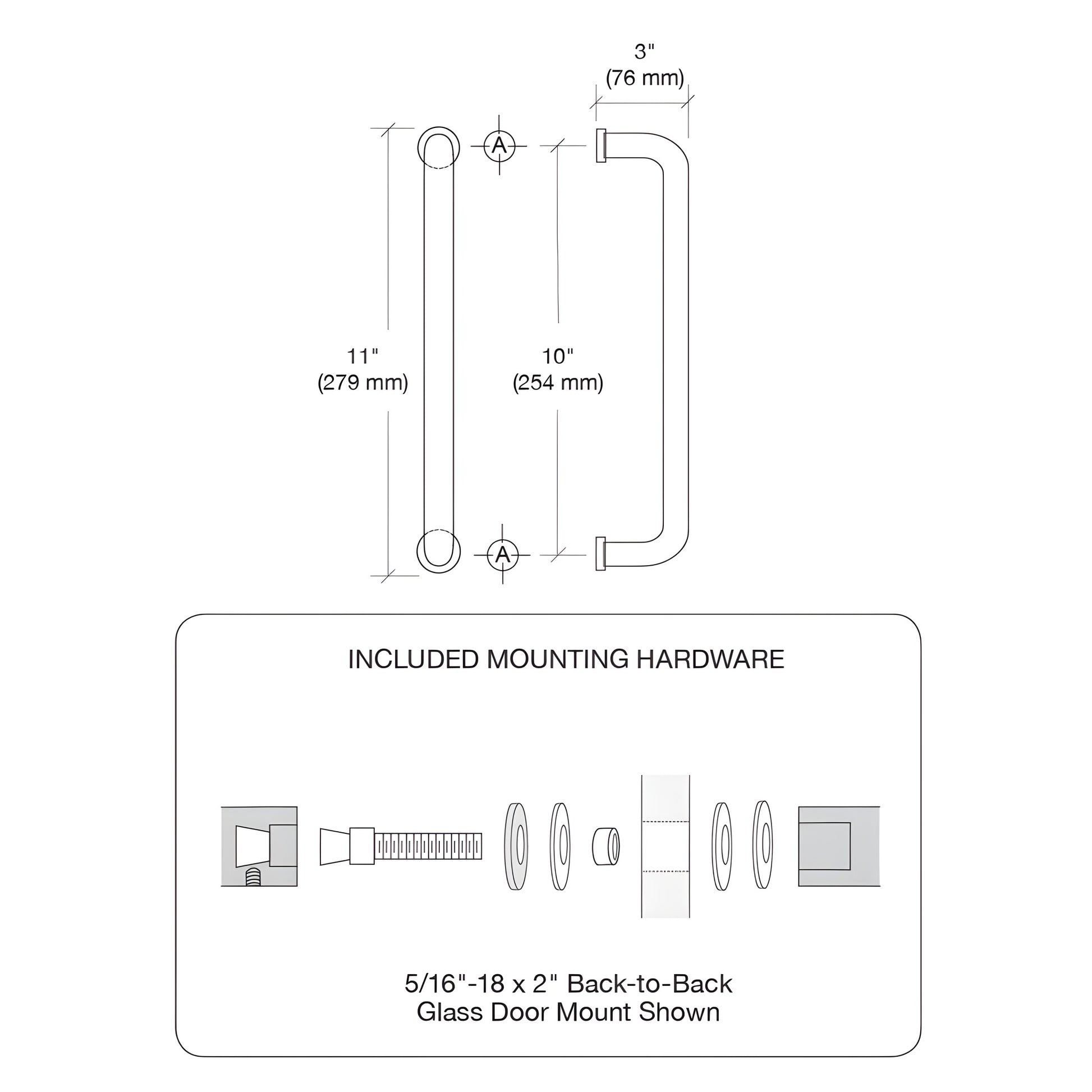

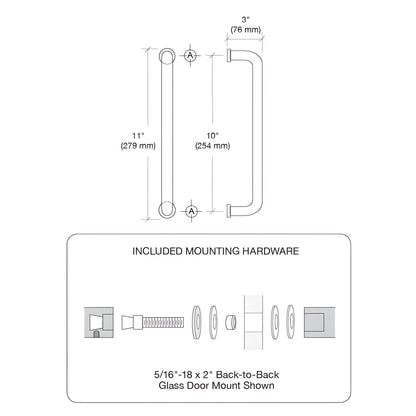

SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction: 1" (25 mm) round stainless steel tubing (also offered in brass finish)
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes
INCLUDES:
2 Each: through-bolts for glass mounting
4 Each: 1-1/4" (32 mm) diameter matching-finish metal washers and rubber gaskets
Product Warning:
NOTE CRL Cat. No. TB2CH, TB4CH and F40WK will not work with the "CS" Series handles.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for care instructions.
Order the CS10X10BS glass door pull today to upgrade your shower or commercial glass installation.
