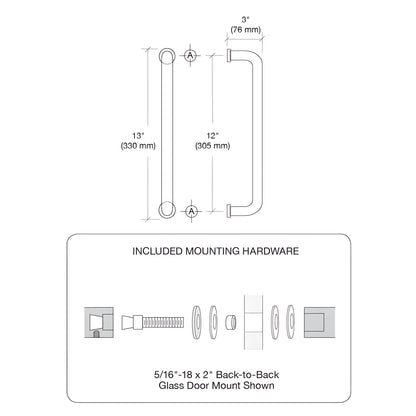

• Brushed stainless steel CS12X12BS glass-mounted pull handle, 12" centers, for 3/8-3/4" tempered glass.

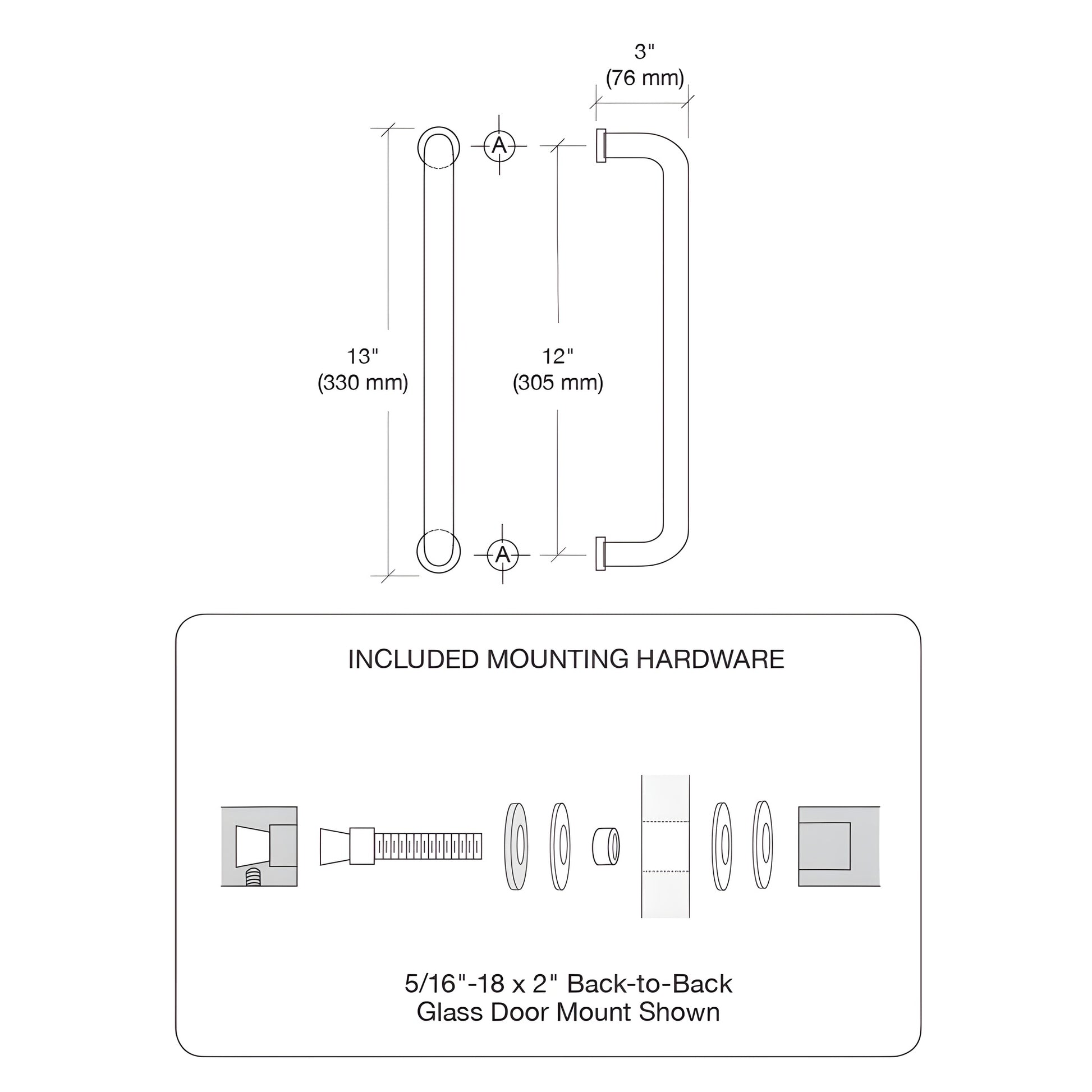

  • Brushed stainless steel CS12X12BS glass-mounted pull handle, 12" centers, for 3/8-3/4" tempered glass.
1 2

CRL

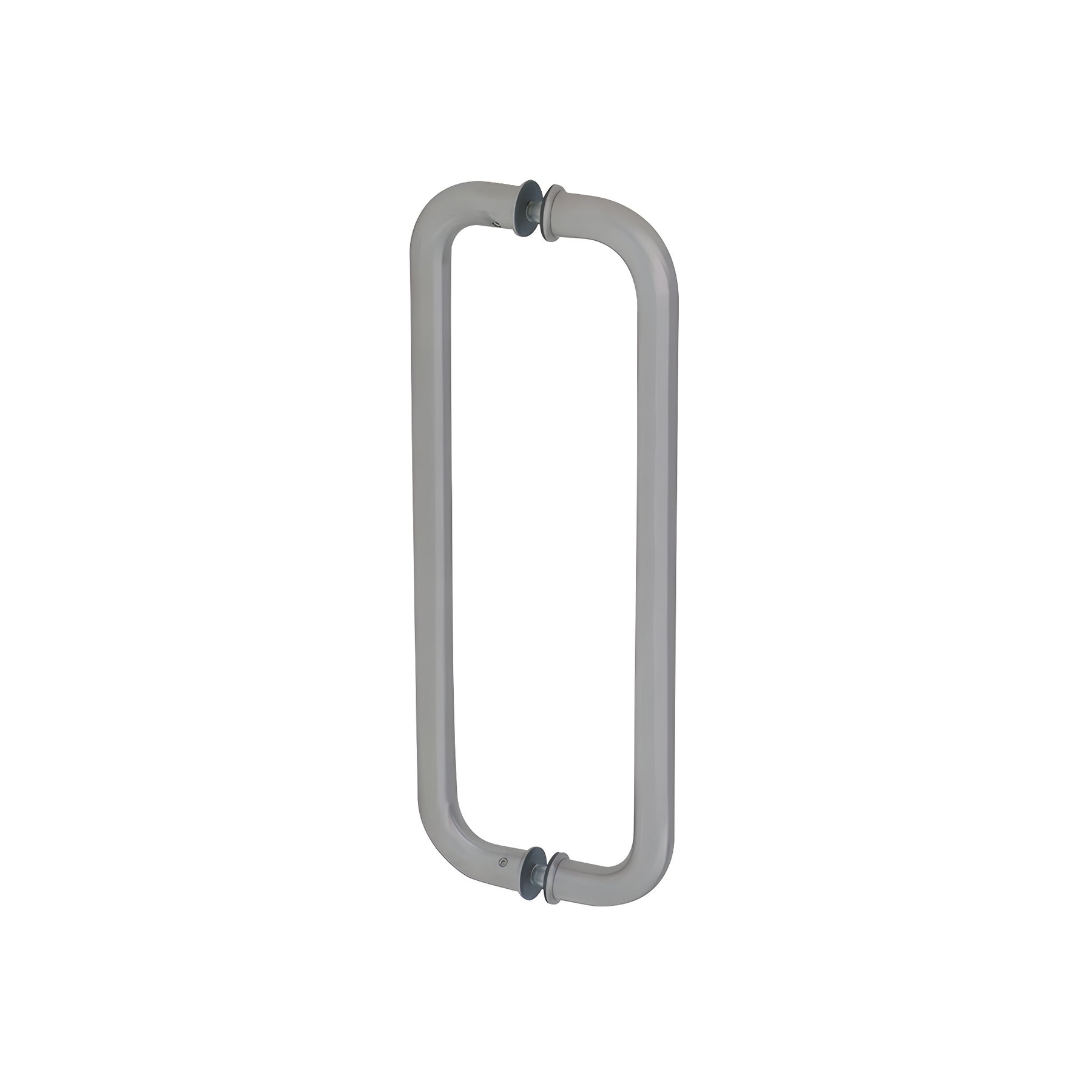

CRL 12 in Brushed Stainless Steel Glass Door Pull

CRL 12 in Brushed Stainless Steel Glass Door Pull

$358.23 CAD
$358.23 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CS12X12BS
Shipping Weight: 1.998 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Center To Center
12 in. (305 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes

Overview

  • For use with 3/8" to 3/4" (10 to 19 mm) thick glass
  • 1" (25 mm) diameter solid stainless steel or brass tubing
  • Designed for monolithic tempered glass doors

This CRL Glass Mounted Standard Pull Handle (SKU: CS12X12BS) fits glass door applications and is available in multiple sizes and finishes. Ideal for commercial and residential glass door projects, this through-bolt mounted pull provides a clean, modern look and solid feel.


SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction: 1" (25 mm) round stainless steel tubing (also available in brass)
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes for through-bolt mounting

INCLUDES:
2 Each: Through-bolts for glass mounting
4 Each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets


Product Warning:

NOTE CRL Cat. No. TB2CH, TB4CH and F40WK will not work with the "CS" Series handles.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before completing your order, contact CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary by monitor.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.


Call or order online to specify finish and size for this CS series glass door pull handle.

Specifications

Cleaning & Maintenance
CRL Stainless Steel Disclaimer
