CRL 12 in Polished Stainless Glass Door Pull Handle - Solid Mount
CRL 12 in Polished Stainless Glass Door Pull Handle - Solid Mount
Regular price
$364.72 CAD
Regular price
Sale price
$364.72 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CS12X12PS
Shipping Weight: 5.975 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.975 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Center To Center
12 in. (305 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- For use with 3/8" to 3/4" (10 to 19 mm) thick glass
- 1" (25 mm) diameter solid stainless steel or brass
- Use monolithic tempered glass

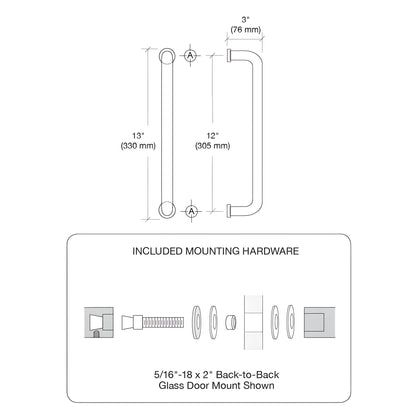

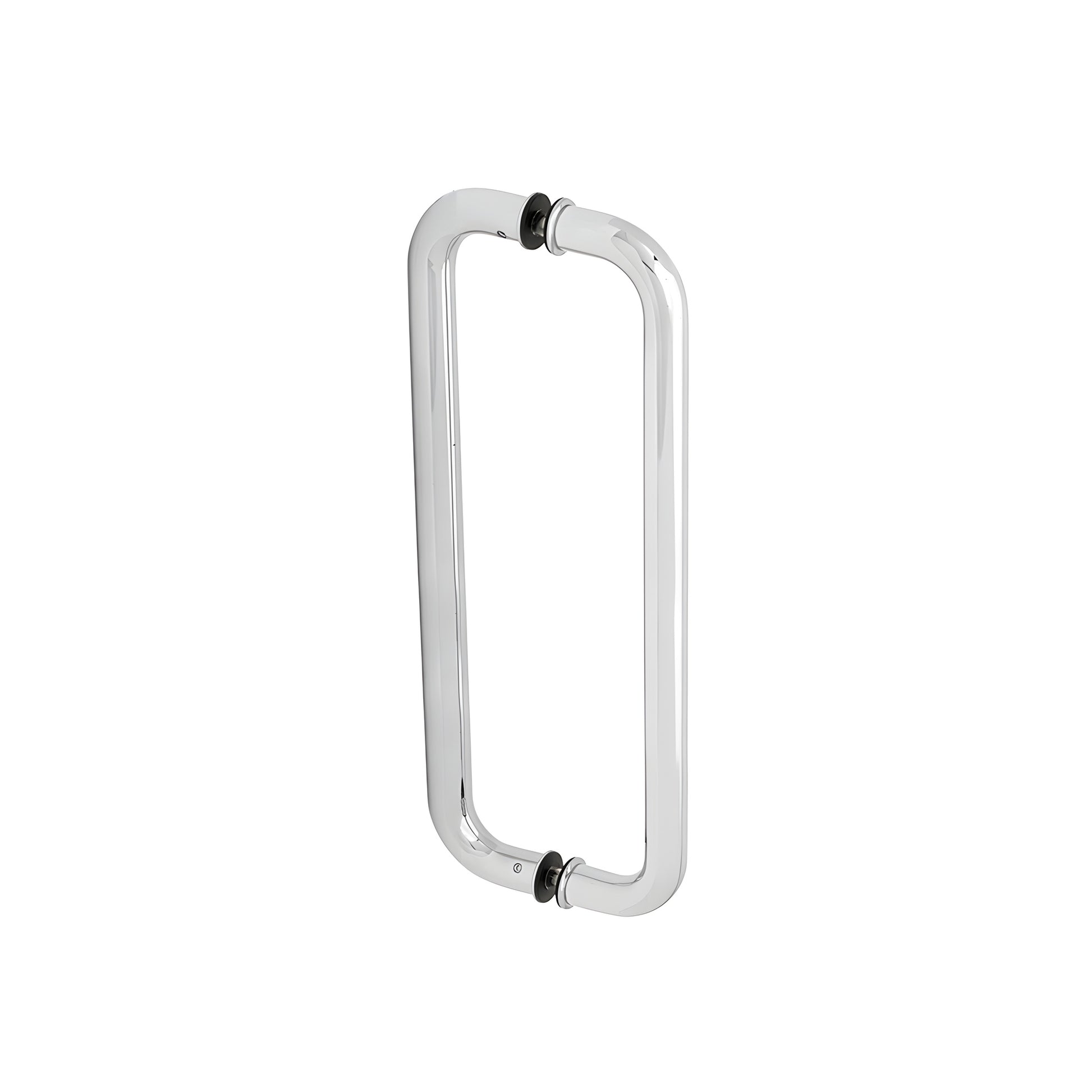

This CRL Glass Mounted Standard Pull Handle (SKU: CS12X12PS) is a heavy-duty glass door pull handle available in multiple sizes and finishes for commercial and residential glass doors.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction: 1" (25 mm) round stainless steel tubing (also available in brass)
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes

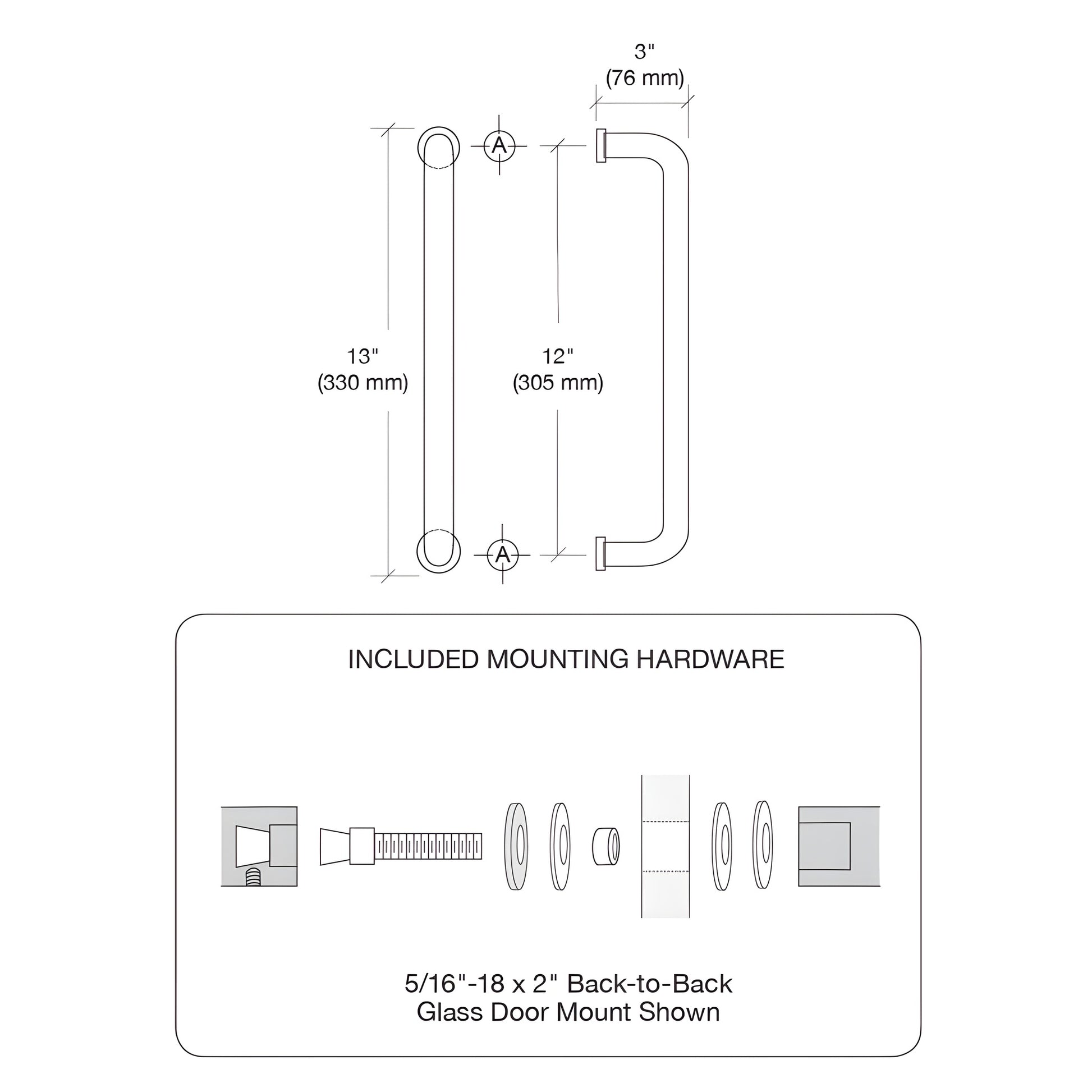

INCLUDES:
2 Each: Through-bolts for glass mounting
4 Each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets
Product Warning:
NOTE CRL Cat. No. TB2CH, TB4CH and F40WK will not work with the "CS" Series handles.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for full care instructions.
