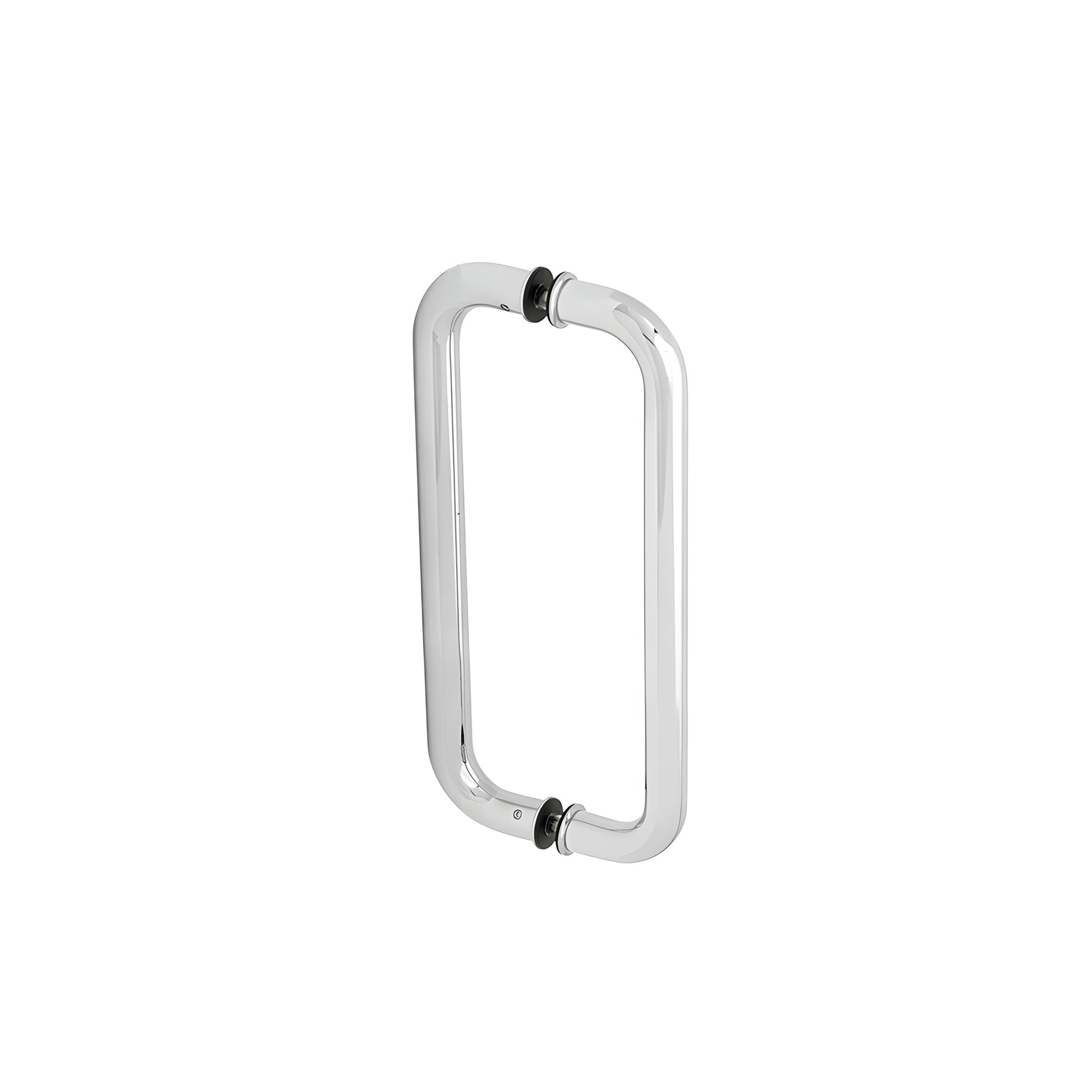

CRL 10" Polished Stainless Steel Solid Glass Door Pull Handle
CRL 10" Polished Stainless Steel Solid Glass Door Pull Handle
Regular price
$329.68 CAD
Regular price
Sale price
$329.68 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CS10X10PS
Shipping Weight: 5.952 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.952 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Center To Center
10 in. (254 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- For use with 3/8" to 3/4" (10 to 19 mm) thick glass
- 1" (25 mm) diameter solid stainless steel or brass tubing
- Designed for monolithic tempered glass doors
This CRL Glass Mounted Standard Pull Handle (SKU: CS10X10PS) is offered in multiple lengths and finishes to fit commercial and residential glass doors.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction: 1" (25 mm) round stainless steel tubing (also available in brass finish)
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes

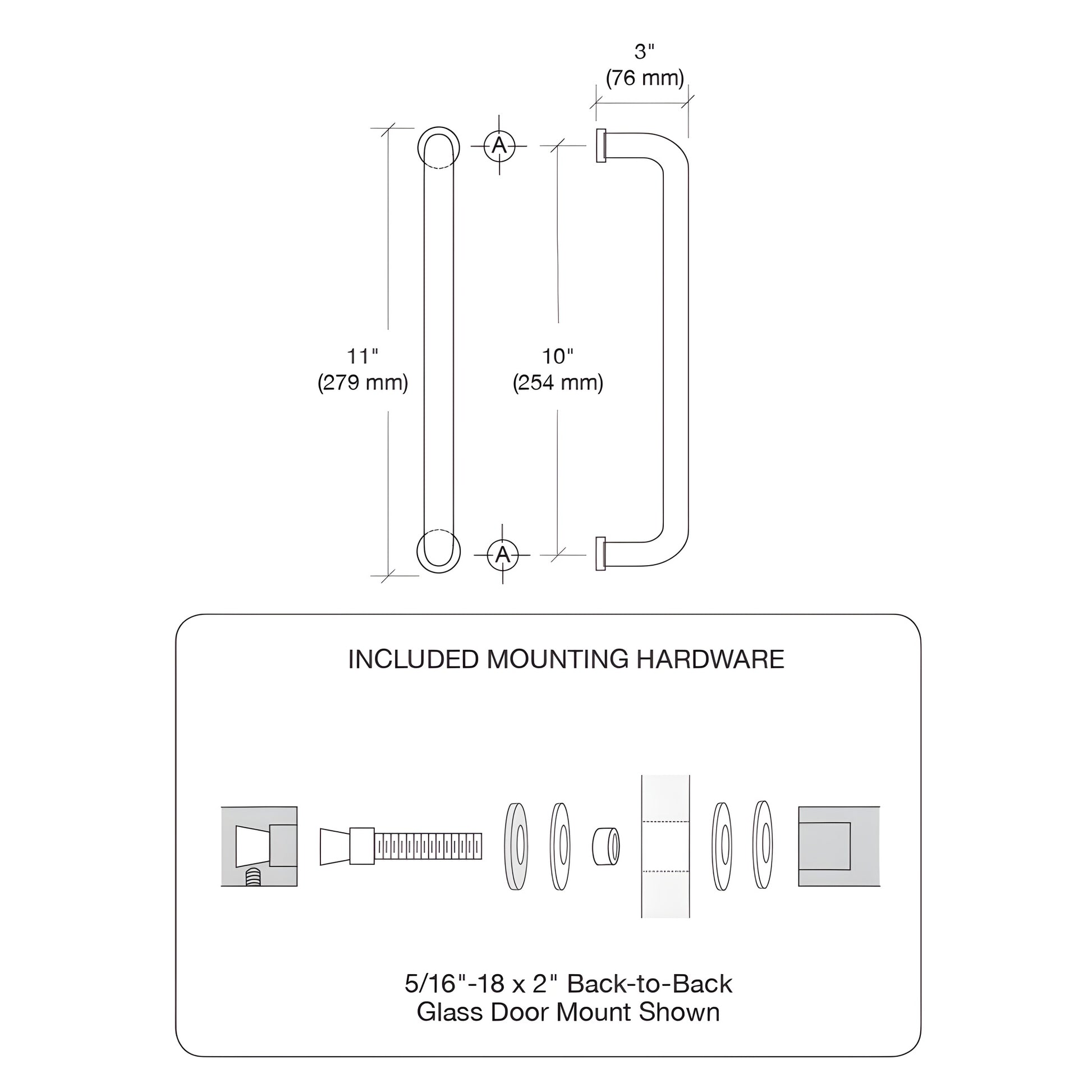

INCLUDES:
2 each: through-bolts for glass mounting
4 each: 1-1/4" (32 mm) diameter matching-finish metal washers and rubber gaskets
Product Warning:
NOTE CRL Cat. No. TB2CH, TB4CH and F40WK will not work with the "CS" Series handles.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
Ideal for glass door pull handle replacements and new glass storefront or shower door installations. Order now or contact us for volume pricing and finish availability.
