CRL

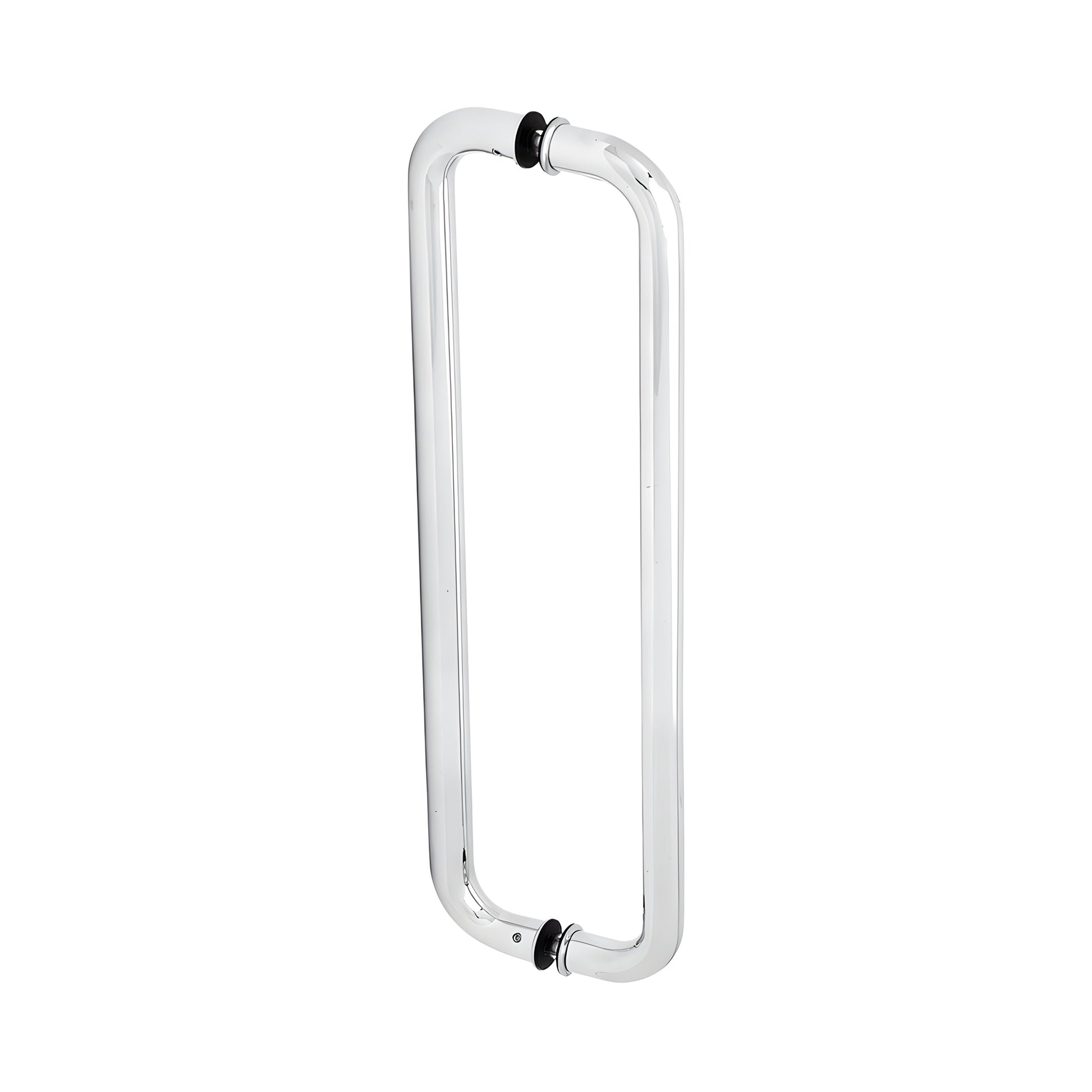

CRL 18 in Polished Stainless Glass Door Back-to-Back Pull Handle
CRL 18 in Polished Stainless Glass Door Back-to-Back Pull Handle
Regular price
$145.36 CAD
Regular price
Sale price
$145.36 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CM18X18PS
Shipping Weight: 2.39 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.39 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel

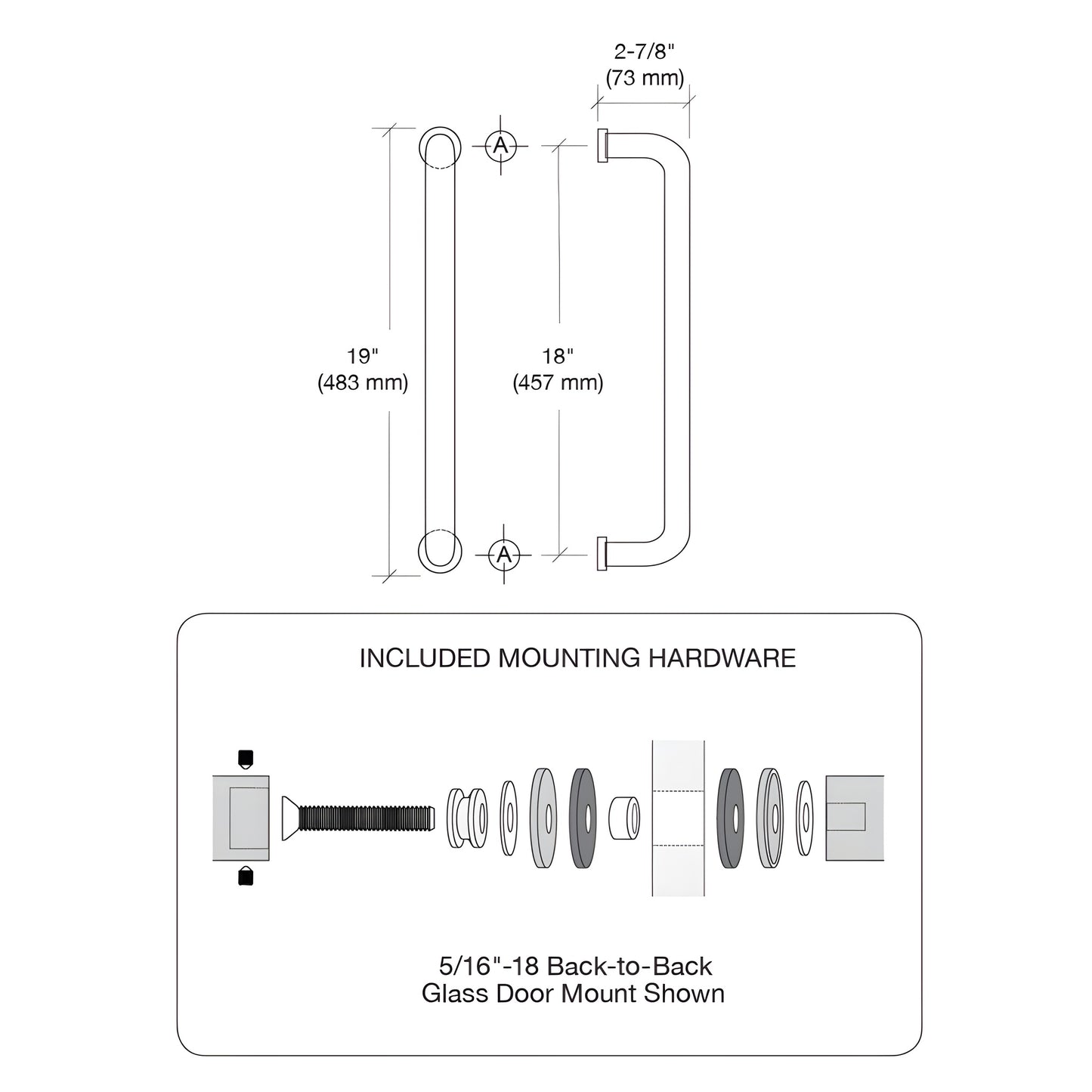

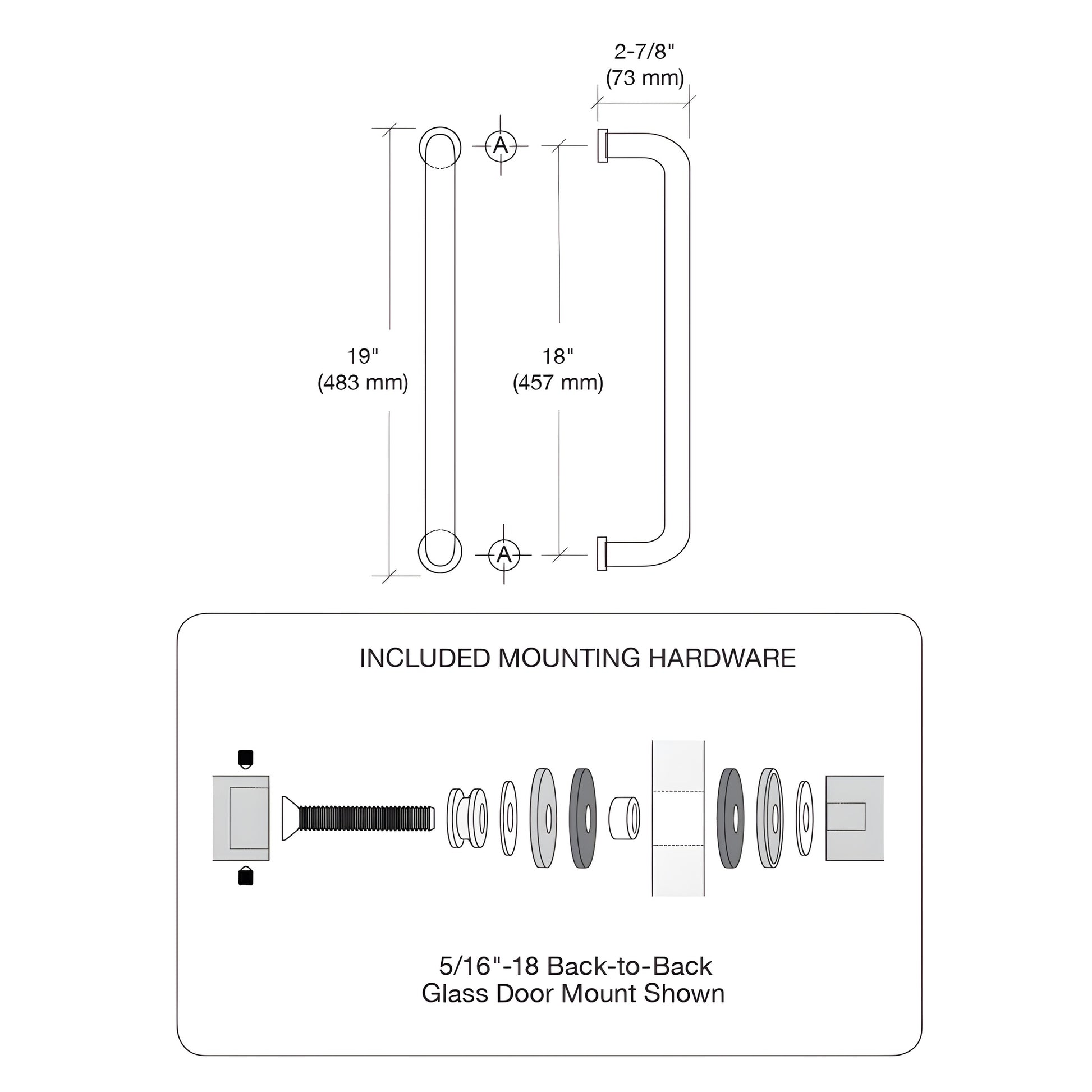

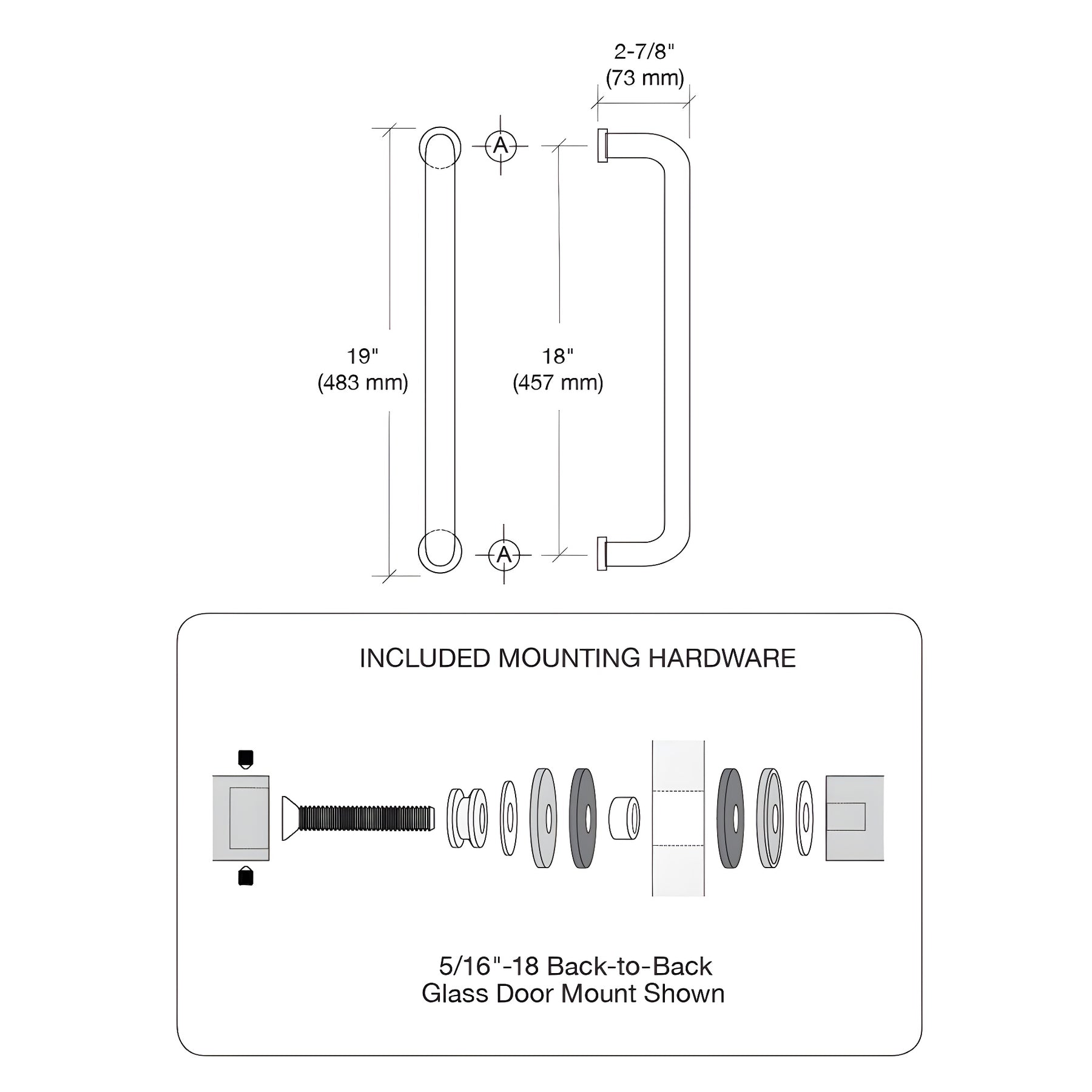

Mounting Center To Center
18 in. (457 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- Stocked in up to five architectural finishes
- For use with 3/8" to 3/4" (10 to 19 mm) glass
- Complete with matching finish metal washers and through-bolts for mounting
- Use monolithic tempered glass
This CRL Glass Mounted Standard Pull Handle (SKU: CM18X18PS) fits frameless and framed glass doors and is available in three sizes and multiple architectural finishes for commercial and residential glazing projects.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction:
1" (25 mm) diameter stainless steel or brass tubing. *1-1/4" (32 mm) diameter stainless steel (Cat. No. CD24X24BS125 model only).
Projection: 3" (76 mm) from face of glass to outside of handle
Glass Fabrication Required:
Two 5/8" (16 mm) diameter holes
INCLUDES:
2 each: Through-bolts for glass mounting
4 each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Shop this durable, architectural finish glass-mounted pull handle for tempered glass doors—order now or contact CRL for volume pricing.
