• Brushed stainless steel glass-mounted pull handle, 18 in center-to-center (CM18X18BS)
  • Brushed stainless steel glass-mounted pull handle, 18 in center-to-center (CM18X18BS)
1 2

CRL

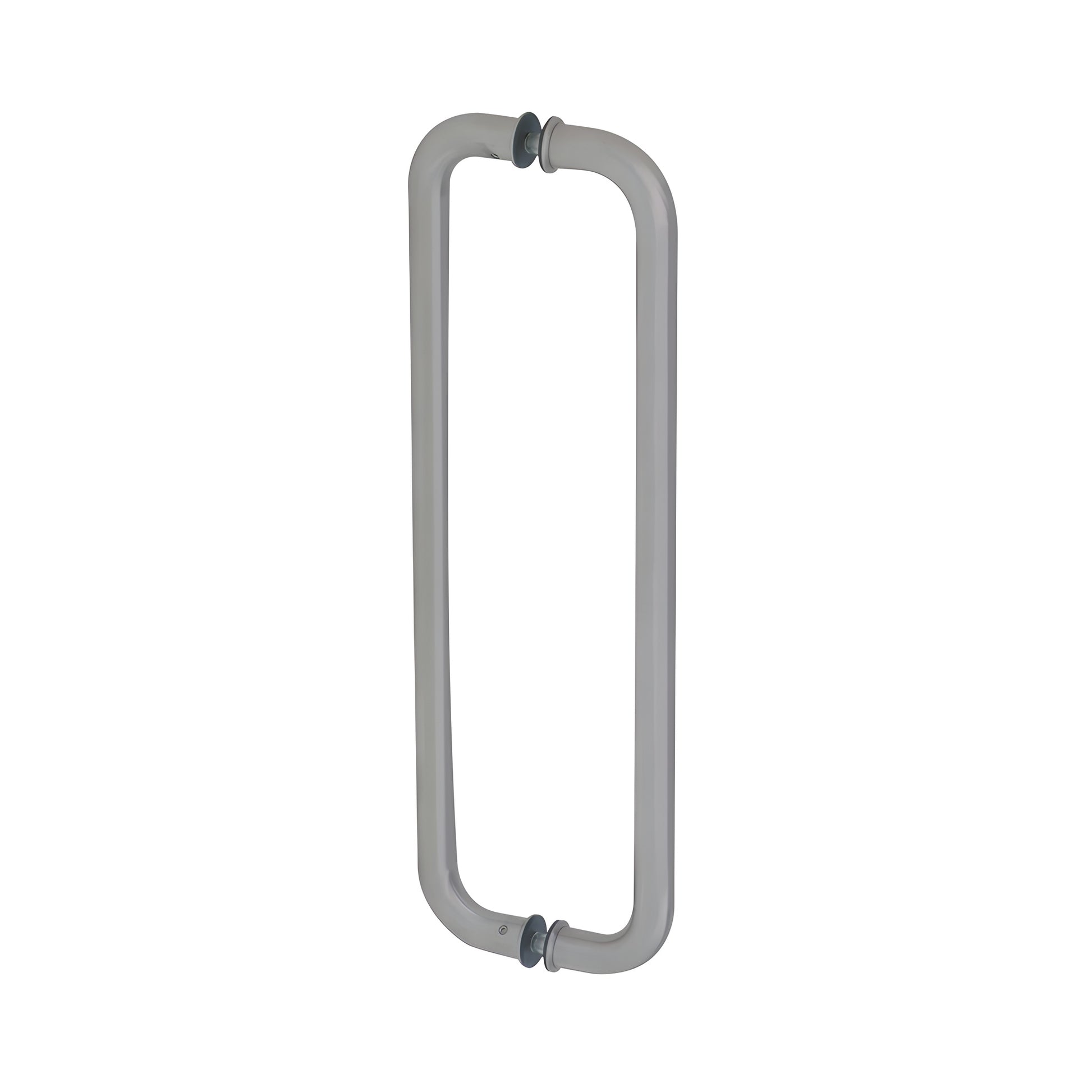

CRL 18" Brushed Stainless Glass-Mounted Back-to-Back Door Pull

CRL 18" Brushed Stainless Glass-Mounted Back-to-Back Door Pull

$134.98 CAD
$134.98 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CM18X18BS
Shipping Weight: 2.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Diameter
1 in. (25 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
18 in. (457 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes

Overview

  • Stocked in up to five architectural finishes for interior and exterior glass doors
  • For use with 3/8" to 3/4" (10 to 19 mm) monolithic tempered glass
  • Complete with matching finish metal washers and through-bolts for secure mounting
  • Designed for monolithic tempered glass—durable glass door pull handle solution

This CRL Glass Mounted Standard Pull Handle (SKU: CM18X18BS) is offered in multiple sizes and a range of architectural finishes for glass door hardware applications.

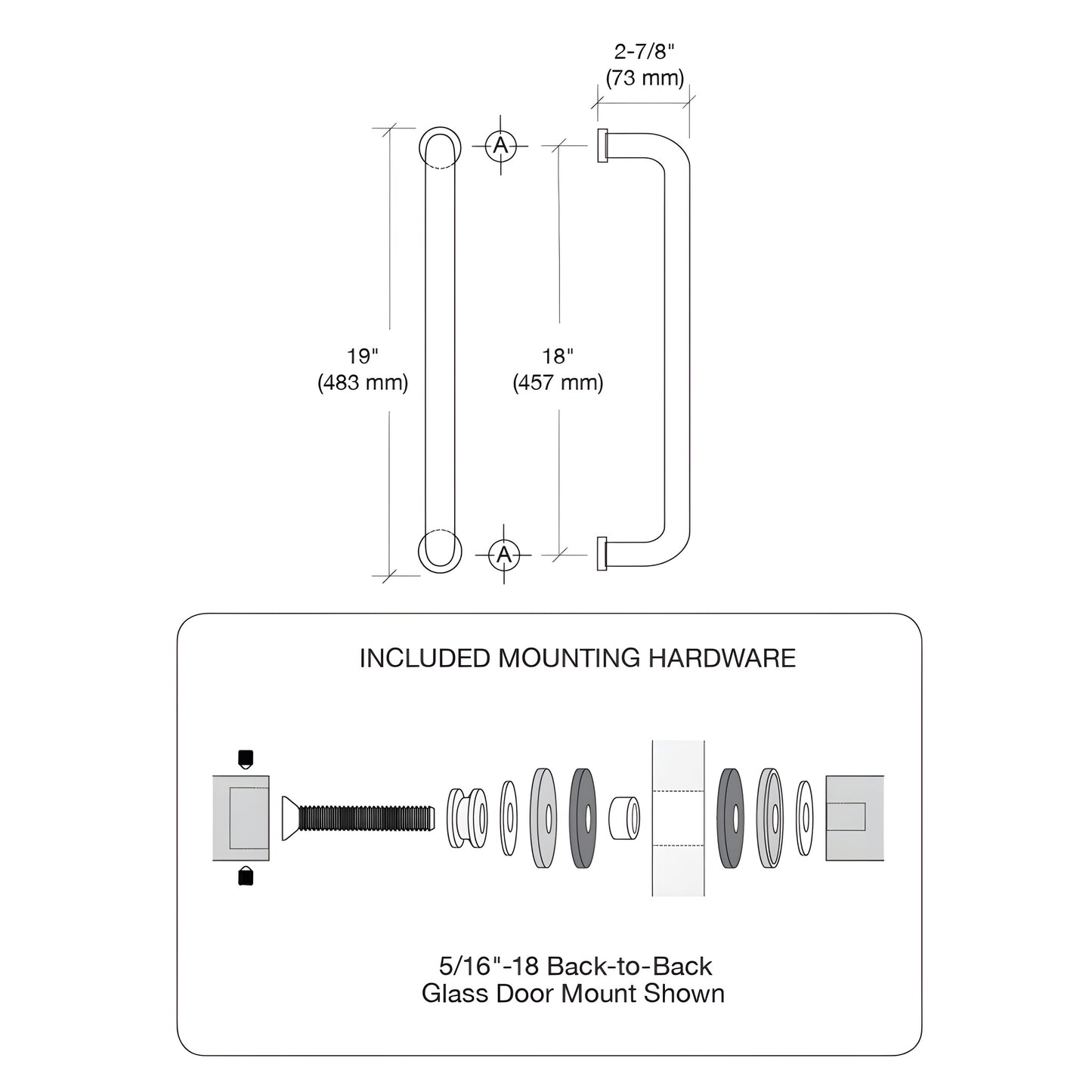

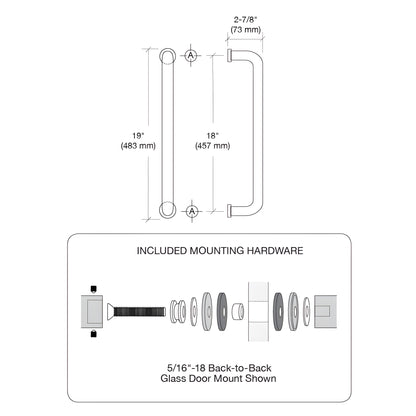

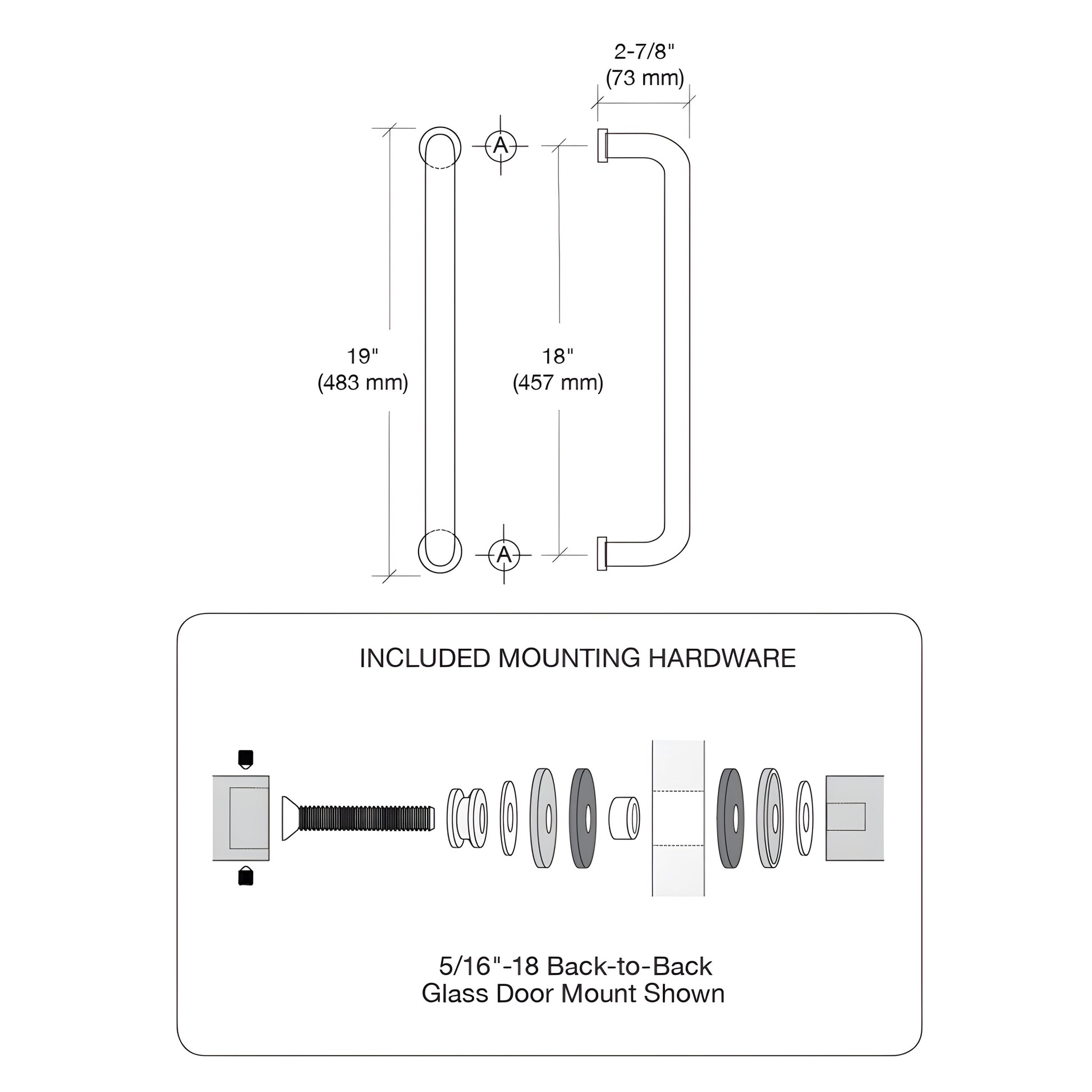

SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction:
1" (25 mm) diameter stainless steel or brass tubing. *1-1/4" (32 mm) diameter stainless steel (Cat. No. CD24X24BS125 model only).
Projection: 3" (76 mm) from face of glass to outside of handle
Glass Fabrication Required:
Two 5/8" (16 mm) diameter holes

INCLUDES:
2 each: through-bolts for glass mounting
4 each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets

Most shipping weights are approximate. If exact weight is required to determine shipping costs before ordering, contact CRL Customer Service. Product images are representative; colors may vary by monitor.

Stainless Steel Advisory:
Stainless steel is corrosion resistant but not impervious to staining or rust. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for maintenance guidance.


Choose this durable, architecturally finished glass door pull handle (CM18X18BS) for reliable glass-mounted performance — contact us to order or request a quote.
