Product Details
- Adjustable Mounting Posts Can Mount on 6" to 26-3/4" (152 to 679 mm) Centers
- For 3/8" to 3/4" (10 and 19 mm) Glass
- Constructed of 1" (25 mm) Diameter Stainless Steel Tubing
- Use Monolithic Tempered Glass

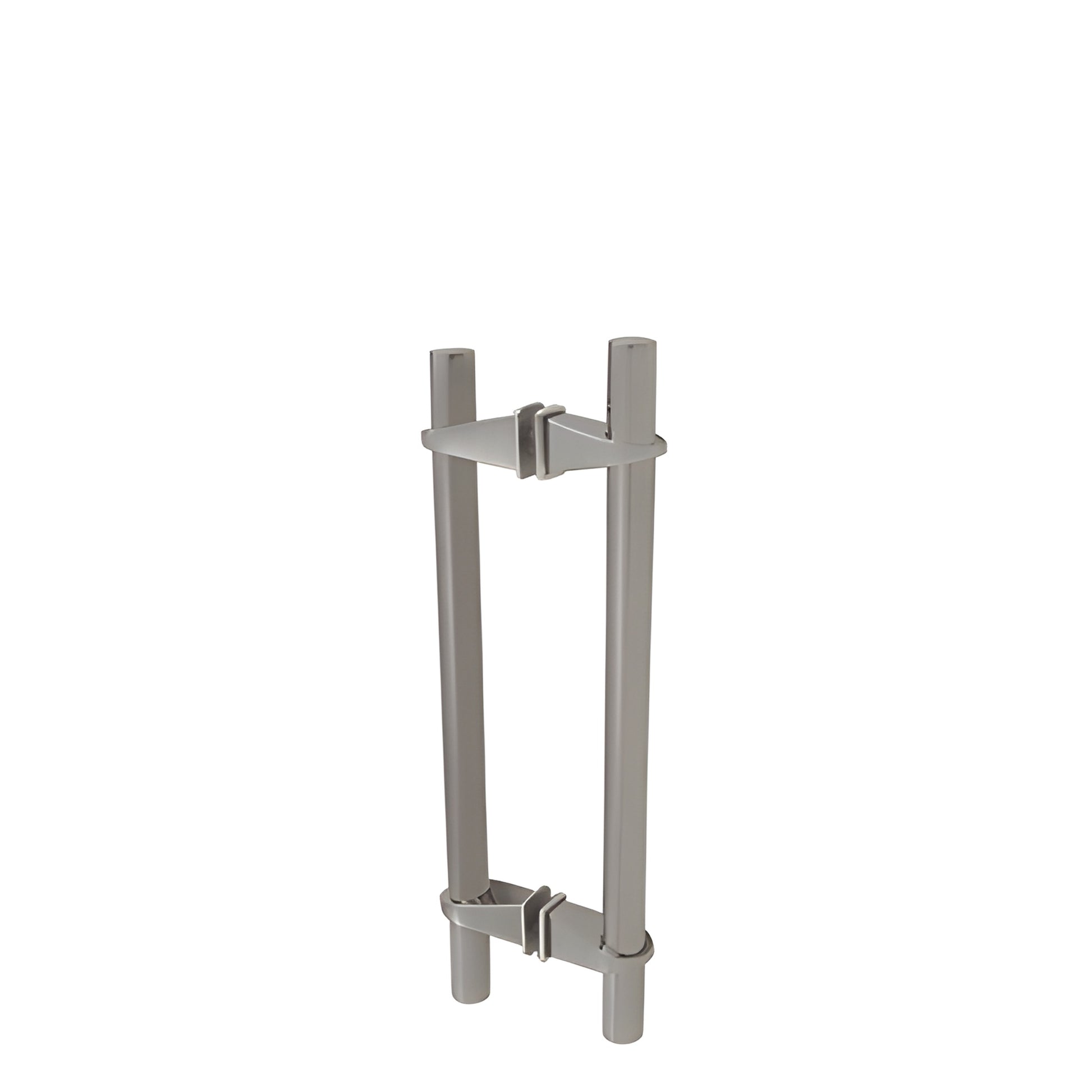

The CRL Variant Series Adjustable Mounting Post Style Pulls are designed to fit on standard hole patterns of 12", 18" and 24" (305, 457 and 610 mm) centers, but with their adjustable mounting posts our various sizes will accommodate any hole pattern ranging from 6" up to 26-3/4" (152 to 679 mm) on center. Additional Mounting Posts can also be purchased separately.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1" (25 mm) Diameter Stainless Steel Tubing
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes,
VPS x 16: 12" (305 mm) Center-to-Center
VPS x 22: 18" (457 mm) Center-to-Center
VPS x 28: 24" (610 mm) Center-to-Center
NOTE: Hole centers shown are for standard mounting locations. You may vary actual hole centers.
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: Adjustable Mounting Posts (VP1 or VP2 Depending on Handle Style)
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
