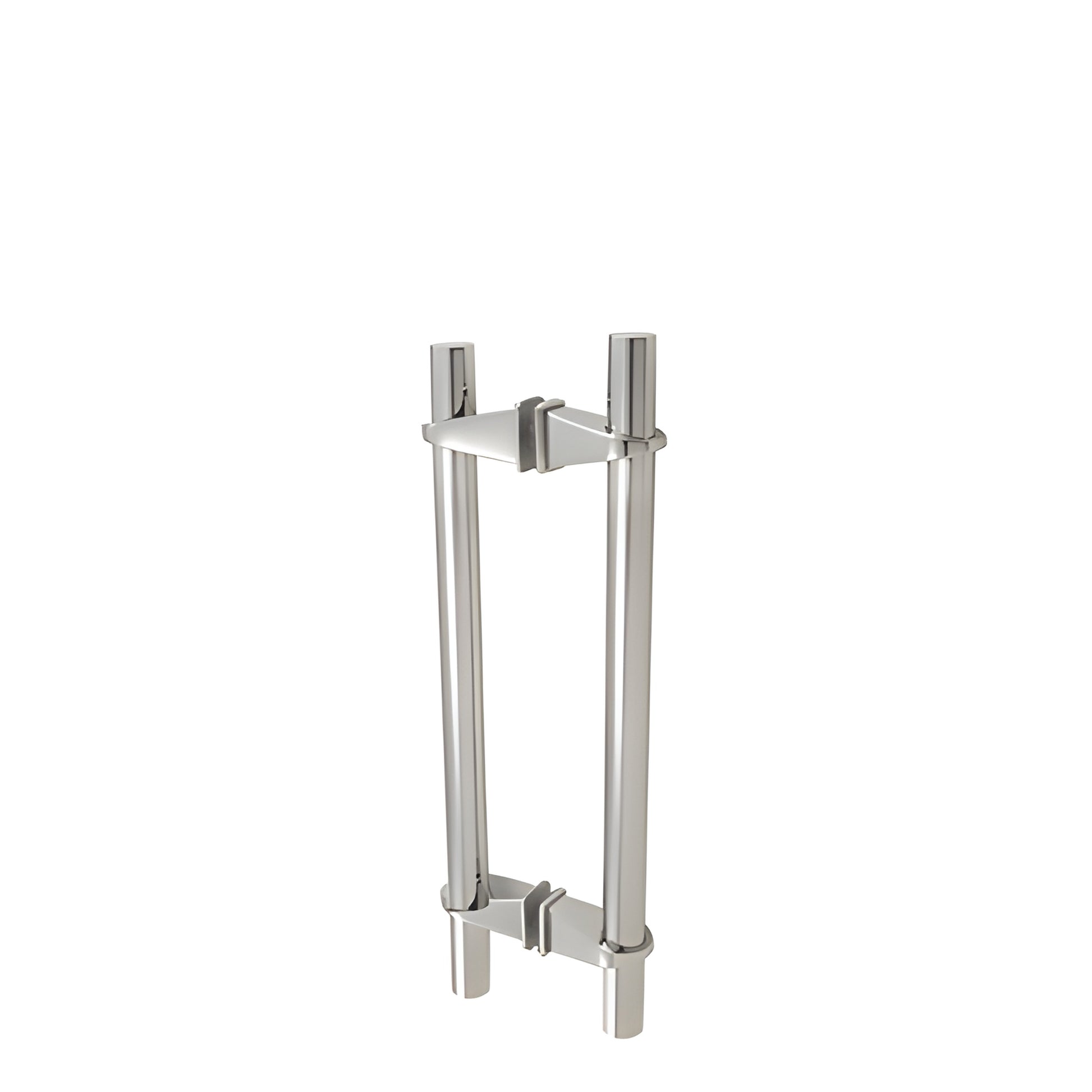

CRL 16 in Polished Stainless Adjustable Glass Door Pull with VP1 Post
CRL 16 in Polished Stainless Adjustable Glass Door Pull with VP1 Post
Regular price
$288.15 CAD
Regular price
Sale price
$288.15 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# VPS116PS
Shipping Weight: 3.748 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.748 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
12 in. Adjustable (305 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
16 in. (406 mm)
Overview
- Adjustable mounting posts mount on 6" to 26-3/4" (152 to 679 mm) centers
- Designed for 3/8" to 3/4" (10 to 19 mm) glass
- Constructed of 1" (25 mm) diameter stainless steel tubing
- Use with monolithic tempered glass
CRL Variant Series Adjustable Mounting Post Style Pulls (SKU: VPS116PS) are precision-engineered glass door pulls featuring adjustable mounting posts that accommodate common hole patterns—12", 18" and 24" (305, 457 and 610 mm) centers—and expand to fit any center-to-center spacing from 6" to 26-3/4" (152 to 679 mm). These stainless steel glass pulls are ideal for commercial and residential glass doors where long-lasting finish and adaptability are required. Additional mounting posts sold separately.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction:
1" (25 mm) diameter stainless steel tubing — durable, corrosion-resistant door pull for glass applications
Glass Fabrication Required:
Two 5/8" (16 mm) diameter holes
VPS x 16: 12" (305 mm) center-to-center
VPS x 22: 18" (457 mm) center-to-center
VPS x 28: 24" (610 mm) center-to-center
NOTE: Shown hole centers are standard locations; actual hole centers may be varied to suit your installation.
INCLUDES:
2 Each: through-bolts for glass mounting
4 Each: adjustable mounting posts (VP1 or VP2 depending on handle style)
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not rust-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care instructions.
Order VPS116PS today for adjustable stainless steel glass door pulls that fit a wide range of hole patterns—contact us to buy or request custom mounting posts.
