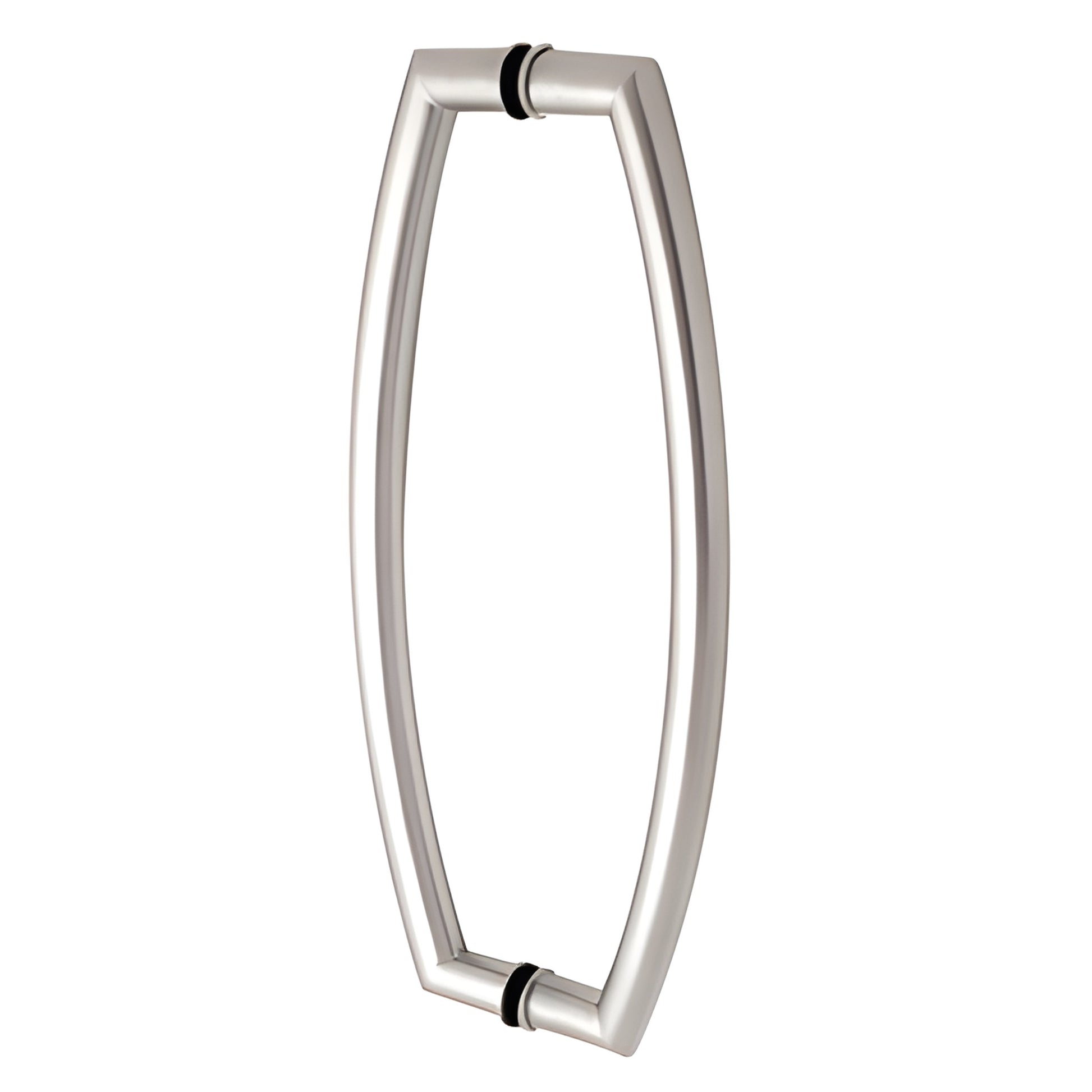

CRL Brushed Stainless 17" Glass Mounted Back-to-Back Bracket Style Pull Handle

Overview

SKU	CX17X17BS
Sold as	1 Each
Diameter	1 in. (25.4 mm)
Finish/Color:	Brushed Stainless Steel
Glazing Thickness	3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Center To Center	16-3/4 in. (425 mm)
Mounting Hole Diameter	5/8 in. (16 mm)
Mounting Type	Back-to-Back
Style Washer Diameter	1-1/4 in. (32 mm)
Style Washers	Yes

Description

Product Details

For Use with 3/8" to 3/4" (10 to 19 mm) Thick Glass
1" (25 mm) Diameter Stainless Steel Tubing
Use Monolithic Tempered Glass

This CRL Glass Mounted Bracket Style Pull Handle is available in two finishes.

SPECIFICATIONS:

For Use with:

3/8" to 3/4" (10 to 19 mm) Glass

Construction:

1" (25 mm) Diameter Stainless Steel Tubing

Glass Fabrication Required:

Two 5/8" (16 mm) Diameter Holes

INCLUDES:

2 Each: Through-Bolts for Glass Mounting

4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
