CRL 24" x 32" Door Vision Lite
CRL 24" x 32" Door Vision Lite
Regular price
$284.74 CAD
Regular price
Sale price
$284.74 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# VLFEZ24X32
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 8.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1

Description
Certification | WHI |
Finish/Color | Bronze |
Glass Height | 31 |
Glass Width | 23 |
Glazing Thickness | 3/16 to 1/4 |
Height | 32 |
Includes | Mitered And Welded Corners,Continuous Glass Retainer,And Countersunk Mounting Holes |
Material | 20 Gauge CRS |
Note | You Supply Glass |
Product | Details Available With Or Without Wire Glass |
U | L Listed Yes |
Width | 24 |
Overview

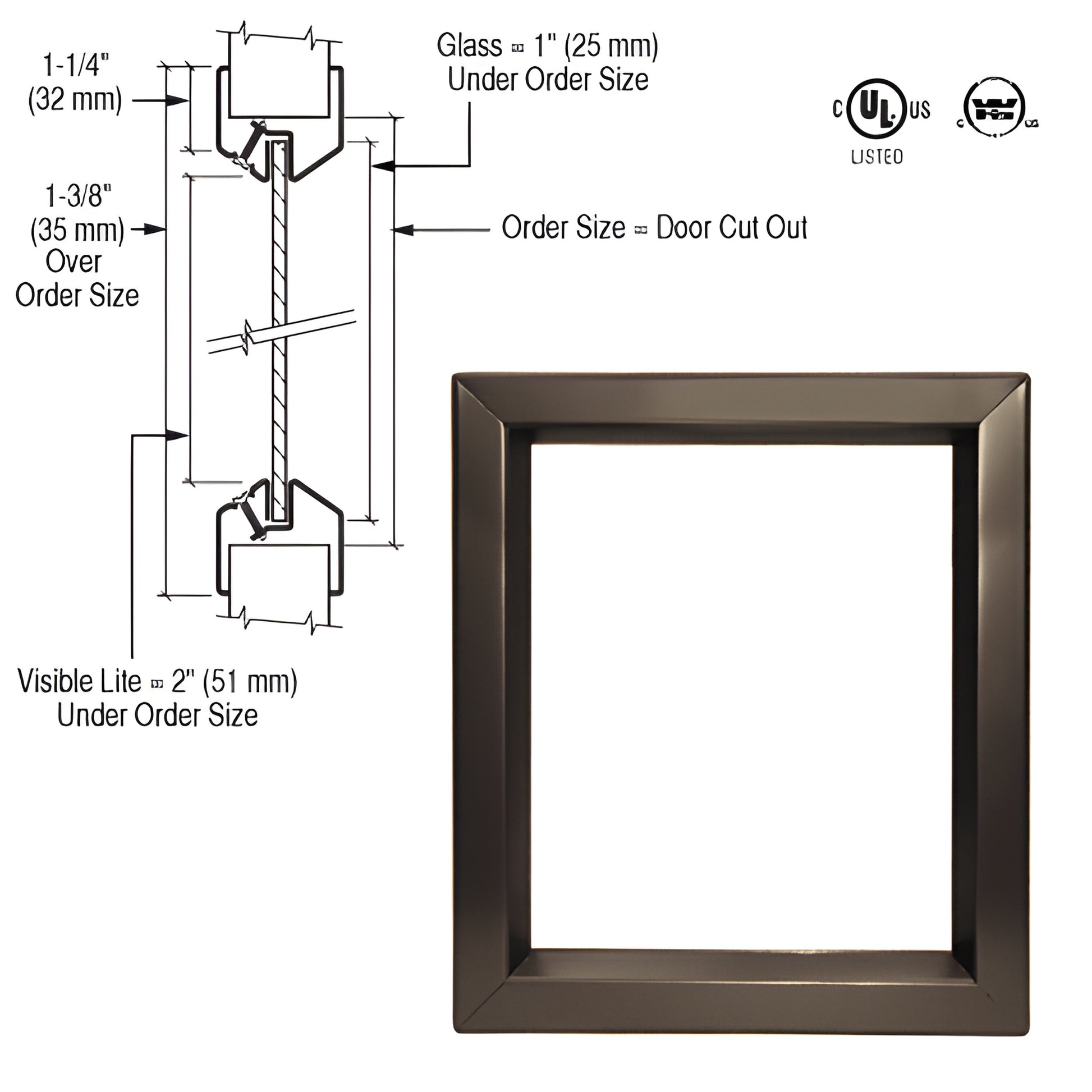

CRL's Door Vision Lites are expertly crafted from 20 gauge CRS bronze powder-coated frames, offering a sleek and durable solution for 1-3/4" (44 mm) thick doors.
Available in sizes ranging from 5" x 35" (127 x 889 mm) to 24" x 60" (610 mm x 1.52 m), these beveled Vision Lite frames are fire-rated and customizable with or without wire glass.
Designed to accommodate glazing thicknesses of 3/16" to 1/4" (5 to 6 mm), our Vision Lites feature mitered and welded corners, a continuous glass retainer, and countersunk mounting holes, ensuring easy installation and a professional finish.
Recognized by UL and WHI, custom sizes and finishes can be tailored to your specific requirements.
Available in sizes ranging from 5" x 35" (127 x 889 mm) to 24" x 60" (610 mm x 1.52 m), these beveled Vision Lite frames are fire-rated and customizable with or without wire glass.
Designed to accommodate glazing thicknesses of 3/16" to 1/4" (5 to 6 mm), our Vision Lites feature mitered and welded corners, a continuous glass retainer, and countersunk mounting holes, ensuring easy installation and a professional finish.
Recognized by UL and WHI, custom sizes and finishes can be tailored to your specific requirements.
