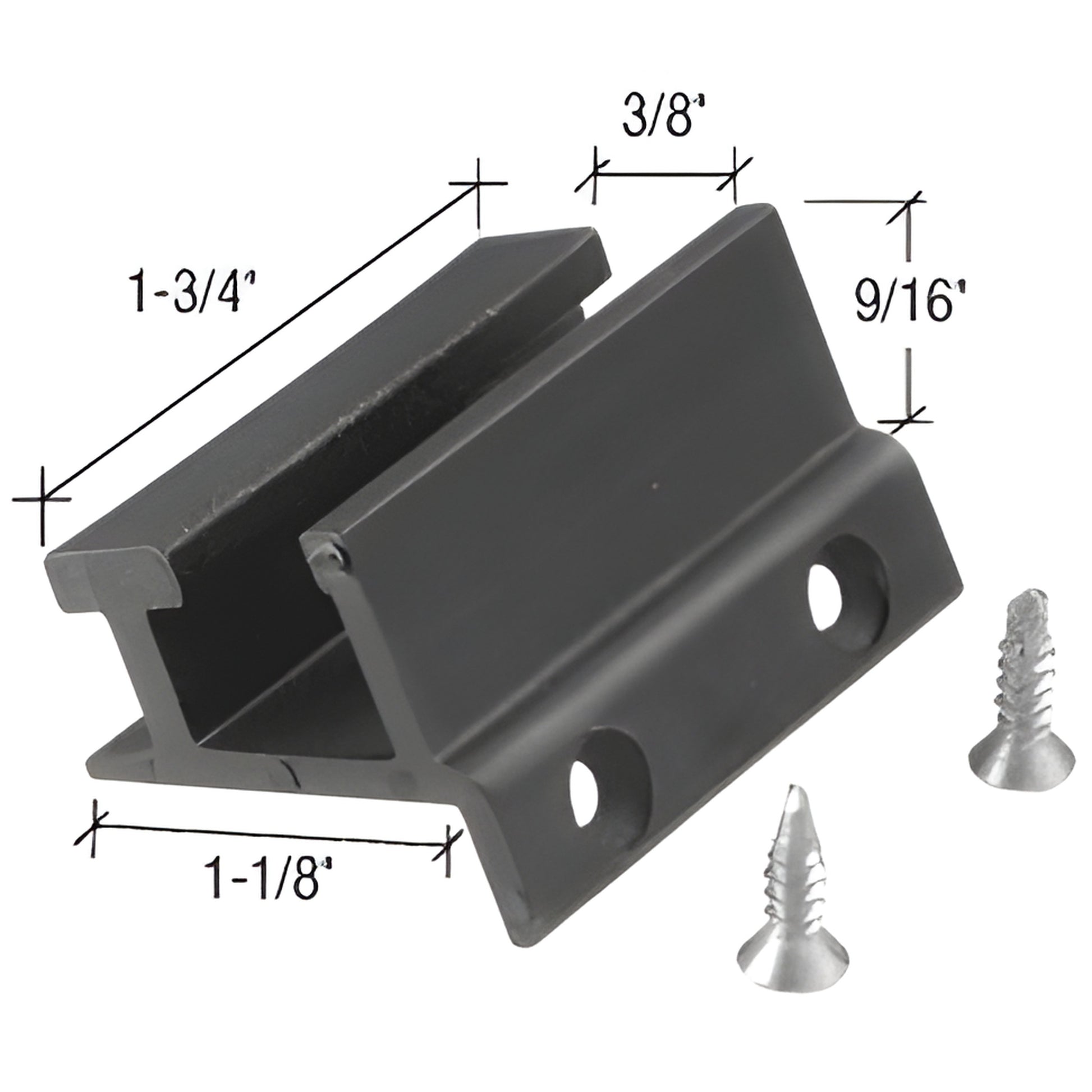

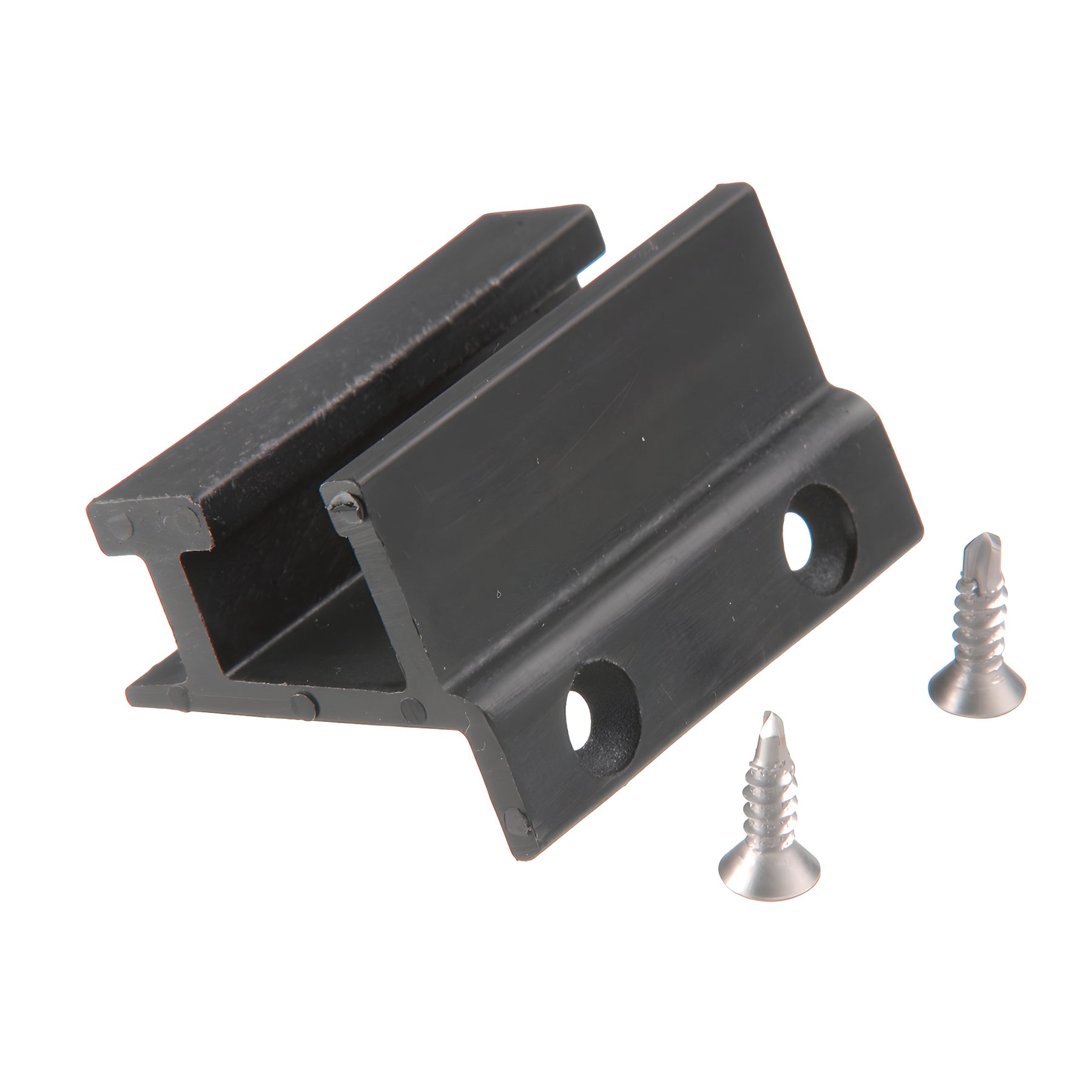

CRL 3/8" Replacement Bottom Guide for CK/DK Cottage Sliding Doors

• Designed for 3/8" (10 mm) Glass
• Use Monolithic Tempered Glass

CRL Bottom Guide for CK, DK, and EK Series Sliders — SKU: DK6938 components provide a versatile bottom guide solution for frameless sliding shower door systems. Use these extrusions with 1/4" (6 mm) or 3/8" (10 mm) glass to add panels, create multi-panel designer enclosures, or build a custom sliding unit by combining individual parts. Stock lengths include headers, header fillers, bottom sills, sidelite sills, side jambs, top hangers and related accessories.

Use these bottom guide components to construct a frameless sliding shower enclosure tailored to your opening. Provide a drawing of your shower opening and CRL Technical Sales — Shower Door Department can assemble a customized kit with everything required (glass and silicone not included).

These extrusions share identical profiles with the parts used in our standard kits. When wet-glazing a fixed panel with these components you add structural support and eliminate the need for vertical metal posts. Pair with the appropriate brackets and corners (Cat. Nos. BWB2, BHC90, BHC135, BHC373) to create multi-angle enclosures or wider inline units.

NOTE: Extrusions and associated hardware packages for multi-angle or wider inline enclosures must be ordered separately; they are not included in standard Frameless Sliding Shower Door Kits for inline enclosures.

SPECIFICATIONS:
Materials: Extrusions (Aluminum), Knob (Solid Brass), Towel Bar (Tubular Brass)
For Glass Thickness: 1/4" and 3/8" (6 and 10 mm) — Glass not included
Maximum Slider Size:
1/4" (6 mm) Glass: 60" W x 72" H or 72" W x 60" H;
3/8" (10 mm) Glass: 72" W x 80" H


Order SKU DK6938 or contact CRL Technical Sales to design a custom frameless sliding shower door solution today.
