Product Details
- Used to Stabilize Glass Facade
- For Use with 3/4" Tempered Glass
- Made of 316 Alloy Stainless Steel and Available in Brushed Stainless and Polished Stainless Finishes
- Use Monolithic Tempered Glass

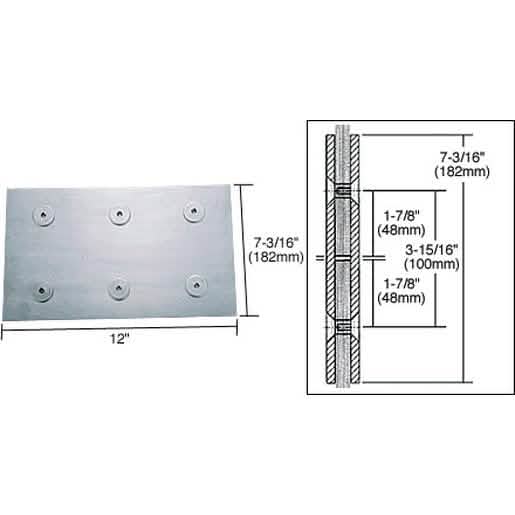

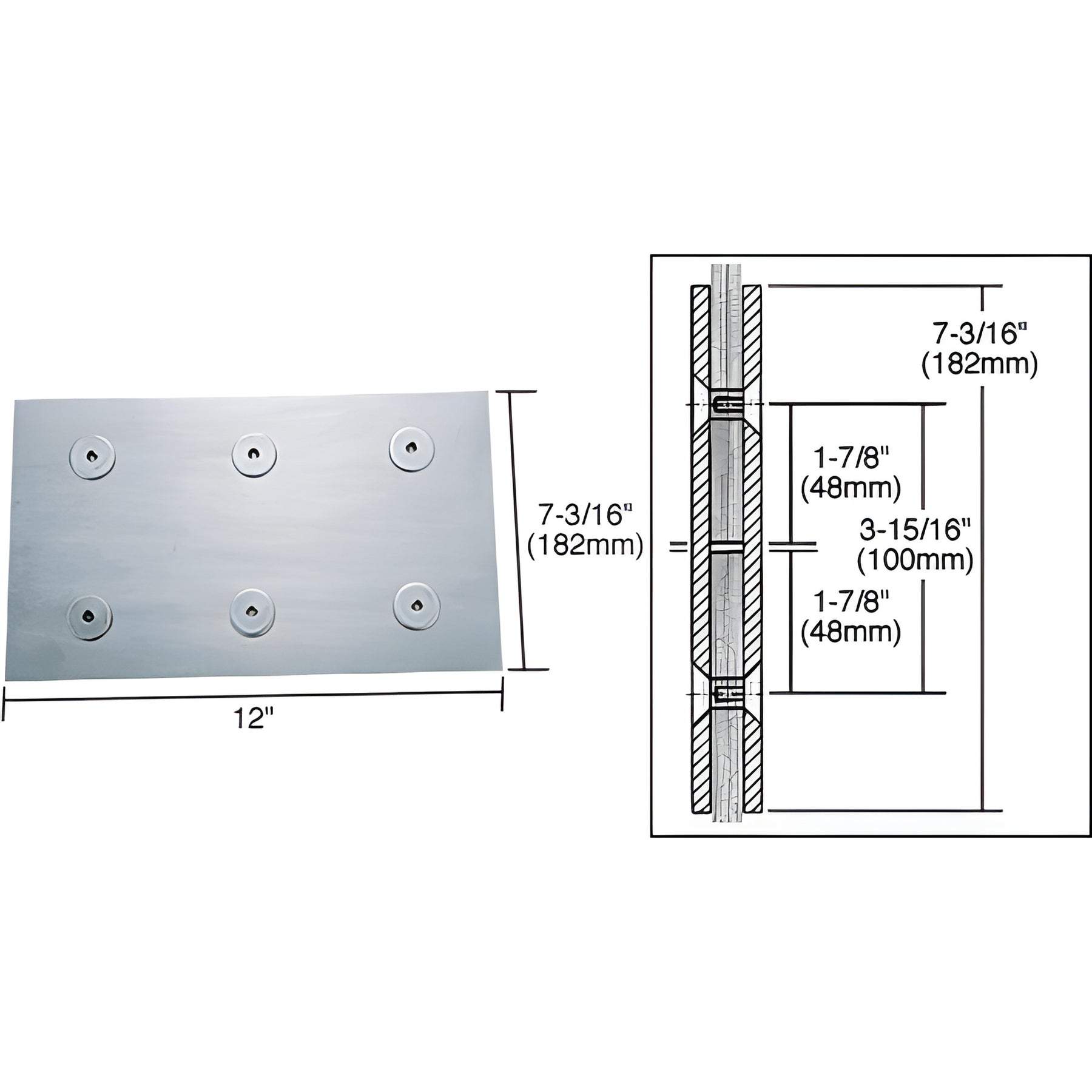

This CRL Fin Splice Fitting is designed to work with 3/4" (19 mm) glass. The Splice Fittings are used to stack multiple pieces of glass to construct extra tall fins used to stabilize the glass facade.
SPECIFICATIONS:
For Use With: 3/4" (19 mm) Tempered Glass
Do Not Use With: Annealed or Raw Glass
Glass Fabrication Required:
One 7/8" (22 mm) Diameter Hole Per Glass Fastening
Templates:
Available on Request for Each Fitting
Product Warning:
Do not use with annealed or raw glass.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
