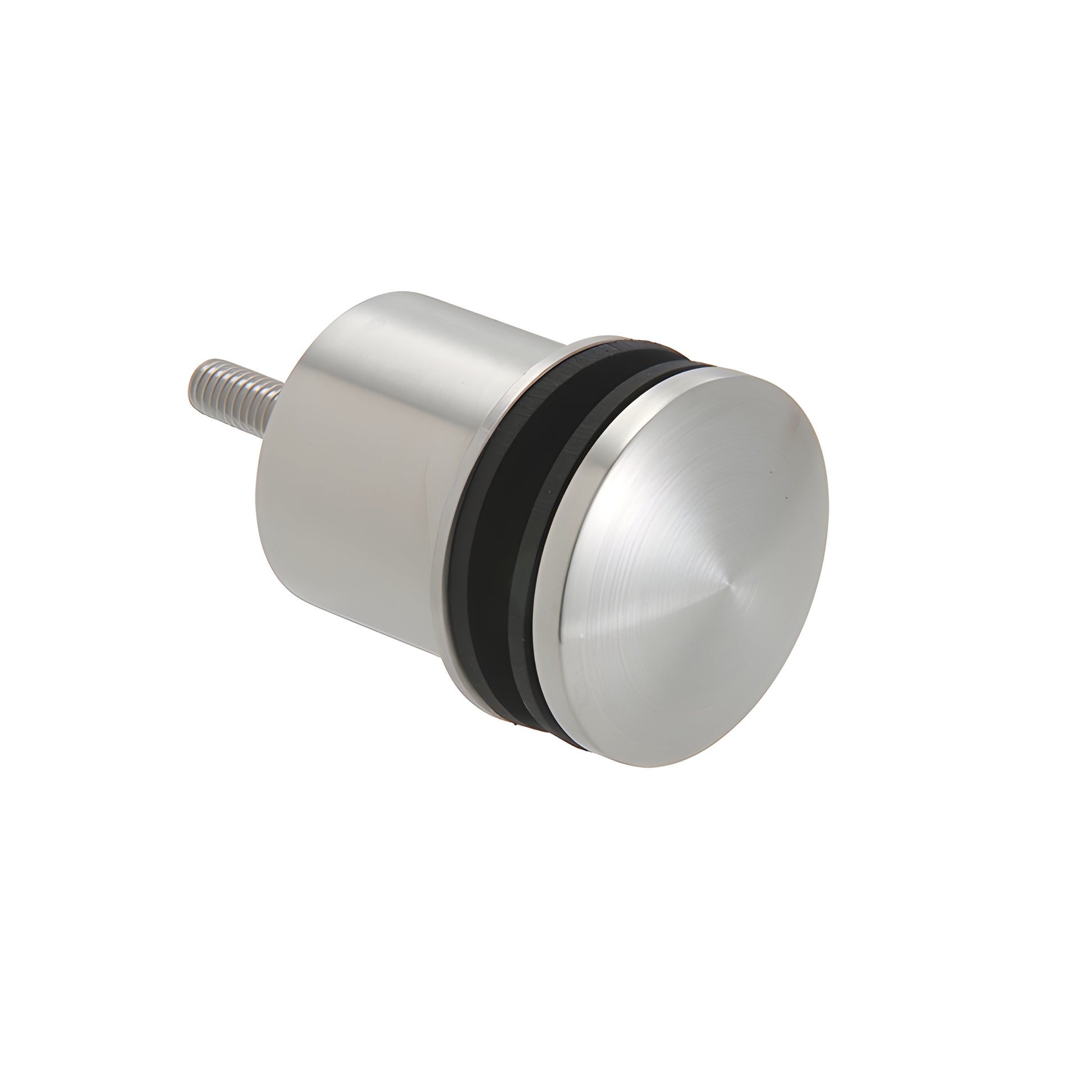

CRL 316 Brushed Stainless 2-3/8" x 1-3/4" Point Supported Standoff Base and Domed Cap

For optimal performance in glass hand rail or guard rail applications, the robust Point Supported Standoffs are suitable for use with 1/2" and 3/4" (12 and 19 mm) monolithic tempered glass, as well as 9/16" and 27/32" (13.52 and 21.52 mm) laminated tempered glass with Kuraray SentryGlas® Interlayer.

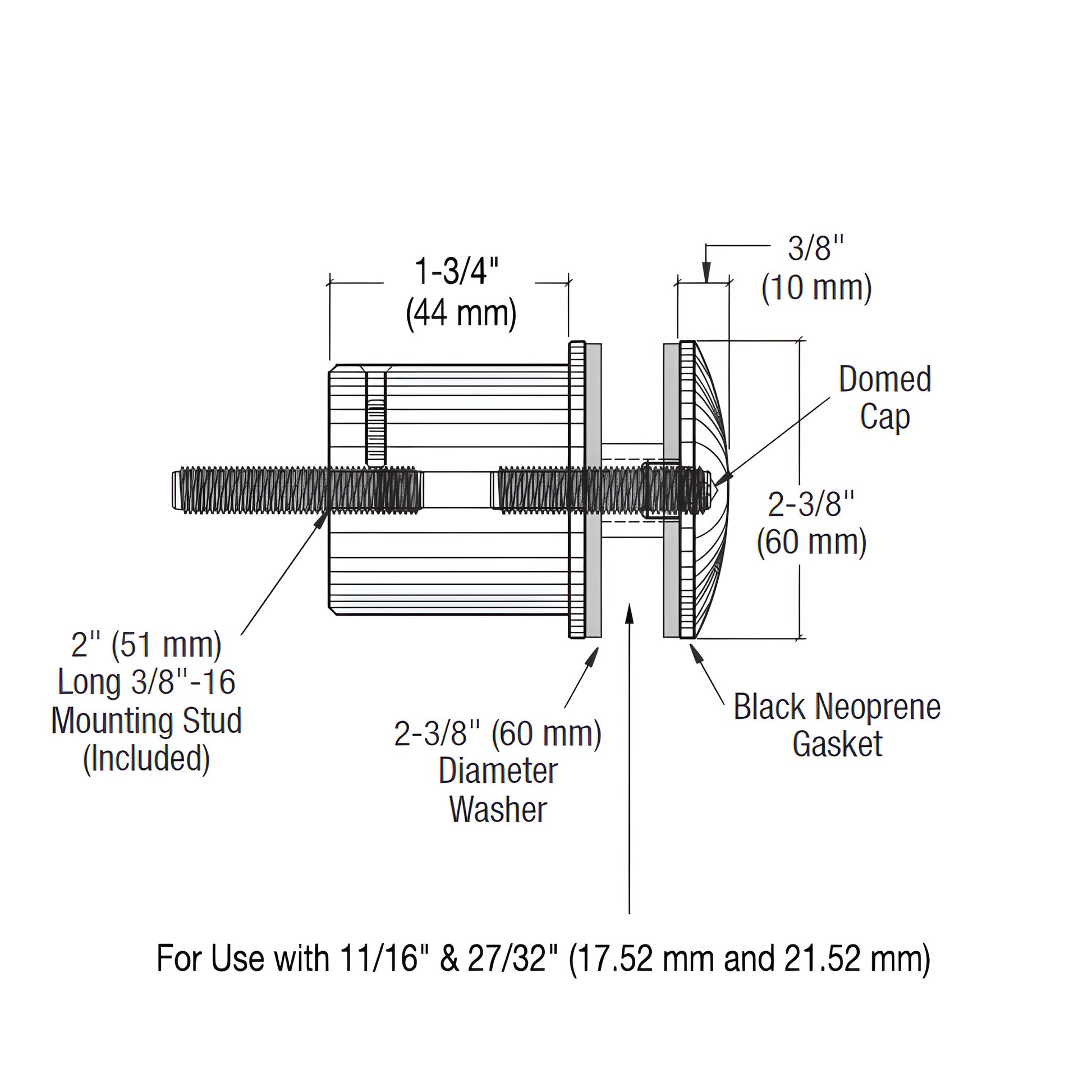

Crafted from high-grade 316 stainless steel alloy, the standoff fitting features a standard 2-3/8" (60 mm) diameter and 1-3/4" (44 mm) projection.
Custom lengths and diameters can be ordered, and it includes a 3/8"-16 x 2" (51 mm) Allen Stud for steel mounting, along with essential gaskets and grommets.
Additionally, attachment anchors for wood and concrete are available, ensuring versatile installation options.
For more information, consult the technical references on stainless steel maintenance to preserve its pristine finish.
